Home > Products > Ozone aging chamber > SM- Programmable Ozone Test Chamber for Rubber Material
SM- Programmable Ozone Test Chamber for Rubber Material
- SHENZHEN SHANGHAI TIANJING
- T/T Credit Card PayPal
You May Like
Product Details
| Place of Origin | Guangdong, China | Brand Name | SANWOOD | |
| Model Number | SM-CY | Power | Electronic | |
| Usage | Universal Testing Machine |
Product Description
SM- Programmable Ozone Test Chamber for Rubber Material
Ozone Simulator :The main factors of Rubber cracking is the content of ozone in the atmosphere
is little, Ozone aging chamber to simulate and strengthen the atmospheric ozone conditions, Study on
the effect of ozone on rubber, Rapid identification and evaluation of the method for the performance
of rubber anti ozone aging and the effectiveness of anti ozone agents. And then take effective measures to prevent aging. To improve the service life of rubber products.
Ozone Simulator : According to test methods and standards it can be divided into "static" and
"dynamic", Static refers to the sample is drawn up after the test box to do the test, Dynamic is to
put the sample in the test box of the fixture, Edge tensile test, The stretching of the floating is
measured by the sample itself around 5%-45%.
| Ozone test chamber | |
| Programmable Ozone Test Chamber Model | SM-150CY |
| Inner size(D*W*H)mm | 500*500*600 |
| Outside size(D*W*H)mm | 1250*950*1550 |
| Temperature range | 25℃~70℃ |
| Ozone concentration | 50~500pplm 100~500ppm |
| Temperature fluctuation | ±0.5℃ |
| Ozone control precision | ±10% |
| Sample frame speed | 360 degree rotating sample frame (speed 1 RPM) |
| Programmable Ozone Test Chamber Controller | Color LCD touch screen controller |
| Programmable Ozone Test Chamber Time unit | H.M.S. can choose the longest up to 9999H |
| Ozone concentration analysis | Import concentration analysis regulator 4 ~ 20mA output |
| Collection system | Imported South Korean import programmable logic controller |
| Heating system | Completely independent system, nickel chromium alloy electric heating type water heater |
| Ozone concentration | The ozone concentration sensor in the UK has a standard signal output and sampling. |
| Ozone generator | The silent discharge tube ozone generator has the characteristics of low noise and high purity. |
We have independent quality control department, each production process will pass through
the three test. If it is not qualified products, it will be returned to re-production.
Cost
PARTNERS AND SERVICE
AFTER SALES SERVICE
ALL OF OUR TEST CHAMBERS HAS ONE YEAR WARRANTY.
SANWOOD REPAIR THE EQUIPMENT IS UNDER THE ORDINARY USAGE AND ARISE ANY
HARDWARE PROBLEMS WHICH CAUSED BY PRODUCT ITSELF, RATHER THAN HUMAN
ERROR.
FIRSTLY, WE CAN PROVIDE THE SPARE PARTS WITH YOU. AND ALSO PROVIDE THE
SOLUTION ABOUT THE TROUBLE OF THE EQUIPMENTS.
SECONDLY, PLEASE SEND BACK THE EQUIPMENT, WHICH WILL BE REPAIRED BY OUR
COMPANY.
LASTLY, WE WOULD LIKE TO APPOINT OUR TECHNICAL ENGINEER TO YOUR COMPANY
TO REPAIR THE EQUIPMENT.
1.Do you have any advantages in Programmable Ozone Test Chamber ?

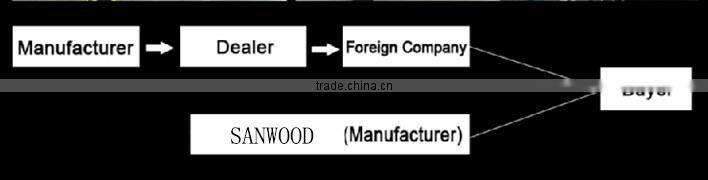

SANWOOD has 8000 production bases in Dongguan, China. Factory direct sales, can reduce the cost of agency for you.
2.May I ask you how do you deliver Programmable Ozone Test Chamber?
We have so many ways of Programmable Ozone Test Chamber delivery, such as FOB, CIF,etc.
3.Is there a variety of language options for your operating system?
We use Korea SAMWON controller system, it has Russian, English, Chinese, Korean and other languages.
4. How long is the warranty period of your Programmable Ozone Test Chamber ?
We provide free parts replacement service for resories with one year.
5. When will you give a respond if your Programmable Ozone Test Chamber break down?
We will give you guidance by video conference when we receive your need of requirement.

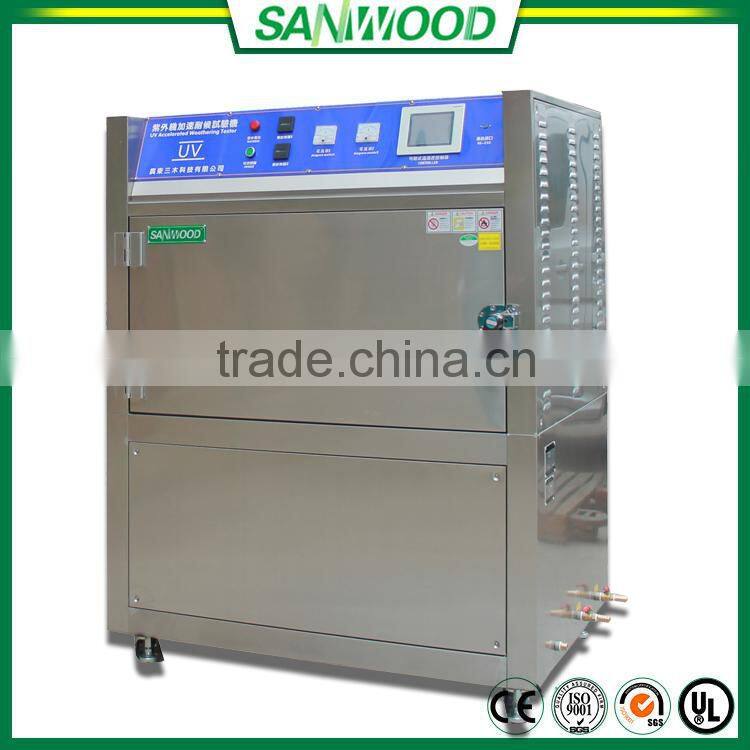

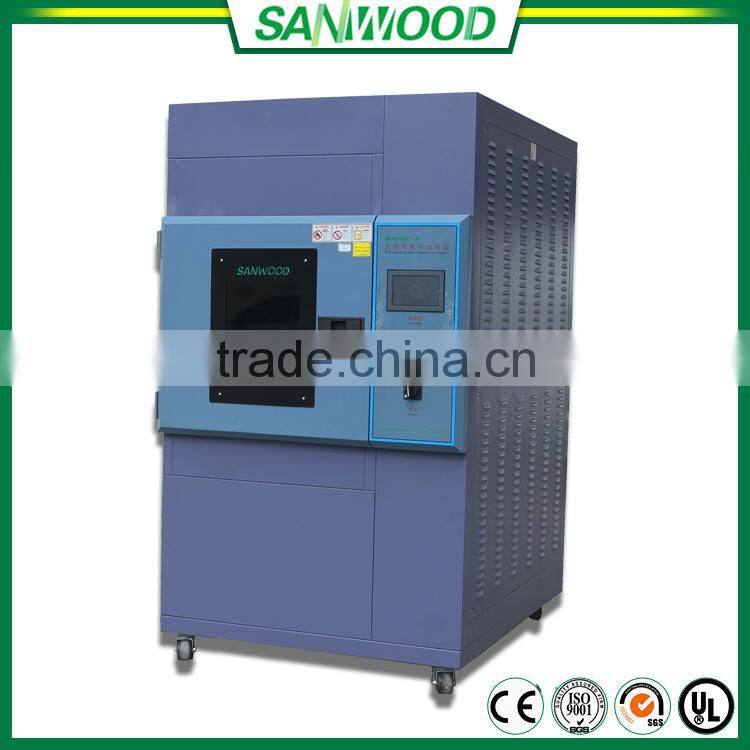

UV test chamber xenon test chambers environmental chamber
The above is " Programmable Ozone Test Chamber " items, Please contact us freely, we are always here to support you. If you have any question,we can have a talk. We are partner, thank you! = =)
