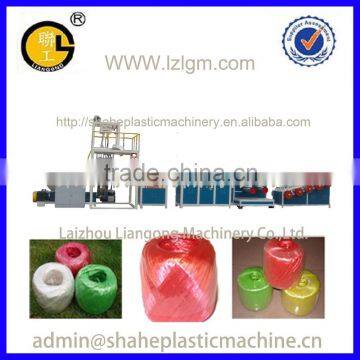

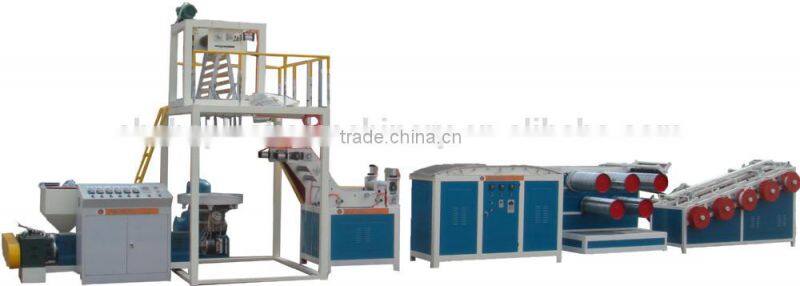

Plastic Vertical blow film machine/rope making machine/plastic rope machine
- Qingdao port
- T/T
You May Like
-
pp belt packaging machine
-
PVC fiber reinforced pipe production line/pipe making machine/PVC pipe production line
-
PPR pipe production line/pipe making machine/ppr pipe extrusion line
-
PP-R pipe making machine
-
PVC hose machinery
-
PVC plastic spiral reinforced Pipe production line/plastic pipe production line/PVC pipe production line
Product Details
| Condition | New | Application | Film | |
| Plastic Processed | PP | Screw Design | Single-screw | |
| Automatic Grade | full automatic | Place of Origin | Shandong, China | |
| Brand Name | Liangong | Model Number | LGSJ-80 | |
| Voltage | 380V | Power(W) | 50KW | |
| Dimension(L*W*H) | 6m*1.6m*2.5m | Weight | 3T | |
| Certification | CE/BV | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
LGSJ-80 Air cooling vertical tearing film extrusion configuration
1, LGSJ-80/28 Extruder
Screw rotated speed 0~70r/min
1.1,Speed changing box
Harden Gear international
Reducer Model ZLYJ173
1.2, Screw and screw tube parameters
Screw diameter Φ80mm
Screw L/D 28/1
Screw material 38CrMoAlA
Screw structure Mixing rubber type
Heat treatment Nitriding treatment
Surface hardness HV940~1050
Nitriding depth 0.6~0.7mm
1.3, Screw tube heating, cooling parameters
Screw tube heating Aluminum heater three-section 15KW
1.4, The main motor parameters
Motor power 18.5kw
Speed adjustment way Frequency control of motor speed
1.5, Electric control
Temperature control table Yuyuan Intelligence
Low-voltage CHINT
2, Extrusion Die
Die diameter 300mm
Heating power 2.5kw
3, Tractor
Tractor height 3500mm
Plastic roller length 900mm
Motor Model Y90L-4
Motor Power 1.5kw
Speed adjustment mode Frequency control of motor speed
4,Cutting machine
Plastic roller length 800mm
Motor Model Y90L-4
Motor Power 1.5kw
Speed adjustment mode Frequency control of motor speed
5, Heating plate
Heating plate power 14kw
Heating plate length 2000mm
6, Drafting machine
Motor Model Y112M-4
Motor Power 5.5kw
Speed adjustment mode Frequency control of motor speed
7,10 Station double friction rolling machine
Drive model double friction
Motor model Y112M-4
Motor power 4kw
Oscillating motor model Y90L-4
Motor power 1.5kw
Speed adjustment mode Frequency control of motor speed
8,Summary
Production capacity 50-70kg/h
Three-phase 380V 50HZ 50KW
