Home > Products > New Products > Led Home Lighting, Led Down Light, For Home
Led Home Lighting, Led Down Light, For Home
- Shenzhen
- Credit Card
You May Like
Product Details
| LED Light Source | 5730 | Warranty(Years) | 3 | |
| Input Voltage(V) | AC100~240 | Lamp Power(W) | 25 | |
| Lamp Luminous Flux(lm) | 2000 | Lamp Luminous Efficiency(lm/w) | 80 | |
| Color Temperature(CCT) | Other, WW/NW/CW | Working Temperature(℃) | -20, 40 | |
| Working Lifetime(Hour) | 30000 | Lamp Body Material | Aluminum | |
| IP Rating | Other, IP20 | Certification | CE | |
| Model Number | YL-TYW5B-CE | Place of Origin | Guangdong, China | |
| Brand Name | YILI |
Product Description
Specifications
Led Home Lighting*No UV and radiation
*Passed LM80 test,Ra>80,SCD<6 80Lm/W
* External power supply,CE & ROHS
Feature:

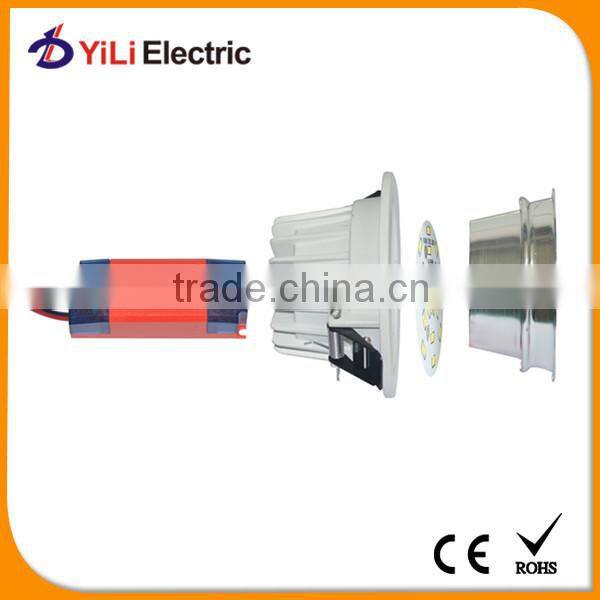

*. Adopting the die-casting aluminum body heat combined with PC cover
Paint the surface of the cup body process, Strong sense of touch and a sense of perspective
Downlight white paint process is match with ceiling and wall colors
*. Quick light up, no flicker
*. No UV and radiation
*. Low power consumption, energy and money saving
* .No pollution, recyclable. Conforms to the green energy conservation and the RoHS standard
*. LED passed LM80 test,Ra>80,SCD*.Support the thyristor dimmer(The dimming range 10% ~ 100%)That move light smooth without stroboscopic;
*. Embedded installation, convenient and simple and easy, strong
| Specification | YL- TYW3B-CE | YL- TYW5B-CE | YL- TYW7B-CE | YL- TYW9N-CE | YL-TYW12N-CE | YL-TYW18N-CE | YL-TYW21N-CE | YL-TYW24N-CE | YL-TYW35N-CE | |||
Watt(W) | 3 | 5 | 7 | 9 | 12 | 18 | 21 | 24 | 35 | |||
Lumens(lm) | 240 | 400 | 570 | 730 | 980 | 1500 | 1800 | 1950 | 2850 | |||
The size of holes(mm) | 75 | 85 | 100 | 115 | 145 | 175 | 180 | 205 | 260 | |||
Beam Angle(deg) | 60~80 | 60~80 | 60~80 | 60~80 | 60~80 | 60~80 | 60~80 | 60~80 | 60~80 | |||
| CCT(K) | 3000~6000 | 3000~6000 | 3000~6000 | 3000~6000 | 3000~6000 | 3000~6000 | 3000~6000 | 3000~6000 | 3000~6000 | |||
CRI(Ra) | >80 | >80 | >80 | >80 | >80 | >80 | >80 | >80 | >80 | |||
| Energy Efficiency Classes | A+ | A+ | A+ | A+ | A+ | A+ | A+ | A+ | A+ | |||
PF | ≥0.85 | ≥0.85 | ≥0.85 | ≥0.85 | ≥0.85 | ≥0.85 | ≥0.85 | ≥0.85 | ≥0.85 | |||
Voltage(V) | AC100-240 | AC100-240 | AC100-240 | AC100-240 | AC100-240 | AC100-240 | AC100-240 | AC100-240 | AC100-240 | |||
| Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | |||
| Lifespan(hrs) | 25000 | 25000 | 25000 | 25000 | 25000 | 25000 | 25000 | 25000 | 25000 | |||
Working Temperature | -20~40 | -20~40 | -20~40 | -20~40 | -20~40 | -20~40 | -20~40 | -20~40 | -20~40 | |||
| Storage Temperature | -20~85 | -20~85 | -20~85 | -20~85 | -20~85 | -20~85 | -20~85 | -20~85 | -20~85 | |||

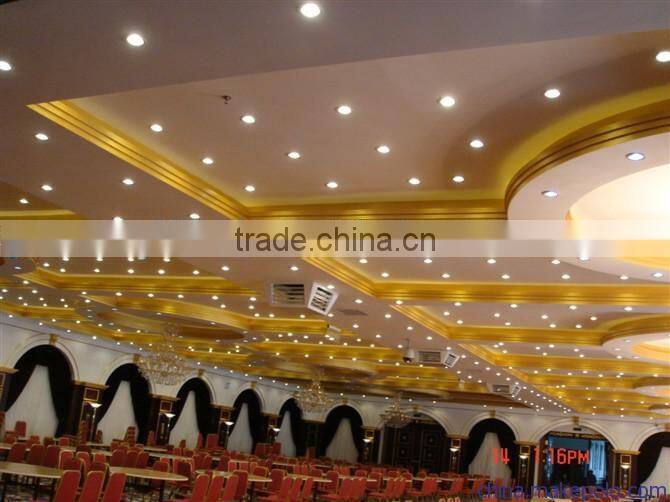

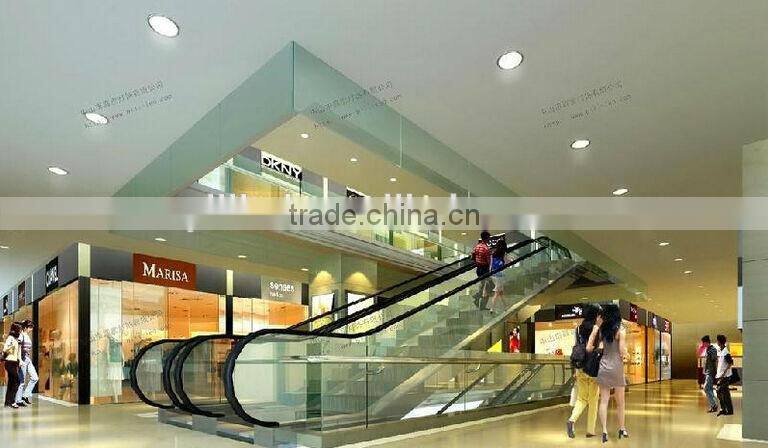

APPLICATION FOR LED DOWN LIGHT
*. Commercial lighting, environmentally friendly lighting, warehouse, supermarket and home illumination.
*. IT, call centers, shopping malls and Exhibition Hall, art gallery, the hospital hoteland other public places.
*. Exhibition Hall, art galleries, museums, offices, readingroom, corridor, staircase lighting, such as contour range
Comparison with Normal Down Light
*.Structure optimization, strength and heat dissipation is improved significantly;
*.The whole luminous efficiency flux nearly 30% higher, on average 90lm/W.
*.No dark area, No Flickering, Shining smoothly.
*.Light and grace, easy to install and remove.
*.The light body is thin, easy for installation
CE and RoHs all passed
What is the advantage of our led down light ?
1.Passed CE&RoHS certification
2. Epistar / Osram / Cree / Samsung LED chip, LM80 list
3. Isolated Power Supply inside, SCD<6,
4.Environment-friendly and no UV or IR radiation.
Shipping
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.
1. Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery.
2. MOQ: 100pcs
3. Warranty : 3 years
Shenzhen Yili Electric Co., Ltd.,which is focusing on R&D and brand management,is a high-speed development and innovative LED tube ,LED bulb ,LED spotlight ,LED flood light ,LED high bay ,LED PAR30 ,LED commercial lighting company. The company is committing to shift “Made in China” to “Created in China”.Relying on China's Pearl River Delta’scomplete LED industrial chain, Shenzhen Yili Electric Co., Ltd. has established the research & development and production base in Taiwan, Hong Kong, Shenzhen and Shanghai,and ultimately developed the formation of Taiwan R & D,which is the complementary architecture of Chinese manufacturing
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your inquiries in fluent English
3. OEM&ODM, any your customized lightings we can help you to design and put into product.
4. Monthly output over 50, 000PCS.
5. Single package in Gift Boxes
Why Choose us?
1.We are a factory manufacturing led indoor lamps,best production capability ,best quality control, Best Service .
2.Inspected by the Inspection Institution of Bureau Veritas Certification.
3.100% QC inspection Before Shippment.
4. CE/UL/FCC listed,competitve price.
