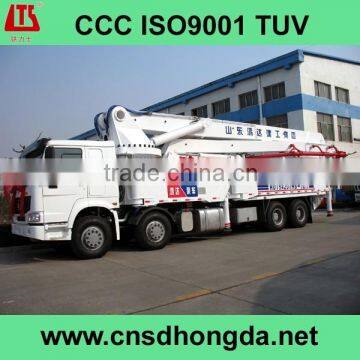

High Efficiency Low Price HDT5401THB-48/5 New Concrete Pump Truck on Sale
- Qingdao
- T/T
You May Like
-
2015 New Designed Environmental HDT5070ZXX Movable-bin Garbage Truck
-
High Efficiency HONGDA Movable Garbage Bin
-
Famous Trademark of China TLS Brand Rotary Drilling Rig for Sale
-
Rotary Drilling Rig HDR230 20-40-60m (piling Machinery)
-
Excellent Performance! Rotary Drilling Rig HDR230 for Sale
-
Excellent Performance! HDR200 Rotary Drilling Rig With CCC/ISO9001/TUV Certificate on Sale
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Shandong, China | Brand Name | TLS(Iron Giant) | |
| Model Number | HDT5401THB-48/5 | Power(W) | 275kw | |
| Weight | 40t | Dimension(L*W*H) | 13300mm*2500mm*4000mm | |
| Certification | CCC,ISO9001,TUV | Warranty | 12 months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
High Quality Low Price HDT5401THB-48/5
new Concrete Pump Truck on Sale
TLS(Iron Giant), Famous Trademark of China
CCC/ISO9001 Approved
I.Main Technical Parameters of new Concrete Pump Truck
Items | Unit | Parameters | |
HDT5401THB-48/5 | |||
Main Technical Parameters in | Theoretical Pumping Capacity | m3/h | 125 |
Pumping Capacity Index | Mpa.m3/h | 586 | |
Theoretical Pumping Pressure | Mpa | 8.5 | |
Hopper Capacity | L | 700 | |
Feeding Height | mm | 1400 | |
Distributing Valve Form |
| S-pipe valve | |
Max. Distributing Radius | m | 43.7 | |
Max. Distributing Height | m | 47.7 | |
Max. Distributing Depth | m | 34.3 | |
Height of Distributing Boom When Stretched | mm | 9065 | |
Distance between Front Landing Legs | mm | 9780 | |
Distance between Rear Landing Legs | mm | 9860 | |
Distance between Front and Rear Landing Legs | mm | 9470 | |
Diameter of Conveying Pipe | mm | 125 | |
Length of Tail Hose | m | 3 | |
Rotary Range of Distributing Boom |
| 365° | |
Number of Boom Sections |
| 5 | |
Rotary Angle of Each Boom Section | ° | 91/180/180/180/270 | |
Close-control Distance | m | 33 | |
Remote-control Distance | m | 200 | |
Main Technical Parameters in | Max. Traveling Speed | km/h | 85 |
Min. Turning Radius | mm | 12000 | |
Brake Distance | m | 10 | |
Approach Angle | ° | 16 | |
Departure Angle | ° | 11 | |
Chassis Model |
| HOWO ZZ5437S4667C SINOTRUCK Engine | |
Wheel Base between the First and the Second Axle | mm | 1800 | |
Wheel Base between the Second and the Third Axle | mm | 4600 | |
Wheel Base between the Third and the Fourth Axle | mm | 1350 | |
Front Tread | mm | 2022 | |
Rear Tread | mm | 1830 | |
Max. Engine Power | kw | 275(2200r/min) | |
Max Engine Torque | n.m | 1500 /(1100~1600 r/min) | |
Max. Grade Ability | % | 37 | |
Fuel Consumption Limit | L/100km | 40 | |
Overall Dimension (L ×W× H) | mm | 13300×2500×4000 | |
Full-load Total Weight | kg | 40000 | |

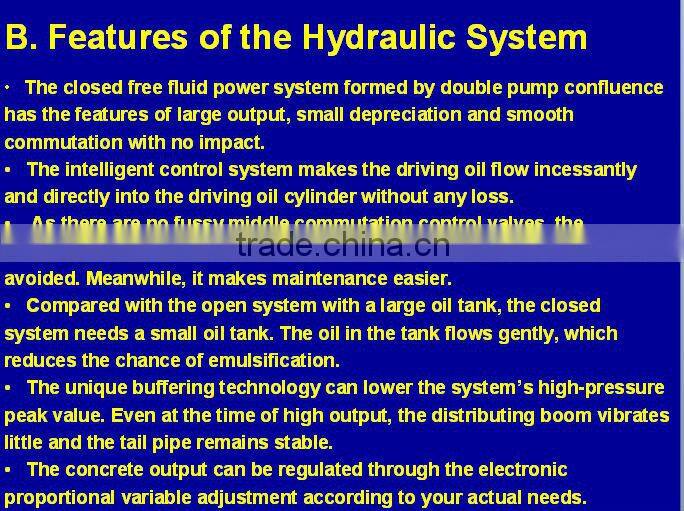

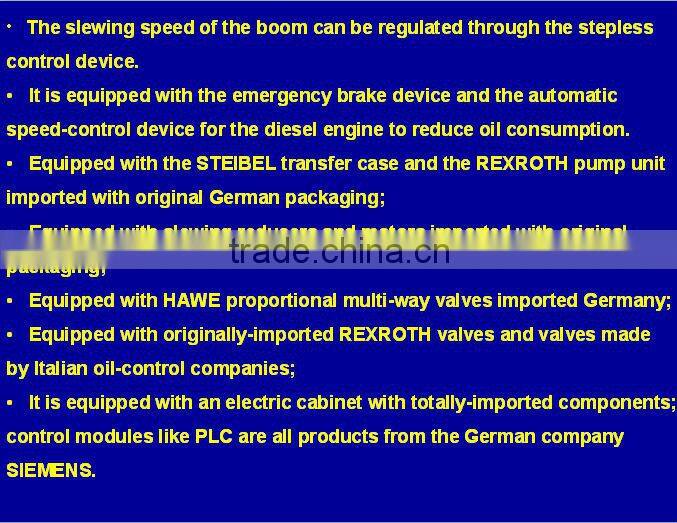

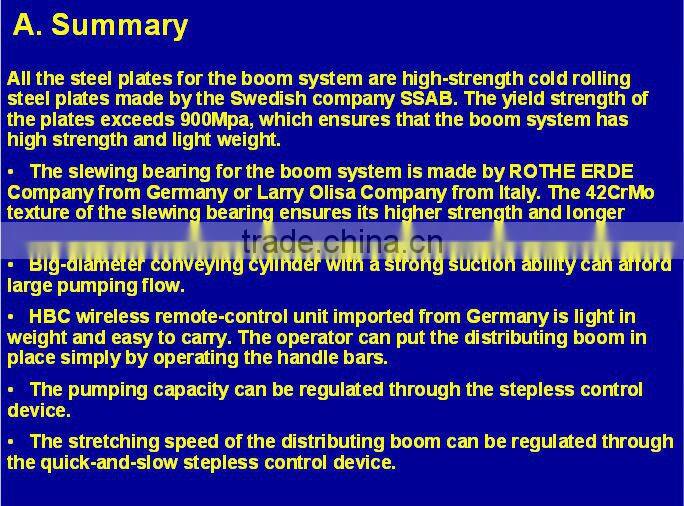

II.Brief Introduction to new Concrete Pump Truck

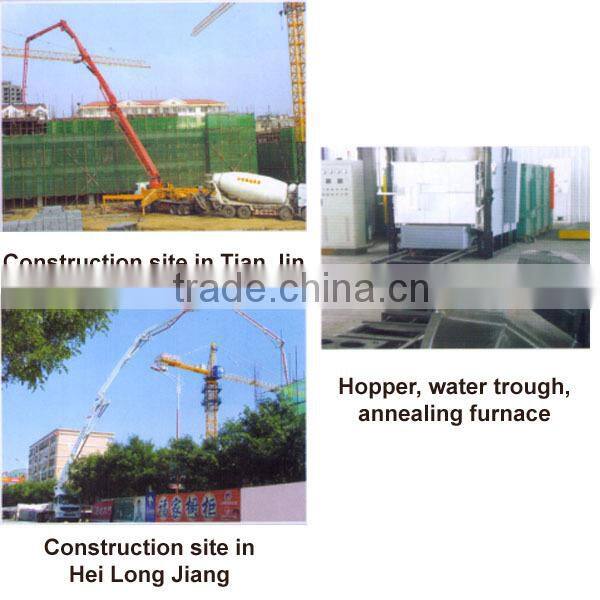

III.Detail Pictures of new Concrete Pump Truck
IV.Introduction to Our Company
Our main products cover 12 series with more than 80 varieties, such as:
1. Tower Cranes (3T-25T, stationary, mobile, outside-climbing, inside-climbing, horizontal-jib, luffing-jib, hammer-head, flat-top, multi-speed, stepless-speed);
2. Construction Elevators (multi-speed, stepless-speed);
3. Concrete Mixers (rotary-drum-type, double-horizontal-shaft);
4. Concrete Batchers;
5. Concrete Mixing/Batching Plants (25-480m3/h, stationary, mobile, conventional-type, compact-type, simple-type, commercial-type);
6. Concrete Truck Mixers (6-16m3);
7. Truck-mounted Concrete Pumps (diesel, electric);
8. Trailer-mounted Concrete Pumps (diesel, electric);
9. Concrete Pump Trucks (with 24-52m booms);
10. Asphalt Mixing Plants (40-320t/h, stationary, mobile, oil-burning, gas-burning, coal-burning);
11. Stabilized Soil Mixing Plants;
12. Rotary Drilling Rigs...

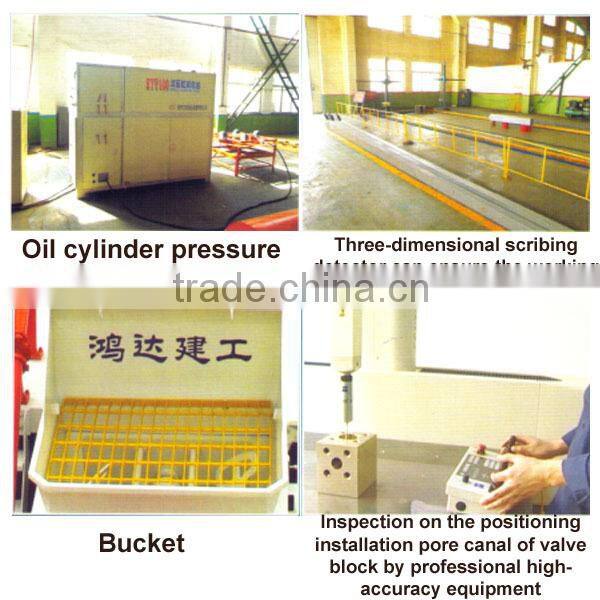

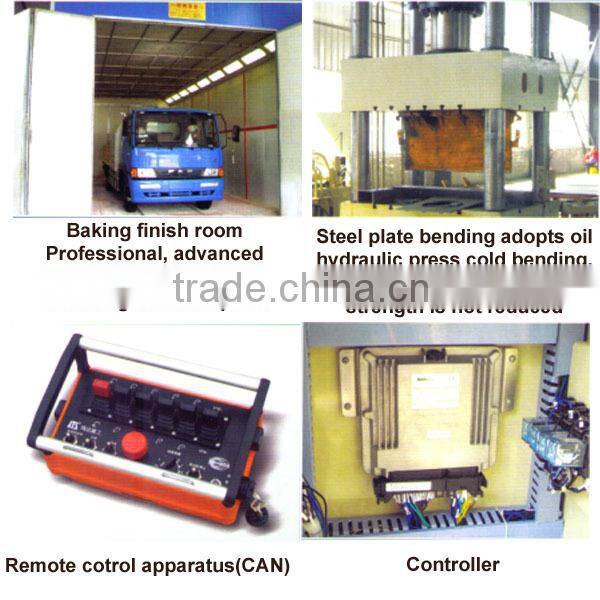

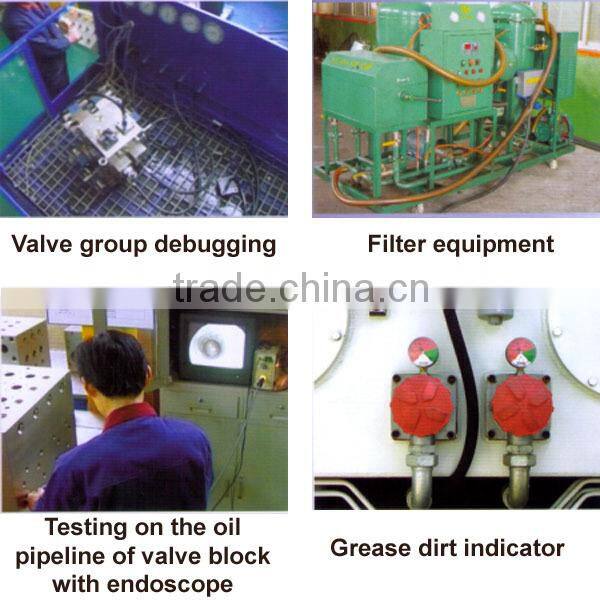

Quality Control (QC)
Third Control
ISO9001:9001 Certificate
European Certificate
Enviroment Protection Design
Corporate Culture
ENTERPRISE TENET: All for clients, all from clients.
ENTERPRISE GOAL: Try our best for perfectness.
BUSINESS PRINCIPLE: Focusing on people first, Doing business honestly, Sticking to win-win development firmly.
BUSINESS POLICY: Arming engineering machinery with high technology, Upgrading traditional industry with high quality, Promoting the updating of traditional industry with all our efforts.
CULTURE SPIRIT: Never complain, always look for a better way, always prepare to get a chance. Innovation is essential to the development of an enterprise and even a nation. Every one of HONGDA Group is an image ambassador of our enterprise, To be an upright person in all seriousness,to be a good worker without ostentation.
V.Our Services
Why Choose TLS?
Reply in first time
Arrange production in first time
Effect transportation in first time
Solve problem in first time
R&D Technical Support
We have a professional R&D team for research and development of new techniques and products. We can design and adjust the machines according to customers’ requests.
Professional engineers, technical support on installation and training overseas are available.
Before Sale Service
Before sales, we provide our customers with professional solutions on New Concrete Pump Truck according to customers’ situations.
After Sale Service
Turn-Key Solutions
Free Erection & Commissioning Service
Operation Training Service
Spare Parts Supply ( all working life )
You are warmly welcomed to visit our products! Our web page
If you have any question, please feel free to contact us.
You can send email to salesat,
or you can call us +86 535 7287987
or fax to us +86 535 7287987 any time!
