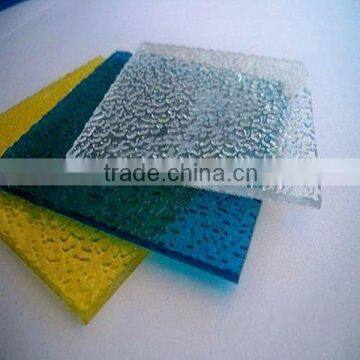

foshan tonon polycarbonate panel manufacture polykarbonat embossed board made in China (TN1436)
- Guangzhou / Shenzhen / Foshan
- T/T Credit Card
You May Like
-
policarbonate panel supplier plastic plate with high quality (TN2064)
-
foshan tonon polycarbonate sheet manufacturer pc embossed policarbonate panel made in China (TN0279)
-
foshan tonon polycarbonate sheet manufacturer pc embossed policarbonate plate made in China (TN0280)
-
foshan tonon polycarbonate sheet manufacturer pc embossed policarbonate sheeting made in China (TN0281)
-
foshan tonon polycarbonate sheet manufacturer pc embossed policarbonate rubber made in China (TN0282)
-
foshan tonon polycarboante panel manufacture diamond policarbonate board made in China (TN0328)
Product Details
| Place of Origin | Guangdong, China | Brand Name | TONON | |
| Model Number | TN01436 |
Product Description
| Features Of Foshan Tonon Bayer Polycarbonate Board |
1. Light Transmission The light transmission reaches 12%-82% depending upon colour and thickness. |
2. Thermal Insulation Proprietary hollow form contributes to reduce the energy consumption and therefore energy costs. |
3. Fire Retardancy According to GB8624-1997, the fire retardant classification of TONON project sun sheet is B1. |
4. Impactresistance Its outstanding toughness offers greater protection against breakage during transportation, installation and usage. The impact strength is 10-27 times as much as plexiglass. |
5. UV-Protection Attributing to the proprietary UV surfaces. Remain perfect mechanical and optical properties after exposed to extreme weather for a long time. |
6. Sound Insulation The hollow from and polycarbonate resin offer significant advantage to the sound insulation. |
7. Weatherability It have good weather ability can maintain excellent properties in a wide temperature range form -40 °C to 120 °C. |
8. Easy installation Easy installation can be cold bent. |
Specificatioing of Foshan Tonon Bayer Polycarbonate Board
| Thickness | Weight | Length | Width | Min Curving | Light transmission%( ± 3%) | |||||
| mm | kg/ sqm | mm | mm | mm | Clear | Opal | Blue | Lake-blue | Brown | Light-green |
| 4 | 1 | 6000 | 2100 | 700 | 80 | 57 | 45 | 55 | 55 | 45 |
| 6 | 1.4 | 6000 | 2100 | 1050 | 79 | 56 | 36 | 50 | 53 | 42 |
| 8 | 1.5 | 6000 | 2100 | 1400 | 78 | 52 | 30 | 47 | 51 | 40 |
| 10 | 1.7 | 6000 | 2100 | 1750 | 77 | 44 | 25 | 42 | 48 | 35 |
Technical features of Foshan Tonon Bayer Polycarbonate Board
| No. | Characteristics | Unit | Data |
| 1 | Impact Strength | J/m | 850 |
| 2 | Light Transmission | % | 88 |
| 3 | Specific Gravity | g/cbm | 1.2 |
| 4 | Coefficient of Thermal Expansion | mm/m °C | 0.065 |
| 5 | Service Temperature | °C | -40 °C ~+120 |
| 6 | Heat Conductivity | W/ sqm * °C | 2.3~3.9 |
| 7 | Tensile Strength | N/sqmm | ≥ 60 |
| 8 | Flexural Strength | N/sqmm | 100 |
| 9 | Modulus of Elasticity | Mpa | 2400 |
| 10 | Tensile Stress at Break | Mpa | ≥ 65 |
| 11 | Elongation at Break | % | >100 |
| 12 | Specific heat | KJ/kg*k | 1.17 |
| 13 | Heat Deflection Temperature | °C | 140 |
| 14 | Effect of Soundproof | 10mm PC Hollow Sheet | Attenuation 20 db |
| Applications of Foshan Tonon Bayer Polycarbonate Board |
| 1) Roofing for swimming pool, shopping malls, commercial streets. |
| 2) Sunshade for stadiums and bus stops, gazebo, open-air carport. |
| 3) Lighting canopy for corridors,passages and subway entries. |
| 4) Flashing for bank ATMs, telephone box, gateways, garages. |
| 5) Sound and heat insulation wall for expressways and houses. |
| 6) Heat preservation material for agricultural greenhouse, flower greenhouse. |
| 7) Soundproof material for partitions. |
| 8) Unbreakable material for glazing windows, roof glazing. |
Our Factory Location:
Note: Foshan, a city where is near Guangzhou Port in Guangdong Province, China.
| Clean And Maintenance: |
| In case there is any filler, grease or paint adhered or polluted the surface of the pc sheet, remove it with a piece of soft cloth soaked with alcohol it become hardening. Never use the benzene, gasoline, acetone or carbon tetra chloride of cleaning, do not clean the sheet with any solvent exposed under direct sunshine or under forced bending, for it may crack. Generally wipe off the dust and dirt on the pc sheet by a piece of soft cloth or sponge soaked with neutral detergent first, rinse it with clear water thoroughly, and dry it with a piece of soft cloth finally. |
| To Clients and Readers: |
| This information and our technical advice whether verbal, in writing or by way of trails are given in good faith but without warranty, and this also applies where proprietary rights of third parties are involved. Our advices does not release you from the obligation to check its validity and to test our products to their suitability for the intended process and uses. The application, use and processing of our products and the products manufactured by you on the basis of our technical advice are beyond our control, therefore, entirely you own responsibility. Our products are sold in accordance with the current version of our General Conditions of Sales and Delivery. |
Length: not limited
Max width: 2100mm
Thickness: from 1mm to 18mm
Material: Makrolon Polycarbonate resin from Bayer, Germany
Product line: 4 lines for hollow polycarbonate board and 4 lines for solid polycarbonate board.
Customized colors and dimensions available upon request contact us!
