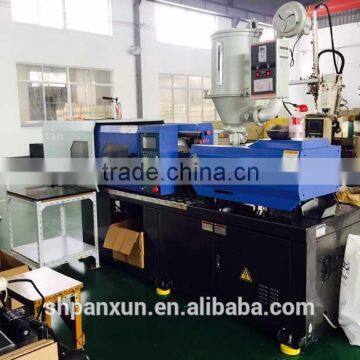

Elevator button parts injection molding machine
- Ningbo
- T/T
You May Like
Product Details
| Condition | New | Type | Preform Injection | |
| Style | Horizontal | Brand Name | ZLX | |
| Model Number | ZLX140 | Place of Origin | Zhejiang, China | |
| Plastic Type | Thermoplastic | Automatic | Yes | |
| Injection Weight | 227g-291g | Injection Rate | 0-185 | |
| Clamping Force | 1400KN | Opening Stroke | 350MM | |
| Power(W) | 13KW | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Company Profile :
Ningbo Yinzhou zhengli plastic machinery co.,ltd .is located in ningbo city , zhengjiang province . ZHENGLI brand injection molding machine is equipped with world first-class hydraulic pressure , electric equipment and controlling systerm which introduces the European style of design idea and supplies the high standard products and services for the customers through strict testing assembling and adjustment .
Maintaining the moderate scale of production throughout , ZHENGLI company makes every effort to develop with steady steps and completes every machine diligenting adhering to the enterprice idea of " working side by side with the customers , helping the customer to solve the problem ,for customer creation value" . we research and development production of ZLX-JB ,ZLX-JD , ZLX-PET , ZLX-PVC etc .Plastic injection machines .
By reason of honest effective work style ,outstanding quality ,professional services and fine technical guarantee, ZHENGLI company hopes to creat glorious future hand in hand with the customer all though the world ,we thank friends from all walks of life who care support ZHENGLI machine by good performance -to - price ratio of production !
Specification | ZLX140 | ||||
A | B | C | |||
INJECTION UNIT | Screw Diameter | mm | 42 | 45 | 48 |
Screw L/D Ratio | L/D | 20.5 | 19.1 | 48 | |
Theoretical Shot Volume | cm3 | 250 | 285 | 320 | |
Injection Weight | g | 227 | 258 | 291 | |
Mpa | 171 | 148 | 131 | ||
Injection Pressure | |||||
Screw Speed | Rpm | 0-185 | |||
CLAMPING UNIT | Clamp Tonnage | KN | 1400 | ||
Toggle Stroke | mm | 350 | |||
Space Between Tie Bars | mm | 415*375 | |||
Max.mold Height | mm | 430 | |||
Min.mold Height | mm | 150 | |||
Ejector Stroke | mm | 100 | |||
Ejector Number | PC | 5 | |||
Ejector Tonnage | KN | 33 | |||
OTHERS | |||||
Pump Motor Power | KW | 13 | |||
Heater Power | KW | 7.45 | |||
Machine Dimension(L×W×H) | mm | 4300*1350*1800 | |||
Machine weight | T | 3.8 | |||
