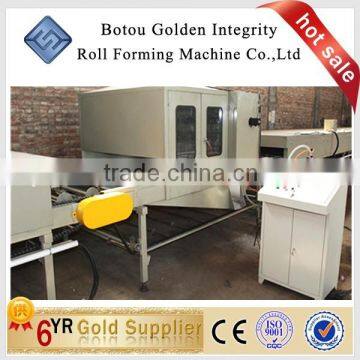

Colourful Stone Chip Coated Roof Tile Production Line
- 20 Set / Sets per Month
- Tianjin/Xingang
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
High efficiency stone-coated roll forming machine , production line for stone coated tiles
-
Stone coated steel roofing tile production line
-
stone coated metal roof panel cold roll forming machine
-
Roof machine popular in Africautomatic corrugated glazed tile stable roof stone coated roll forming machine
-
Color Stone sand blasting coated steel roof machine
-
iron roofing tile forming machine,nigeria competitive metallic tile roof sheet
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Roof | |
| Production Capacity | 8-10m/min | Place of Origin | China | |
| Brand Name | JCX | Model Number | JCX | |
| Power(W) | 130 kw | Voltage | 380 V | |
| Dimension(L*W*H) | 63000X1650X1910mm | Weight | 27 T | |
| Certification | CE/ISO | Warranty | 18 months | |
Product Description
Colourful Stone Chip Coated Roof Tile Production Line
Application
Stone coated sheet is formed by 0.4mm Al-Zn plating panel and color stones
It is modern,environmental and nice appearance.
We developed this stone coated production line based on long time running and improvement It is high-performance,stable, energy-efficient and easy operation.
Colourful Stone Chip Coated Roof Tile Production Line ( Sand Blast Part )
Automatic Bottom Glue Spraying Equipment
Outside Dimension :3000*1850*700mm(L*W*H) |
Structure:Channel steel ,angle steel ,welded |
Transmission:With glue spraying equipment compound chain transmit |
Conveying device:Compound chain transmit |
Air compressor: 1 set, 18.5kw, air output is 3m³/min |
High-pressure sand suction system: 1 set, sand suction is 1T/hour |
Sand hopper: 1 set, dimension:550*600*500 |
Automatic shaking sand system: one cylinder, the motor with 0.75kw, control: PLC |
First Drying Room
Outside Dimension:4000*1350*850mm(L*W*H) |
Structure:Channel steel ,welded |
Conveying device:Reciprocating chain conveys |
Adsorption of dust removal equipment:1 set |
Air compressor: 1 set, 7.5kw, air output is 1m³/min |
D46 high-pressure airless spraying system 1 set |
Automatic high-pressure airless spraying gun: 1 set |
High-pressure airless manual spraying gun:1 set |
Standard 15M German import high-pressure airless feed tube and it can support the maximum pressure is 20Mpa |
100L stainless charging basket 1 piece |
Automatic Surface Glue Spraying Equipment
Outside Dimension :30000*850*700mm(L*W*H) |
Structure:carbon steel welded |
Frame insulation wall: 30 meters’ long, 1mm carbon steel plate bending forming filled with cotton insulation |
Automatic temperature controller:2 sets,Range of adjustable temperature:0-160° |
Infrared fluorescent tube:50 pieces |
Conveying device: Reciprocating chain conveys 30m |
Cooling device:1 set |
Total equipment matches total control station 2 sets (Control system) |
Productivity:3-6m/min Calculate as 1.2m per piece,eight hours,produce 1500pcs every day |
Whole machine power:130kw |
Second Drying Room Equipment Component
Colourful Stone Chip Coated Roof Tile Production Line (Production Sample)
Our Servicesand Guarantee
1. We provide lifelong service during guarantee time and after guarantee time.
2. Except the wearing parts, 12 months guarantee for machine and 6 months guarantee for electric appliance after shipment.
3. During guarantee time, if any parts go broken and not artificial damage, we will send you new ones for free in the warranty period; if the parts were broken caused by the mishandling by the buyers, engineers available to service machinery overseas if the buyers require. But the extal expenses in cluding the charge of visa, the air ticket, the accommodation and trafficfee will be for the buyer’s account.
We have been established in 1995 as a professional manufacturer of ROLL FORMING MALCHINE. We use AUTO CAD design software. With more than 10 years of experience and strict quality control, our products meet International Standard and enjoy great popularity all over the world. Now We are the leading manufacturer of roll forming machine in China.
We manufacture various kinds of roll forming machines for producing such products as Roof Tile, Wall Panel, Roofing Corrugated Sheet, Floor Deck, C & Z Purling, Highway Guardrail, Sandwich Panel, Container Board, Car Panel, Roll Shutter Door, Downspout, Decorated gusset, Steel Pipe, etc.
Botou Golden Intergrity Roll Forming Machine Co., Ltd
Nancang Street, Botou City,Hebei Province,China
ZIP:062150
Tel: 86-317-8185399 Fax:86-317-8193636
TradeManager: cn1046671675
Mobile:008618915127311(whats app)
- Payment terms:T/T, L/C, Cash, EXW,C&F,CIF are available
- Delivery: usually within 30 working days.
- Warranty: 12 months since the machine left seller’s factory.We provide lifelong service during guarantee time and after guarantee time. Except the wearing parts, 12 months guarantee for machine and 6 months guarantee for electric appliance after shipment.
- Q: Can you make the machine according to my design or prototype?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to order from us.
5. Q: What do you need to know so that I can have a machine plan from you for our technical people reference?
A: Well, as the basic needed information for designing a machine plan, pls see below details:
(a) For the C,Z,W Profile and roof/wall panel roll forming machine: the material thickness range, width range and the profile drawing are required (how many roll forming stations required are depended on the profile drawing);
(b) For the slitting line and cut-to-length: the material type (HR, CR, HDGI, PPGI, SS), thickness and width range, coil weight, cutting speed, slitting numbers (only for slitting line), steel plate required cutting length (only for cut-to-length line);
(C)For the HVAC machine and the stainless steel pipe machine: the wall thickness range and the diameter range of the pipe; Pls also provide us with your special requirements for the machine, for example, you want the machine to be a full-automatic one or semi-automatic one in order to save your procurement budget.
6. Q: How can we be assured that you will deliver us quality machine with spare parts?
A: We usually require our customers to send the technical people to our factory for checking the quality of the machine before shipping. Considering that the buyer usually is not very familiar with the machine assembling and debugging, so we send the technicians to the buyer’s factory for the installation of the machine provided that the Price Term was conclude on ALL IN basis. In addition, we provide all of our customers with the after sales-service; it’s free of charge during the warranty period.
7. Q: Do you have after-sales service?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running. During guarantee time, if any parts go broken and not artificial damage, we will send you new ones for free in the warranty period; if the parts were broken caused by the mishandling by the buyers, engineers available to service machinery overseas if the buyers require. But the extal expenses in cluding the charge of visa, the air ticket, the accommodation and traffic fee,etc, will be for the buyer’s account.
8. Q: How do your machines compare with other big companies in this market?
A: We are willing to update our products with the latest technology and improve our machines accordingly.
9. Q: How does your factory do regarding quality control?
A: Quality is priority. JCX People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
10. Q: Will you deliver the right goods as ordered? How can I trust you?
A: Yes, we will. The core of our company culture is honesty and credit. JCX is ALIBAB’s Gold supplier with CE assessment. If you check with ALIBABA, you will see that we have never got any complaint from our customers.
Our Certifications
We have introduced high standards foreign technologies and management systems and implemented ISO9001:2008 International Quality Management System. Besides, our product have passed the certificate of CE and Rohs, and got the National License of Industrial Product.
With many years experiences in R&D and strong technical support, our sales volume grows annually. With excellent quality and competitive price, our products are highly praised by our customers.
With the goal of high quality and strong adaptability to the market competition, as well as our ability of R&D for new product in long periods, our products have achieved good market in Asia, European, Africa and America,etc. We sincerely look forward to establishing long-term cooperative relationships with customers from all over the world. OEM and ODM orders are welcomed.
