Home > Products > shutter door/door frame roll forming machine > JCX roll shutter door roll forming machine
JCX roll shutter door roll forming machine
- new port tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
roller shutter door machine /rolling shutter door making machine
-
HOT!!!automatic metal roller shutter door making machine
-
rolling Shutter Door making machine/ roller shutter door slat forming machine
-
steel roller frame shutter door making machine
-
steel roll-up shutter door roll forming machine
-
Rolling Door Equipment, Roller Shutter Door Making Machinery
Product Details
| Condition | New | Type | Tile Forming Machine | |
| Tile Type | Colored Steel | Use | Floor | |
| Production Capacity | 8-12m/min | Place of Origin | Hebei, China | |
| Brand Name | JCX | Power(W) | 3kw | |
| Voltage | 380v | Weight | 3-5T | |
| Certification | TUV | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

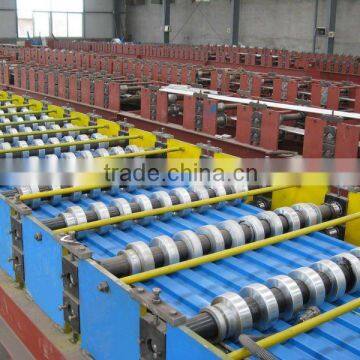

Cold Roll shutter door forming machine
Man-made uncoiler-Roll forming machine-compture control system-hydraulic control system-form cutter
parameters
1.Leak frame load-bearing:4T
2. Rack: welding with 300H steel
3. The form of forming machine guiding filling: side skip
4.The form of forming machine: chain drive with wallboard type, the thickness of wallboard is 12mm.
5. Diameter of Shaft is: 72mm
6.Chain: 0.6 inch single row
7. Main motor power:3kw double pole reduction box
8. Forming Speed: 8m/min
9. Number of tracks: 11 tracks
10. Roller material: high grade 45#steel
11 Hydraulic station power: 3kw
12 Hydraulic station oil pump: gearpump
13 Cutting type: hydraulic cut
14 Forming Cutting blade: Cr12
15 Heat treatment on cutting blade: HRC58°-60°
16 Thickness of coil sheet: 0.3-0.8mm
17 Coil width of material: 1000mm
18 Index error of length: ±2mm
19 Controlling system: PLC
20 Voltage: 380V 3phase 60 HZ or at buyer’s requirement
