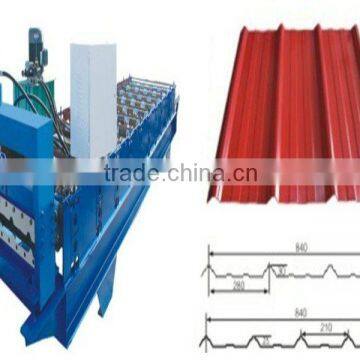

roof panel roll forming machine 840

Specifications

Botou Jinchengxin provide  Roof panel roll forming machine 840

Sheet  made by this machine can be used as roof and wall. GOOD quality with beautiful appearance.

 Technique parameters of the processing line

 (1) Suitable material: galvanized sheet/colored coil

(2) Thickness of the plate : 0.3 -0.8mm

(3) Width of the plate before forming:1000mm

(4) Productivity :8-12m/min

(5) Roller steps :11 rows

(6) Roller material: 45# steel

(7) Diameter of active shaft: 75mm

(8) Wall thickness of the main forming machine: 12mm steel plate

(9)Main forming machine body : 300mmH steel

(10) Transmission chain is 1'',;

Reducer is 3kw Xingxing Cycloid which works stably and no noise.

(11) Cutting hydraulic systerm adpats CDF-10 gear pump,the motor power is 3kw, no noise, work stably, long life expentancy.

(12) Taida PLC control systerm, easy to operate, high precision and work stably.

(13) Dimensions of major structure:6200mm*1550mm*1400mm

Processing technique and deployment

Processes: Manual decoiler—Roll forming machine—PLC system—Hydraulic system-Post cut—Stacking

Components of line:

Sales terms

Terms of Payment:   30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.

Delivery:                 30 days after receipt of advance payment

Warranty:            12 months limited warranty

During warranty: parts are free but buyer pay for the shipping fee

 sheets made by this machine

application as roof:
