ridge cap forming machine
- 30 Set / Sets per Month
- TIANJIN PORT
- T/T PayPal
You May Like
Product Details
| Type | Tile Forming Machine | Tile Type | Colored Steel | |
| Use | Roof | Place of Origin | Hebei, China | |
| Brand Name | jcx | Model Number | 312 |
Product Description
Specifications
ridge cap forming machinework automatically; hydraulic cutting; knife material CR 12 ; rollers: 45# steel with chromium.

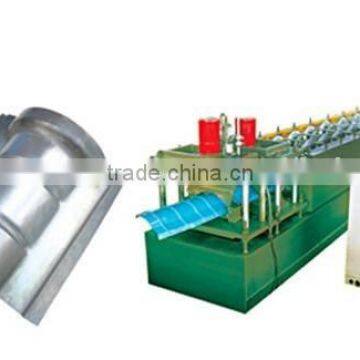

ridge cap forming machine
Introducation
Machine consist of uncoiler and its base, coil sheet guiding equipment, roll forming system, post cutting equipment, hydraulic station, controlling system, supporter table.
Technical Parameters:
Material Spec: colored steel sheet; galvanized steel sheet
Thickness of coil sheet: 0.3-0.8mm
Main Motor Power:3 kw
Forming Speed: 10-12m/min
Hydraulic station power: 3kw
Quantity of stand:about 14
Hydraulic pressure:10-12mpa
controlling system: PLC
Index error of length:10m+2mm
Appearance sizes: 7.5x0.65x1 (L x W x H)
Total weight: about 3.5 tons
Voltage: 380V 3phase 60 HZ or at buyer's requirement
Material of main equipment
Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm
Active shaft material: high grade NO.45 carbon wrought steel at Φ 65mm
Cutting blade: Cr12 mould steel with quenched treatment.
