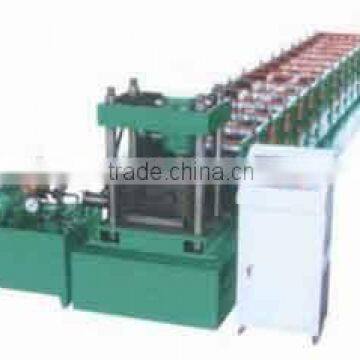

Z purlin roll forming machine
- 20 Set / Sets per Month
- Tianjin
- T/T
You May Like
Product Details
| Type | Tile Forming Machine | Tile Type | Colored Glaze Steel | |
| Use | Other, roof/wall | Place of Origin | Hebei, China | |
| Brand Name | jcx | Model Number | 80/300 |
Product Description
Specifications
Z shape praline forming machine can produce many sizes of Z shape purline.Introduction:
Z shape praline forming machine can produce many sizes of Z shape purline. The whole line mainly consists of uncoiler and its base, coil sheet flattening equipment, Z shape forming system, punching equipment, post cutting equipment, hydraulic station, and controlling system.
Main Technical Specification:
- Passive leak: manual up tight, passive leak
- The bearing of decoiler: 8T
- Rack: The thickness of middle plate is 18mm which adopting 400H steel welding
- The form of Forming Machine-driven feeding frame: sidewise roller
5. Forming Machine Shape: wall-type chain drive
6. Shaft Diameter: 80 mm solid shaft
7. Chain: 2 inch
8. Forming Machine Motor Reducing Qear drive
9. Forming Machine line speed: 7-10m/min
10. Forming Machine Tracks Number: 7 roller flattening, 12 roller molding
11. Roll Material: bearing steel
12. Roll heat treament : HRC58°-60
13. Hydraulic station motor: 4kw
14. Hydraulic Oil Pump: Tailwan JinYong Gear pump
15. Cutting method: Flying saw cut, mesopore is set freely
16. Flying saw motor : 11KW
17. Rolling thickness :1.0-3.0 mm
18. Accuracy of fixing length: ± 2mm
19. The computer is adopted with PLC, Japan's Panasonic
Working flow:
Decoiling the sheet→sheet guilding→coil strip leveling→roll forming→punching for horizontal hole→punching for vertical hole→measure length→cutting the panel→panel to supporter
The manufacturer cycle of equipment is 15 days.
The length of main machine is 9.8m, the width is 1.1m, and the height is 1.3m.
