Meanwell Saa Approved Led Driver

Meanwell saa approved led driver

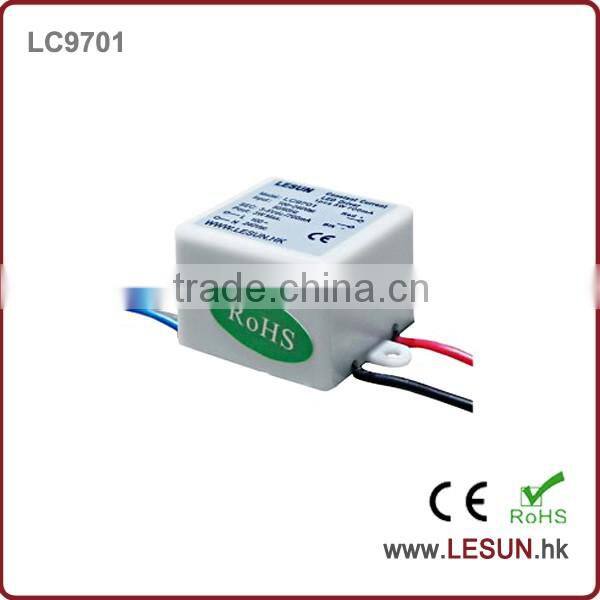

Model No. LC9701

Power:1*3W
Input
  Voltage: 100-240Vac
  Frequency: 50Hz/60Hz
  Efficiency:  80% typical
  Power Factor: >0.99

Output
  Current: 650mA
  Voltage: 3-12Vdc
  Wattage: 3W
  LED no. to drive:  1W LED
Ta:40°C

Wiring Way: leads or AC plug
Warranty: 2 years
Safety: UL, cUL and CE approved

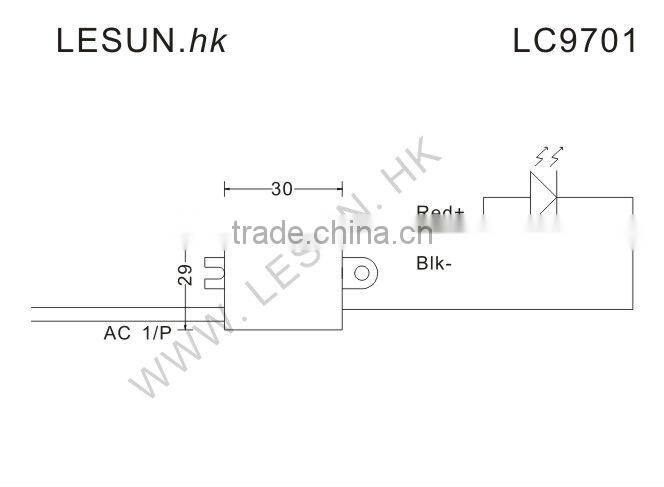

Dimension: 66Lx36Wx23H (mm)


Technical Features:
a. Small size with universal input voltage for worldwide use.
b. This device drives LEDs with Constant Current, resulting in constant brightness and extends life time.
c. Protection against short circuit and overload.
d. Designed to drive 1 to 3 leds Luxeon 1W with 350mA constant current outpuut.
e. IP 67 Waterproof.
f. 2 years warranty
