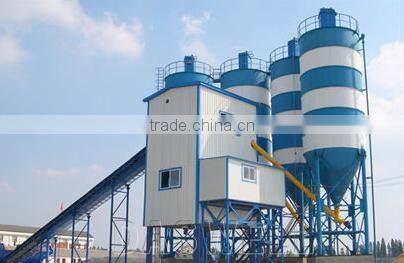

China High Quality Automatic HZS90 Concrete Batching Plant
- Qingdao Shanghai Tianjin
- T/T Credit Card
You May Like
-
China Factory Supply Automatic HZS90 Concrete Batching Plant
-
Zhirui New Automatic HZS90 Concrete Batching Plant
-
China Low Price Automatic HZS90 Concrete Batching Plant
-
China Low Price Automatic HZS120 Concrete Batching Plant
-
Zhirui Factory Supply Automatic HZS120 Concrete Batching Plant
-
China High Performance Automatic HZS120 Concrete Batching Plant
Product Details
| Condition | New | Power Type | Electric | |
| Place of Origin | Henan, China | Brand Name | Zhirui | |
| Model Number | HZS90 | Power(W) | 145kw | |
| Dimension(L*W*H) | 51903*19100*21600mm | Weight | According to the model | |
| Certification | ISO | Warranty | 12 Months | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
(1) Brief Introduction
1. The host of the automatic concrete batching plant uses forced double-horizontal shafts and can produce many kinds of high-quality concrete

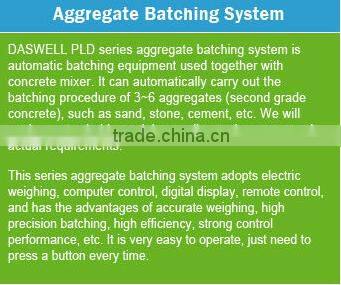

2. Accumulative or separate metering methods can be used to measure aggregate through an electronic weighing apparatus. The machine may use either an elevator or belt conveyor to load the aggregate.

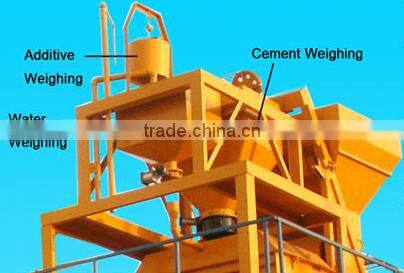

3. A weighing hopper is used to weigh cement, water and additives, to ensure that the measurement is accurate.
(2)parameter
Mixing station | model | HZS90 |
Capacity(m3/h) | 90 | |
Discharge height(m) | 3.8 | |
Cycle time(s) | 60 | |
Overall dimension(L*W*H)mm | 51093*19100*21600 | |
Total installed capacity(kw) | 145 | |
mixer | model | JS1500 |

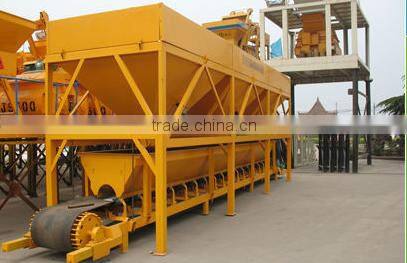

Batching plant | Aggregate batcher | PLD2400 |
Pneumatic system | Compressor | 1.8-7 |
Rated discharge capacity(m3/min) | 1.67 | |
Rated discharge pressure(MPa) | 0.8 | |
Motor power(kw) | 11 | |
Weighing accuracy | Aggregate | ±2% |
Cement | ±1% | |
Water | ±1% | |
Additive | ±2% |
(3) Feature
1. With the combined structure, unit modularization, complete engine set installation, convenient for moving and maintaining.
2. The mainframe is equipped with the dual horizontal shafts concrete mixer, with good quality of mixing, and high efficiency of production.
3. Adopt the electronic weighing for the aggregate, water, cement,and liquid additive, with high precision of batching.

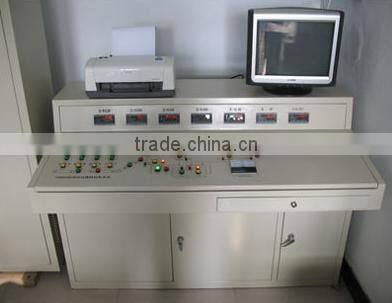

4. Electrical control system, advanced in the performance, controlled by the high-precision microcomputer, and equipped with single manul control, has blending ratio reserve, automatic compensation for the fall, and has printing system that can automatically complete the preset tank-time production.
Packaging Details: Standard Exporting Packing
Delivery Detail: 15-20 working days after receiving your advanced payment
