Home > Products > water jet loom > The Factory Direct Sales 280cm High Speed Water Jet Loom Textile Machine

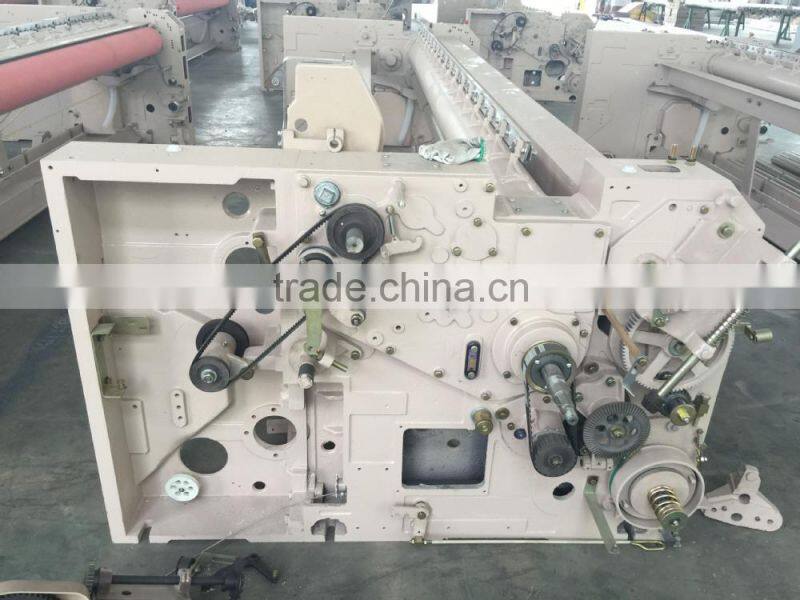

The Factory Direct Sales 280cm High Speed Water Jet Loom Textile Machine
US$ 4,500 - 14,500
/ Set
1 Set(Min. Order)
- Qingdao
You May Like
-
Factory Direct Sales Low Price Water Jet Jacquard Power Loom Textile Machine
-
The Factory Direct Sales Good Quality Plastic Weaving Machine
-
High Speed and Singel Noozle Water Jet Loom Machine
-
Good Quality Water Jet Power Loom
-
Weaving Fiber Water Jet Loom for Sale
-
High Speed Electronic Water Jet Jacquard Loom Machines
Product Details
| Condition | New | Type | Water Jet Loom | |
| Application | weaving all kinds of polyester fabric | Production Capacity | 98%-100% | |
| Place of Origin | Shandong, China | Brand Name | Honglongyuan | |
| Model Number | HLY-922 | Dimension(L*W*H) | 1500*2000*1000mm | |
| Weight | 2000KGS | Power(W) | 1.5-4.5KW | |
| Certification | ISO9001:2008 certificate | Warranty | 1 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
| Working range | Polyster yarn |
| Reed width (cm) | Nominal:150,170,190 ,210,230 260,280 330 360 |
| Useful reeding width:reduct 0-60cm | |
| Filling selection | 1 color 2 color at will |
| Weft density range | 6-60pick/cm |
| Motor | 3.5kw,4.6kw selected according to the certain model |
| Shedding | Plain type 2-8pcs heald frame |
| Positive cam machine,4-10pcs heald frame | |
| Dobby(mechanical),upper negative dobby or electronic dobby,2-16 heald frame (according to customer’s demands) | |
| Let-off | Electronic let off-ELO |
| Mechanical let-off | |
| Flange diameter:800mm | |
| Take-up | Mechanical take-up |
| Electronic take-up | |
| Upper and down temple(according to the varity of fabric) | |
| Waste filling removel | Mechanical take-up 3 roller |
| Cutter | Mechanical cutter |
| OPERATION | – DRIVEN BY RUSH START MOTOR.STOP BY ELECTROMAGNETIC BRAKE AT PRGRAMMED POSITION |
| ARRANGE,RUN,FORWARD INCHING,REVERSE INCHING,PROGRAMMED POSITION STOP AFTER | |
| ONE CYCLE REVERSE ROTATION. | |
| BEATING | CRANK BEATING,SWORD BEATING SYSTEM OIL BATH LUBRICATION SYSTEM. |
| FILLING INSERTION : | SINGLE PUMP (PLUNGER TYPE SPRING PRESSURE SYSTEM) |
| DOUBLE NOZZLE (NEEDLE TYPE CERAMIC ) STBILIZER SYSTEM | |
| FEELER – IR FEELER OR OPF FEELER,USING OPTICAL CABLE. | |
| YARN PACKAGE STAND | FLOOR MOUNTED HORIZONTAL STAND FOR – 4 PACKAGE.(2 COLOUR ) |
| CATCH CORD | SPINDLE TWISTING SYSTEM. |
| TEMPLE | TOP MOUNTED,2 BARREL TYPE WITH 2 RING |
| WATER SUCTION | SLIT TUBE SUCTION (BLOWER TYPE ) |
Our Services:
1. Reply your inquiry in 24 working hours.
2. Customized design is allowed. UEM&UBM are welcomed
3. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineer and staff.
4. Professional factory: We are manufacturer, specializing in producing all kinds of machinery for more than 15 years, competitive with good quantity.
5. As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature.
Packing & Shipping:
Packaging | few parts inbox,most parts fixed in container. |
Delivery | 15-30 days at confirmation of order. |
Shipping | Our arrangements or according to customers instruction. |
MAKE YOUR WEAVING SUCCESS!
Contact Us
- Qingdao Honglongyuan Trade Co., Ltd.
- Contact nameIris Wang Chat Now
- Phone86-0532-86621667
- AddressMacao road 333#, Qingdao, Shandong
