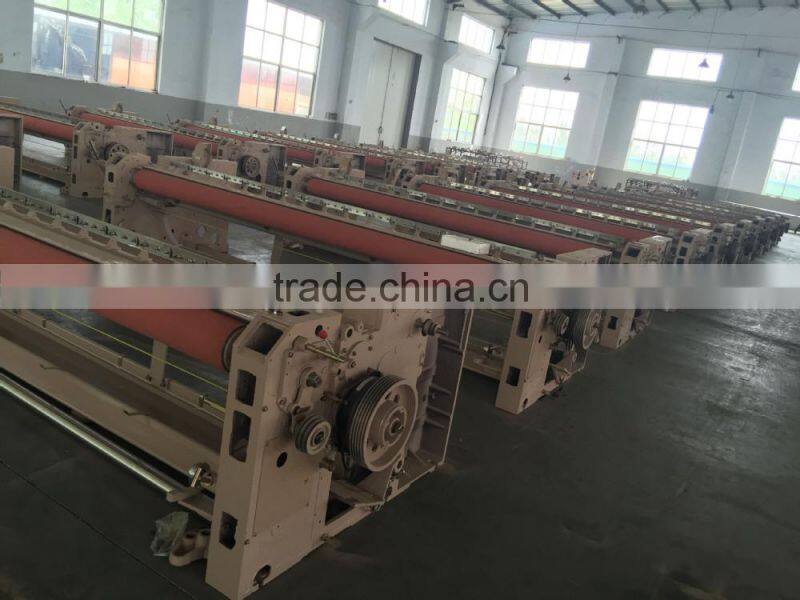

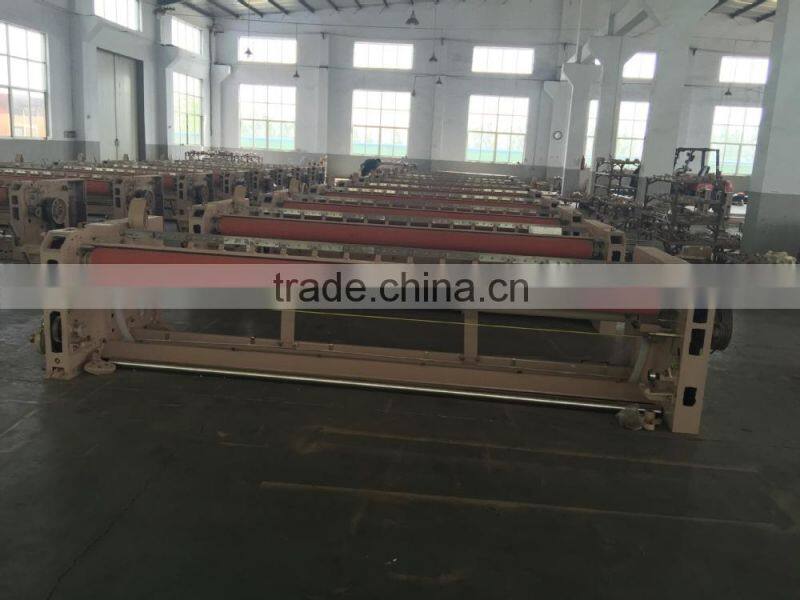

2015 New High Speed Double or Three Nozzle Water Jet Loom Machine With Dobby Shedding

Reed space

150,170,190,210,230,260,280,320,340,360,380,420,450cm

Useful reed space

Nominal R/S minus 2cm to 50cm

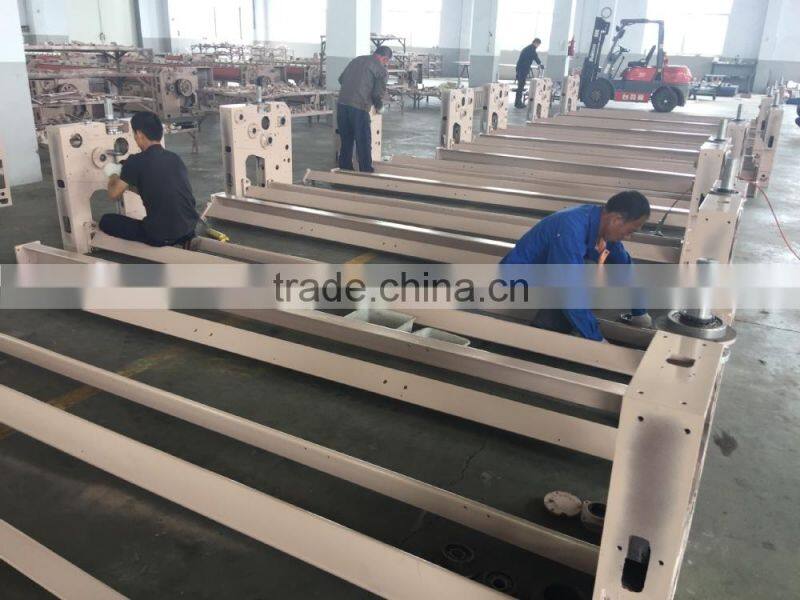

Frame

Box frame type( Driving section is in an oil bath)

Driving system

Brake

Direct stop mechanism by an electromagnetic brake

Control

Push and touch button(Arrange, run, stop, forward inching, reverse inching, one step reverse)

Motor

Rush start motor

Motor power

1.5kw, 1.8kw, 2.2kw, 2.8kw, 3.2kw, 3.7kw, 4.5kw

Weft beating

Crank beating 114X10mm

Let-off

System

Automatic mechanical and continuous let-off or electronic let-off. One or vertical two roll

Warp beam

800mm Flange,178mm barrel

Take-up

System

Mechanical or electronic continuous take-up

Weft density

Normal:5-60picks/cm,Special:3-70picks/cm

Cloth wind-up diameter

420mm, 520mm, 600mm

Shedding

Plain shedding

Crank shedding( heald frame number:2 to 6), 1/1 fabric

Cam shedding

Cam shedding ( heald frame number:2-10),plain, twill, satin fabric

Dobby shedding

Positive/negative Heald frame number:16(max),electronic and mechanical reading system, plain, twill, satin or complex design

Jacquard shedding

1408, 2688, 5120 lifting hooks, electronic jacquard device

Weft Insertion

Measuring & storage

Mechanical measuring turbo blower(single nozzle) or electronic weft feeder(1-4 nozzles)

Pump

Type: M,L,H, single or double

Piston of pump

Shutal ceramic piston

Nozzle needle

ST20/10, ST30/10, ST45/20, SD75/40.

Weft filling

One, two, three, four nozzle

Filling feeler

Electronic, optical, and self-control

Selvage

Twisting by star, planetary gears

Electrical

Part

Made in China&import

Main control board, AC contactor, transformer, NC interface, selvage break system ,waste yarn break system, overheating and overload protection

Electronic

meter

Count and display: rotational speed, total yield, team yield, total efficiency, team efficiency Cloth length auto control, stopping analysis and display

Other devices

A cloth roller, a weft density gear, a waste wire bucket ,a set of nozzle needl
