Wastewater Pre-treatment Machine (DAF)
- Qingdao
- T/T
You May Like
-
Sewage Pretreatment Machine (DAF)
-
Oil and Grease Remover for Sewage (DAF)
-
Oil Remover for Sewage (DAF) for Waste Water Pretreatment
-
Industrial Dissolved Air Flotation Machine for Oil & SS Removal
-
Industrial Sewage Dissolved Air Flotation Machine (DAF) for Oil & SS Removal
-
Industrial Wastewater Dissolved Air Flotation Machine (DAF) for Oil & SS Removal
Product Details
| Place of Origin | Shandong, China | Brand Name | BETTER | |
| Model Number | YW |
Product Description
Specifications
1)Waste water pretreatment2)Solid-liquid or liquid-liquid separation
3)Large sum of micro bubbles
4)High SS removal rate

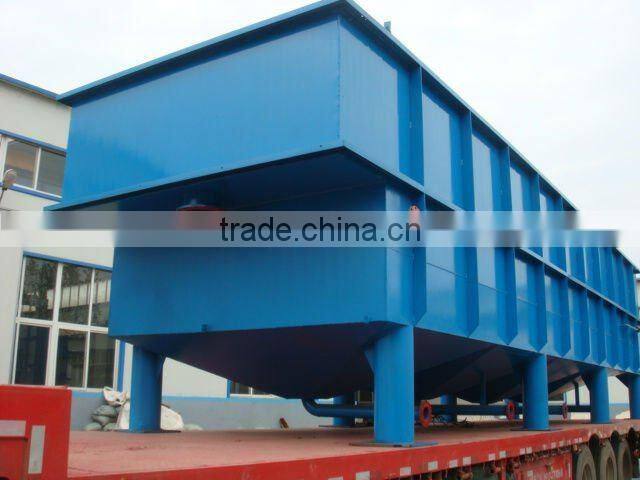

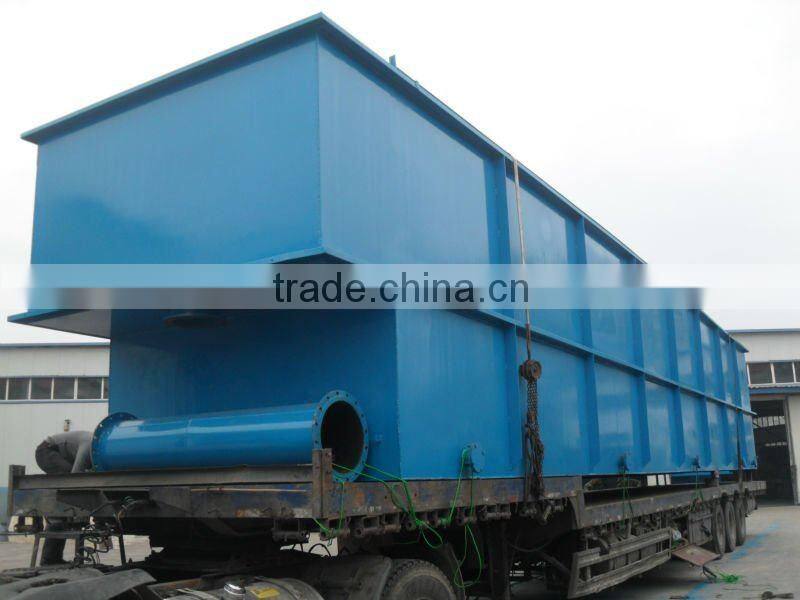

Dissolved Air Floatation Device(DAF)
Description:
YW series dissolved air flotation machine is mainly for solid-liquid or liquid-liquid separation. Large sum of micro bubbles produced by dissolving and releasing system adhere to solid or liquid particles with same density as waste water to make the whole float to the surface thus achieve the aim of solid-liquid or liquid-liquid separation.
Application:
1. Separate small particles and algae in groundwater.
2. Recover valuable products in industrial sewage such as paper pulp.
3. Act as secondary sedimentation tank to separate and concentrate suspended particles and sludge.
Technical Parameter:
Specification | Capacity (m3/h) | Dissolved gas water (m3/h) | Main dynamo power (kw) | Foam scraper power (kw) | Air compressor power (kw) | Dissolved air tank size (mm) | Overall dimension (mm) |
YW-5 | 4-5 | 1.5-2 | 3 | 0.55 | 1.5 | Φ400x1000 | 3300x1800x2200 |
YW-10 | 8-10 | 2-3 | 4 | 0.55 | 1.5 | Φ500x1512 | 4000x2100x2200 |
YW-20 | 15-20 | 5-7 | 7.5 | 0.55 | 1.5 | Φ500x1512 | 4600x2400x2200 |
YW-30 | 20-30 | 6-10 | 7.5 | 0.55 | 1.5 | Φ500x1512 | 5200x2600x2400 |
YW-40 | 30-40 | 8-13 | 7.5 | 0.75 | 2.2 | Φ600x1880 | 6000x2600x2400 |
YW-50 | 40-50 | 15-20 | 7.5 | 0.75 | 2.2 | Φ600x1880 | 7000x2600x2400 |
YW-60 | 50-60 | 18-27 | 11 | 0.75 | 2.2 | Φ600x1880 | 7600x2800x2400 |
YW-80 | 70-80 | 24-32 | 11 | 0.75 | 3 | Φ650x2034 | 9200x2800x2400 |
YW-100 | 90-100 | 30-35 | 15 | 0.75 | 4 | Φ700x1980 | 10000x2800x2600 |
YW-150 | 125-150 | 60-80 | 22 | 1.1 | 4 | Φ800x1980 | 13500x2800x2600 |
YW-200 | 175-200 | 80-100 | 22 | 1.1 | 5.5 | Φ800x2100 | 15800x2800x2600 |
YW-250 | 225-250 | 110-120 | 22 | 1.1 | 5.5 | Φ800x2400 | 15200x3400x2600 |
YW-300 | 280-300 | 120-180 | 37 | 1.1 | 5.5 | Φ1000x2900 | 19200x3400x2800 |
