Oily Wastewater Treatment Plant, Cavitation Air Flotation Machine (5-500 Cbm/hr.)
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Better | |
| Model Number | CAF |
Product Description

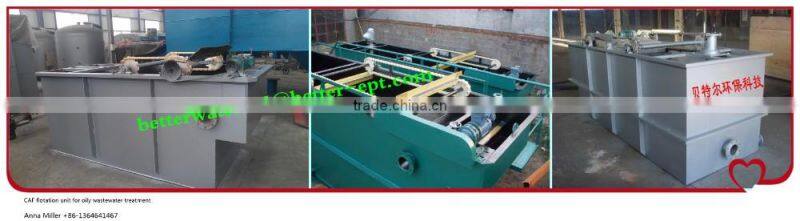

CAF-Cavitation Air Flotation Machine
(1-500m3/hr.)Wastewater Pre-treatment Plant, widely used in food industry water treatment
Material: 1) three -times anti-corrosion paint Q235 carbon steel;
2) 304 Stainless Steel;
3) 316 Stainless Steel.
I. CAF can cut your waste treatment cost by 40-90%
CAF System is a cavitation air flotation process. Microbubbles are injected into the wastewater without first
having to dissolve the air. Only air passes through the ejection nozzles. therefore no blockage can occur.
No need for air compressors,pumps, air saturation tanks.
II. CAF Features
1. Self contained system
2. rectangular,minimum space requirement
3. site preparation,construction,cost are minimum.
III. CAF Specification
| Model | Processing capacity(m3/h) | Total Power(kw) | Length(kw) | Width(m) | Height(m) |
| ZCAF-10 | 10 | 3.35 | 3 | 1.25 | 1.65 |
| ZCAF-15 | 15 | 3.35 | 4 | 1.25 | 1.65 |
| ZCAF-20 | 20 | 3.7 | 4.5 | 1.25 | 1.65 |
| ZCAF-30 | 30 | 3.7 | 5 | 1.25 | 1.65 |
| ZCAF-50 | 50 | 3.7 | 6 | 1.5 | 1.65 |
| ZCAF-75 | 75 | 5.2 | 6.5 | 2.2 | 1.9 |
| ZCAF-100 | 100 | 8.1 | 8 | 2.2 | 1.9 |
| ZCAF-150 | 150 | 8.9 | 11 | 2.2 | 1.9 |
| ZCAF-200 | 200 | 12.1 | 15 | 2.2 | 1.9 |
| ZCAF-320 | 320 | 18 | 15 | 3 | 1.9 |
| ZCAF-400 | 400 | 22.2 | 16.5 | 3.5 | 1.9 |
| ZCAF-500 | 500 | 26.6 | 20.5 | 4.5 | 1.9 |
