Home > Products > Cavitation Air Floatation Machine > Small CAF Unit, Slaughtering Wastewater Pre-treatment Machine, 1-500m3/hour Capacity
Small CAF Unit, Slaughtering Wastewater Pre-treatment Machine, 1-500m3/hour Capacity
- Qingdao
- T/T
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Better | |
| Model Number | CAF |
Product Description

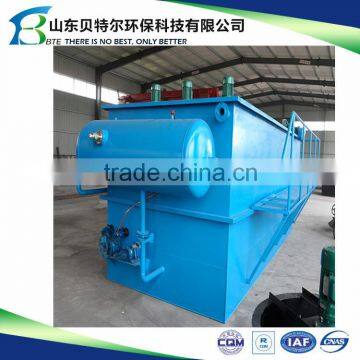

CAF-Cavitation Air Flotation Machine (1-500m3/hr.)
Material: 1) three -times anti-corrosion paint Q235 carbon steel;
2) 304 Stainless Steel;
3) 316 Stainless Steel.
I. CAF can cut your waste treatment cost by 40-90%
CAF System is a cavitation air flotation process. Microbubbles are injected into the wastewater without first
having to dissolve the air. Only air passes through the ejection nozzles. therefore no blockage can occur.
No need for air compressors,pumps, air saturation tanks.
II. CAF Features
1. Self contained system
2. rectangular,minimum space requirement
3. site preparation,construction,cost are minimum.
III. CAF Specification
| Model | Processing capacity(m3/h) | Total Power(kw) | Length(kw) | Width(m) | Height(m) |
| ZCAF-10 | 10 | 3.35 | 3 | 1.25 | 1.65 |
| ZCAF-15 | 15 | 3.35 | 4 | 1.25 | 1.65 |
| ZCAF-20 | 20 | 3.7 | 4.5 | 1.25 | 1.65 |
| ZCAF-30 | 30 | 3.7 | 5 | 1.25 | 1.65 |
| ZCAF-50 | 50 | 3.7 | 6 | 1.5 | 1.65 |
| ZCAF-75 | 75 | 5.2 | 6.5 | 2.2 | 1.9 |
| ZCAF-100 | 100 | 8.1 | 8 | 2.2 | 1.9 |
| ZCAF-150 | 150 | 8.9 | 11 | 2.2 | 1.9 |
| ZCAF-200 | 200 | 12.1 | 15 | 2.2 | 1.9 |
| ZCAF-320 | 320 | 18 | 15 | 3 | 1.9 |
| ZCAF-400 | 400 | 22.2 | 16.5 | 3.5 | 1.9 |
| ZCAF-500 | 500 | 26.6 | 20.5 | 4.5 | 1.9 |
Shandong Better Enviromental Protection Technology Co.,ltd,
is a high-tech enterprise, adopted the US technology,it's the largest enviroment protection company in Shandong Province, with experience over 10 years.
During the past decade, we won very good reputation among our customers all over the world,USA, Korea, Holand, Australia, Turkey, Janpan, Bangledesh, Iran, Saudi Arabia, Agentina, Maldives, Ecuador, Kuwait, Iraq, Cango, Sudan, Senegal, Vietnam, Thailand, Cambodia, etc.
Below are our national patent certificates:
Solution Advice, Installation &. Operation Guide
Welcome to contact with me, Anna Miller (Sales Manager)
Hot-line: +86-13606461467 (whats app)
Wechat: paumi910 Skype: m.anna910 QQ: 944623877
betterwater005(at)
Shandong Better Environmental Protection Technology Co., ltd
