10 Cbm/hr CAF Cavitation Air Flotation Units Used in Oily Wastewater Treatment
- Qingdao/ or required
- T/T
You May Like
-
Low Cost Oily Wastewater Treatment Plant, Cavitation Air Flotation Units
-
Dairy Industry Wastewater Treatment Plant/ CAF Flotation Machine (5-500 Cbm/hr.)
-
IC ANAEROBIC REACTOR
-
Industry Cavitation Machine
-
Small CAF Unit, Slaughtering Wastewater Pre-treatment Machine, 1-500m3/hour Capacity
-
Oily Wastewater Treatment Plant, Cavitation Air Flotation Machine (5-500 Cbm/hr.)
Product Details
| Place of Origin | Shandong, China | Brand Name | Better | |
| Model Number | CAF |
Product Description

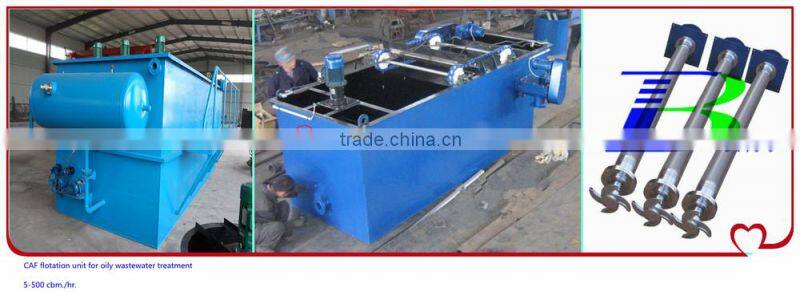

CAF-Cavitation Air Flotation used in wastewater treatment system (5-500m3/hr.)
I. CAF can cut your waste treatment cost by 40-90%
CAF System is a cavitation air flotation process. Microbubbles are injected into the wastewater without first
having to dissolve the air. Only air passes through the ejection nozzles. therefore no blockage can occur.
No need for air compressors,pumps, air saturation tanks.
II. CAF Features
1. Self contained system
2. rectangular,minimum space requirement
3. site preparation,construction,cost are minimum.
III. CAF Specification
| Model | Processing capacity(m3/h) | Total Power(kw) | Length(kw) | Width(m) | Height(m) |
| ZCAF-10 | 10 | 3.35 | 3 | 1.25 | 1.65 |
| ZCAF-15 | 15 | 3.35 | 4 | 1.25 | 1.65 |
| ZCAF-20 | 20 | 3.7 | 4.5 | 1.25 | 1.65 |
| ZCAF-30 | 30 | 3.7 | 5 | 1.25 | 1.65 |
| ZCAF-50 | 50 | 3.7 | 6 | 1.5 | 1.65 |
| ZCAF-75 | 75 | 5.2 | 6.5 | 2.2 | 1.9 |
| ZCAF-100 | 100 | 8.1 | 8 | 2.2 | 1.9 |
| ZCAF-150 | 150 | 8.9 | 11 | 2.2 | 1.9 |
| ZCAF-200 | 200 | 12.1 | 15 | 2.2 | 1.9 |
| ZCAF-320 | 320 | 18 | 15 | 3 | 1.9 |
| ZCAF-400 | 400 | 22.2 | 16.5 | 3.5 | 1.9 |
| ZCAF-500 | 500 | 26.6 | 20.5 | 4.5 | 1.9 |
Shandong Better Enviromental Protection Technology Co.,ltd,
is a high-tech enterprise, adopted the US technology,it's the largest enviroment protection company in Shandong Province, with experience over 10 years.
During the past decade, we won very good reputation among our customers all over the world,USA, Korea, Holand, Australia, Turkey, Janpan, Bangledesh, Iran, Saudi Arabia, Agentina, Maldives, Ecuador, Kuwait, Iraq, Cango, Sudan, Senegal, Vietnam, Thailand, Cambodia, etc.
Below are our national patent certificates:
Solution Advice, Installation &. Operation Guide
