Home > Products > Big Dipper Marble and Glass CNC Router > 2015 hot new products cheap price tiger stone machine

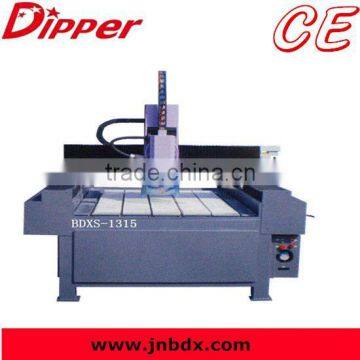

2015 hot new products cheap price tiger stone machine
- 500 Set / Sets per Month
- Qingdao tianjin shanghai
- T/T Credit Card
You May Like
-
Sex Mini new style BDXS-3636 cnc mechanical jewelry engraving machine
-
Heavy Duty cheap price high quality stone carving tool
-
cheap price high quality glass engraving machine
-
Heavy Duty BDXS-1325 marble tile cutting machine
-
Heavy Duty cheap price high quality used water jet cutting machine
-
Heavy Duty cheap price high quality stone cutting and polishing machine
Product Details
| Condition | New | Type | Stone Engraving Machine | |
| Use | Marble | Production Capacity | 50sets/month | |
| Place of Origin | Shandong, China | Brand Name | Dipper | |
| Model Number | BDXS-1224 | Voltage | 220V 50/60HZ | |
| Power(W) | 3.0 KW | Dimension(L*W*H) | 3450x3050x1600mm | |
| Weight | 1500KG | Certification | CE | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
stone carving cnc router:1 cnc router for stone
2.NC-studio control system
3 factory supply
4 CE ,ISO standard
2015 hot new products cheap price tiger stone machine
Machine parts of tiger stone machine :
Samples of tiger stone machine :
Performance feature of tiger stone machine :
1) tiger stone machine adopts Industrial production model,heavy all-steel welded,temperating aging treatment,solid and can not change the shape.
2) tiger stone machine router adopts Taiwan liner guide which is contact with the bearing surface,so long time use the precision will be high.
3) tiger stone machine adopts Germany double-nut automatic anti-backlash ball screw.
4) tiger stone machine use High speed driver,so it has high speed and power.
5) adopts Dust-protected oiling structure,so it make sure the machine running long time.
6) tiger stone machine has Break point and cutting continued carving,so it can engrave at any angle.
7) tiger stone machine can compatible many kinds of CAD/CAM design software,such as tytp3,artcam. castmate and so on.
8) has High power AC water cooling spindle,so it can process hard material efficiently.
Applicable industries of tiger stone machine :
tiger stone machine for marble granite stone is used for carving marble,granite,glass,muyu-stone and so on hard materials.
Technical parameter of tiger stone machine :
Model | BDX-S90 | BDX-S12 | BDX-S15 | BDX-S18 |
X working area | 900 | 1200 | 1500 | 1800 |
Y working area | 1200-1500mm | 1200-1500mm | 1200-3000mm | 1200-3000mm |
Table size | 1080-1800mm | 1380-3000mm | 1680-3500mm | 1980-3500mm |
Max area of Z axis | 300mm | 300mm | 300mm | 300mm |
Highest running speed | 12m/min | 12m/min | 12m/min | 12m/min |
Highest engraving speed | 8m/min | 8m/min | 8m/min | 8m/min |
Precision | 0.005mm | 0.005mm | 0.005mm | 0.005mm |
Max feeding height | 350mm | 350mm | 350mm | 350mm |
Spindle power | 3.0kw/main axis | 3.0kw/main axis | 3.0kw/main axis | 3.0kw/main axis |
Rotated speed of the spindle | 0-24000rpm/min | 0-24000rpm/min | 0-24000rpm/min | 0-24000rpm/min |
Working model | stepper | stepper | stepper | stepper |
Machine weight | 1000kg | 1300kg | 1600kg | 2000kg |
More products about :
If any further details you need, please contact us with "contact" buttom.
Please feel free to contact us,we will reply within 24h!
We want to know:
1 How much the spindle power you need
2 What materials do you need to process
3 The size and thickness of the material
The production process of artifical marble stone equipment :
