Home > Products > Soap Making Machine > Miniature Soap Making Machinery,1514A Toilet Soap Production Line
Miniature Soap Making Machinery,1514A Toilet Soap Production Line
- Shanghai Jiujiang
- T/T
You May Like
Product Details
| Condition | New | Application | Commodity, Chemical | |
| Packaging Type | Case | Packaging Material | Wood | |
| Automatic Grade | Semi-Automatic | Driven Type | Electric | |
| Voltage | 380v | Power | 0.75kw*4 | |
| Place of Origin | Jiangxi, China | Brand Name | Gaoxin | |
| Model Number | 1514A | Dimension(L*W*H) | 600*400*1050mm*4 | |
| Weight | 180kgs*4 | Certification | ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Miniature soap making machinery2.Semi-automatic operation,easy,convenient
3.Raw material,soap noodles

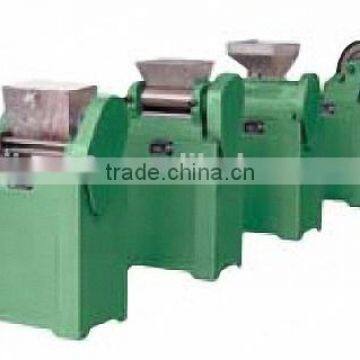

Miniature soap making machinery is very simple,which is made up of four machines with functions of mixing,grinding,out-stripe and printing / stamping.It is semi-automatic operation and the mini soap production is from soap noodles.It is applied for the making of hotel / toilet soaps with weight ≤45 g / pc.
Function and parameter for the four parts,
No. | Model | Main Specifications |
1 | 1. 1510 Soap mixer | Technical Parameter:
Capacity: 1.5-3 kg / once,5-8 mins / once Motor power: 0.5kw,380V,50HZ Dimensions: 570×360×970mm Equipment weight: 170kg The two-way stainless mixer is for mixing soap ingredients for the plants |
2 | 2. 1511 Grinding machine | Technical Parameter: Capacity:0.0083CBM Speed of feeding roller: 38 RPM Speed of middle roller:70 RPM Speed of discharge roller: 100 RPM Motor power: 0.75KW 380V 50HZ Dimensions:570X360X1000mm Weight:220kgs
The grinding machine is applied for grinding of the mixed ingredients |
3 | 1512 out-stripe / cutter machine | Technical Parameter: Capacity of bunker:0.003CBM Production capacity:0.0055 CBM / min Speed of screw:44 RPM Cross section of discharge roller:32X18mm Motor power:0.75KW 380V 50HZ Dimension:570X360X1050mm Weight:180 kgs
It is applied for out-stripe / cutter
|
4 |
3. 1513 Printing / stamping machine
|
Technical Parameter: Productivity: 20-60 pcs / min Slide stroke: 52mm Frequency of stroke: 122 times / min Motor power: 0.75KW 380V 50HZ Dimensions : 550X360X1020mm Weight: 170 kgs
This machine is applied for the mini soap shaping and stamping |
Samples of miniature soaps produced by the machinery,
Certificate to the machinery,
Visiting of some clients,
Warranty,
One year after shipment,on proper operation conditions;
Package for shipment,
Should there be no special requirement from the clients,the goods will be packed in wooden cases as we have done for shipmnt;otherwise,the package requirements should be specified to us,when order is being confirmed,and we will follow the instruction for the package to request.
After-sale service,
Overseas technicial support by our technician available.
