Newest and 99.9% Efficiency Rate ZH-2# Wet Scrubber

Specifications

Wet Scrubber Wet Scrubber Wet Scrubber

Product Description

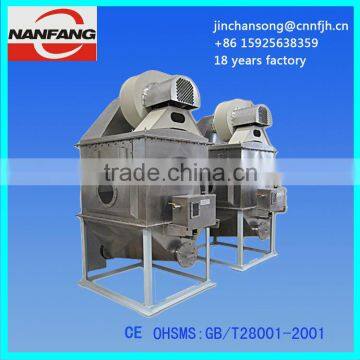

Newest and 99.9% Efficiency Rate ZH-2#   Wet Scrubber

Features of Watery Dust Collecting System Wet Scrubber

Stable performance,high dust cleaning efficiency through water power: The collection efficiency will not be affected when air capacity is waving within 25%; It has good dust removing effect for sticky and hydrophilic dust,the efficiency is ≥98%.

• Less pressure consumption,generally is 80~100mm H2O.
• Less water consumption,easy management,easy to deal with sewage and sludge: Because the water in the dust collector can be used circularly,thus water consumption is very less,only has little water evaporating loss,waste is about 1kg/1000m³. Due to need water circulating pump in running process,sewage and sludge deposited in the tank can be discharged regularly,not only bring the convenience of management,but also can often keep the surroundings clean.
• Can purify water-solute harmful gas: If throw corresponding alkaline substances,can purify various kinds harmful gas in burner gas ,such as SO2 etc.,achieving  the effect of removing dust and gas.
• Improve the ability of anticorrosion: In general,the box body inwall will be brushed asphalt paint twice,aslo can brush epoxy resin paint or ABS paint etc according to users' requireiments,to enhance the corrosion resistance,extend the service life.
• Automatic filling water device,convenient maintenance.
• Low running resistance,low power consumption.
• The smallest maintenance
• Simple structure,cover small area
• Easy to use,low cost.

 NANFANG brand ZH-2# and this series Hydraulic Dust Collector Technical Parameters:

Operating Principle of Watery Dust Collecting System Wet Scrubber

During operation, dust air passes through arc-shaped slot with high flow speed after it enters the purifying tank. Air stream in the slot turns sharply and blends forcefully with water, forming a water curtain at the slot exit which facilitates full contact between dust and water and enables dust to dissolve into water. Purified air is discharged out from water-retaining plate after moisture is removed. By recycling water in the tank, Water consumption is therefore minimal, except for loss from evaporation. Water lost is replenished by automatic water refilling device to maintain water level. Sludge on the dust remover shall be cleaned regularly.

Applicable Scope of Watery Dust Collecting System Wet Scrubber

The dust collector unit not only is suitable for removing all hydrophilic dust,but also has higher collection efficiency to non-hydrophilic dust and particles. But can not be used for the purification of fibrous dust,in case blocking.

         It is suitable for pharmacy,food,build materials,chemical,metallurgy,sand blast,machining,electricity and other industries.It is particularly effective in treating the dust and gas with high concentration,high temperature,strong viscosity,toxic and harmful,hormone contained,watery.

Production process

1. CNC Laser Cutting:

 2. Bending

  3. Welding

 4. Assembling

 5. Testing

6. Packing

Our Certificates

Contact way

    Experienced Dust collector Manufacturer since 1996. We are worthy of your trust.
