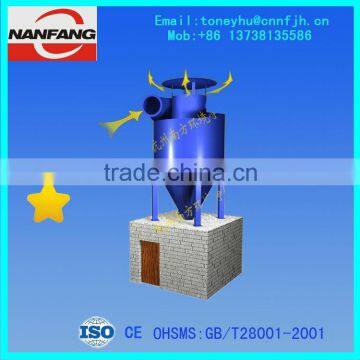

Nanfang XM-cylinder woodworking rotary precipitator

Specifications

Summary

1.      XM-cylinder woodworking rotary precipitator is designed by pressure and installed in the exit of the fan, which is used for the removal of sawdust. Good effect of cleaning, the sawdust can not be seen in the air after dust removing, dust resistance coefficient is 1.5.

2.      The dust remover is divided into two types: Left-Rotation and Right-Rotation, anti-clockwise direction of rotation is for the L-type, the selector should note the request: this figure is based on the L-mapping.

3.      Imports diameter ventilation ducts usestandard diameter of stereotypes series.

4.      When installing the precipitator,masonry the sealed storage room according to icon size, a gray storage room is sealed strictly. The junction, and are not allowed to have closed the door leakage phenomenon, it will seriously affect the removal efficiency. The junction and the sealed door are not allowed to leak, if it does happen, it will seriously affect the removal efficiency.

1) Material: (1).Carton Steel(Q235-A)

           (2).Stainless Steel(SUS304) two kinds for your option.

2) Wind Capacity: 31000 m³/h

3) Wind Speed: 14 m/s

4) Resistance: 18 mm water column

5) Dust Collection Efficiency: 99.99%

6) Dimensions(DXH): Φ3540X7466 mm

7) Equipment Weight: 1927 Kg
