hdpe pipe plastic pipe extrusion machine

FOB Price

USD $100,000 - $122,200 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Other, Pipe, Pipe
Plastic Processed	PVC	Screw Design	Double-screw
Automatic Grade	Automatic	Place of Origin	Shandong, China
Brand Name	JH	Model Number	SJSZ92/188
Voltage	380V/3P/50Hz	Power(W)	110kw
Dimension(LWH)	Model	Weight	10T
Certification	ISO	After-sales Service Provided	Engineers available to service machinery overseas

hdpe pipe plastic pipe extrusion machine

Tech Specification

General:
Usage condition:	380V/3P/50Hz
Suitable material:	PVC
Finished pipe specification:	200-450mm diameter
Max. Output capacity:	400-500kg/h
Equipment list:
SJSZ92/188 win Screw Extruder	1unit
Die head	1set
JBDVCT400 Vacuum calibration tank	1 unit
JBDCT400 spray cooling tank	1 unit
JBDHO-400 Haul off machine	1 unit
Printer	1 unit
JBDC-400 ut-off machine	1 unit
JBDDP-400 utomatic pilling unit	1 unit

Detailed information

1.SJSZ92/188 Twin Screw Extruder (1 unit)

Electrical Motor
make	Siemens & ABB
power	110kw
RPM	1450-1500
drive type	AC
Gearbox
make	JIANGYIN
model	ZLYZ92
material	20CrMnTi
Excellent feature	high intensity & Hard tooth
the hard tooth is more hardness than soft tooth, and longer-used
Distributor case
model	SJ92
Vacuum pump
power	4kw
TWIN SCREW
diameter	92/188mm
material	38CrMoALa
RP,	50
nitrogen hardness	HV940-970
Nitrided degree	0.4-0.7
Heating treatment	Cementite
Barrel
No of Heating Zones	5
No of Cooling Blowers	4
KW per cooling Zone	0.25KW/ZONE
HEATING POWER KW	40kw
material	38CrMoALa
nitrogen hardness	HV940-970
Nitrided degree	0.4-0.7
Heating treatment	Cementite
Auto feeding device
Make	Qingdao JBD Machinery
model	JBDA-200
feeding power	4.5kw
feeding capacity	600kg/h
It is use for heating the PVC raw material to uniformity Fluid

2.Die head (1 set)

Make	Qingdao JBD machinery
diameter	200/250/280/300/315/355/400/450
material	high quality mold steel 40Cr
total power	40kw
form	spiral-type
Set of sizing material	bronze
all made by special steel for mould, and spiral die to ensure good plastication. According to changing outside mold and inside mold, producing different pipe; the bolts of outside mold can be adjusted.
it is use for forming the Fluid to the shape of the given size of the pipe

3.Vacuum calibration tank(1 unit)

model	JBDVCT450
Effective Length	9000mm
Diameter of tank	500mm
room of vacuum	2
vacuum pump	5.5kw*2
water pump	5.5kw*2
Mobile Electric Power	2.2KW
Bibcock material	ABS
it is use for forming the tube by vacuum and cooling the tube by water

4.Spray cooling tank (1unit)

6.Haul off machine (1 unit)

7.Planetary Cutting machine (1 unit)

model	JBDPC-450
pneumatic component	1 PC Taiwan AIRTAC
Meter counting device	1 PC LG (Korea)
power	1.5kw
Material of the knife	Tool steel
Mobile Distance	1000mm
planet cutter	200-450mm
Max cutting thickness	≤35mm
cutting method	Revolving cutter
it is use for cutting the pipe to fixed length

8.Others:

Electrical Components
contactors	Siemens & ABB
Relay	Siemens & ABB
Switches	Siemens & ABB
other electric device	Siemens & ABB
Temperature Controllers	OMRON
converter	ZHENGXIAN
Meter counter	Korea LG
Pneumatic Components
Make	Taiwan AIRTAC brand products

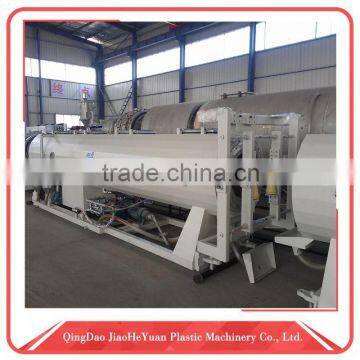

Details show
