Baby Monitor

Specifications

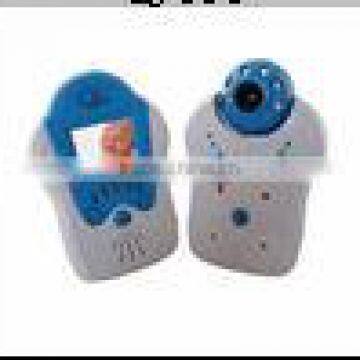

Details about  2.4G Wireless Baby Monitor

Features
* Palm size monitor for mobility
* High quality Color CMOS sensor for crisp, clear images
* Built-in microphone for audio monitoring
* Have 6 Infra-red LED on the camera for Night vision (Day & Night Uses)
* 4-channel operation allows multiple (1-4) camera system
* Long operation range: up to 100M clear line-of-sight or 30M through obstructions (walls/ceilings)
* Ideal for Baby/Children Room Monitoring

Camera Specification

-Frequency: CH1: 5.645GHZ   CH2:5.905GHZ  CH3: 5.925GHZ   CH3 :5.925GHZ  CH4: 5.945GHZ
-CMOS Total Pixels: 628 x 582 (PAL) / 510 x 492 (NTSC)
-6 infrared LED with 5m night vision range
-Horizontal Resolution: 380 TV Lines
-View Angles: 62 degrees
-Minimum Illumination: 1.5Lux / F1.5
-Gain Control: Automatic
-Modulation Mode: FM
-Bandwidth: 18M
-Power: DC 5V Battery
-Operating Temperature: -10oC ~ +40oC
-Antenna: Built-in omni-directional antenna
-Lens: f6.0mm F 1.5

Monitor Specification

-Frequency: ISM5.625--5.965G
-Channel: 4 selectable channels
-CMOS Total Pixels : 628x582(PAL)510x492(NTSC)
-Display : 1.8' LTPS-TFT LCD
-Demodulation Mode: FM
-Power: DC 5V Battery
-Operating Temperature: -10oC ~ +40oC
-Display colors : Full- color
-Power  DC 5V , 500mA or  li-batteries
-Antenna: Built-in omni-directional antenna
-Dimension(WxLxH): 35X769.5x105 mm
-Weight: 150g

Standard Package Content

-2.4GHz Wireless"WATCHDOG" Night vision Camera
-2.4GHz Wireless 4-channel LCD Receiver
-A/V Cable
-5v Power Adaptor for Camera
-arphone
-5V Power Adaptor for LCD Receiver

Packing

-Carton Box Size:39.5X32.5X39.5 CM
-1 gift box : 1 Unit
-1 Carton Box : 10 sets
-Gross Weight :7.5 kg/ carton
-Net weight : 6.5 kg/Carton
-weight : 0.65 kg/Carton
