3T Water Bags for Crane Load Test
- Shanghai China
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | GATHERING Load Testing Water Bag | |
| Model Number | GRB3 Load Testing Water Bag |
Product Description
Load Testing Water Bags
Crane Load Testing Water Bag is designed for the proof load testing for the lifting equipments and structures, such as cranes, hoist, beams, davits, and so on.
This crane load testing water bags provide one kind innovative load testing solution.
Load Testing Water Bags meet the need for the simple proof load testing method instead of traditional solid test weight method of use load weight.
Load Test Water Bag introduction:
- New type of Multi-Purpose Load test products
-Light weight, Small volume, convenient transportation .
-Security and environmental protection, energy-saving and cost-reducing
- Lateral drain,reduce bottom pressure.Make it more safe, more convenient when filling
Load Test Water Bag Feature:
- Special fabric bag body,can be folded during transport.
- Fabric quality is light, strength, easy to carry,and reduce transportation cost.
- High strength fiber sling crossed the waterbag body, Make the water bag more safety.
- Safety, environmental protection, non-toxic materials.
-Low temperature resistance, resistance to water, oil resistance, good alkali resistance
- Suitable for ambient temperature -50°C—80°C , adapt to the cold and hot area.
- The biggest advantage of Water Bag is pressure testing
-Can be used for the crane hoisting test, The deck strength test, Drilling ship cantilever beam test etc.
-OEM Acceptable, we can make water bag according to customer's requirements
Load Test Water Bag Specification:
Type | Full load /kg | Volum /m3 | Full load height | Max Dia. | Weight | Package Size |
GRB0.25 | 250 | 0.25 | 1.2 | 0.8 | 8 | 0.5 |
GRB0.5 | 500 | 0.5 | 1.5 | 1 | 10 | 0.5 |
GRB1 | 1000 | 1 | 1.8 | 1.2 | 19 | 0.7 |
GRB2 | 2000 | 2 | 2.3 | 1.5 | 22 | 0.7 |
GRB3 | 3000 | 3 | 2.7 | 1.8 | 28 | 0.7 |
GRB4 | 4000 | 4 | 2.9 | 1.9 | 52 | 1.1 |
GRB5 | 5000 | 5 | 3.3 | 2.3 | 67 | 1.1 |
GRB6 | 6000 | 6 | 3.4 | 2.4 | 84 | 1.1 |
GRB8 | 8000 | 8 | 3.6 | 2.54 | 104 | 1.1 |
GRB10 | 10000 | 10 | 3.9 | 2.65 | 108 | 1.1 |
GRB13 | 13000 | 13 | 4.2 | 2.9 | 128 | 1.1 |
GRB15 | 15000 | 15 | 4.35 | 3 | 130 | 1.1 |
GRB20 | 20000 | 20 | 6 | 3.5 | 156 | 1.5 |
GRB25 | 25000 | 25 | 6.1 | 3.9 | 190 | 1.5 |
GRB30 | 30000 | 30 | 6.5 | 4.1 | 220 | 1.5 |
GRB35 | 35000 | 35 | 6.8 | 4.3 | 300 | 2.1 |
GRB40 | 40000 | 40 | 7.4 | 4.5 | 390 | 2.6 |
GRB45 | 45000 | 45 | 7.5 | 4.7 | 430 | 2.6 |
GRB50 | 50000 | 50 | 7.7 | 5.1 | 450 | 2.6 |

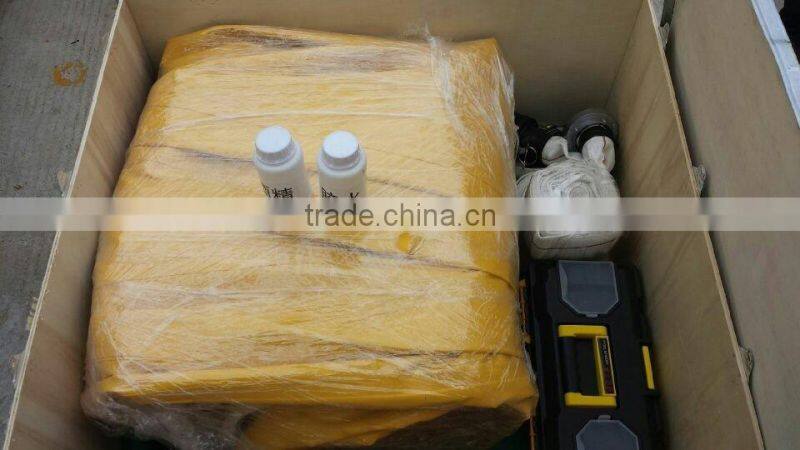

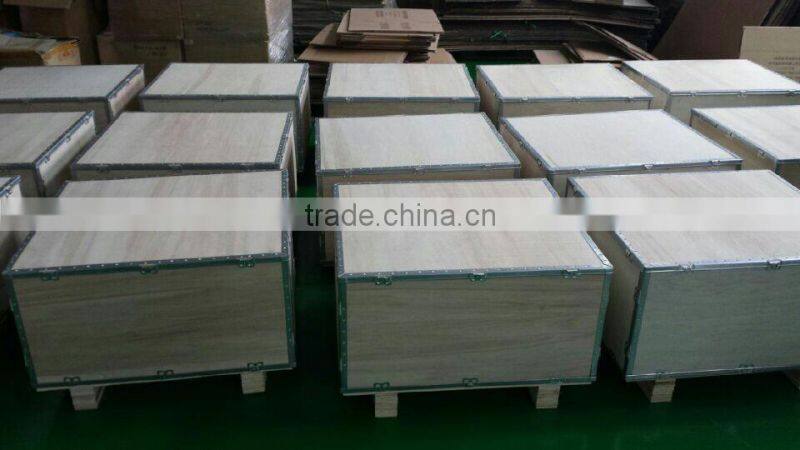

Package details: Wooden case
Shipping date: 20 days
Ⅰ.Warranty
12-month warranty, excluding the related parts
Ⅱ.Installation and Commissioning
A.We provide Layout Drawings & Installation Drawing after payment.
B. If needed, we will send engineers to the Buyer’s site for supervision of Installation and Commissioning.
Expenses abroad should be paid by the buyers.
Ⅲ. Inspection:
A. Customer visit factory;
B. We offer pictures for inspection;
C. The third party inspection appointed by Customers.
Please contact us if need Water Bags or Loadcell, Thanks
