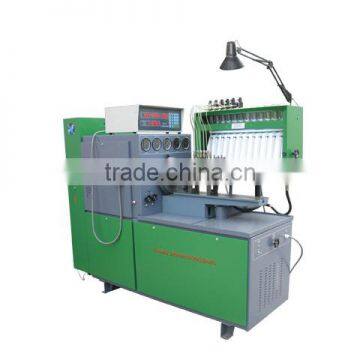

Diesel internal combustion engine injection pump test bench

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	JHDS
Model Number	JHDS-4	Power	Other, Electronic, 7.5kw,11kw,15kw,18.5kw,22kw,45kw
Usage	Other, Auto Testing Machine, Auto diesel engine pump test

test bench
1.High test precision.
2.Unique design.
3.Easy operation.
4.Good quality

Characteristic of diesel fuel injection pump test bench:

Use advanced frequency conversion speed-regulation technology
Use high performance frequency convertor, have advantages of hi-reliability, ultra-low-noise, perfect linear velocity tuning, and perfect active protection function.
Integration of main motor and work table, hi-constructional precision
Electric motor output directly, hi-output power
Low-current startup, save energy with hi-efficiency
Stable and reliable rotation speed, hi-testing precision.
Rotate clockwise or anticlockwise, speed range of 0-4000 rpm/min, preset at will.
Rotation speed, Temperature control, Count, pressure, advance angle are all displayed on screen or digital meter.
Product model: JHDS-1, JHDS-1NM, JHDS-2, JHDS-3, JHDS-4, JHDS-4NM JHDS-5

10. Product specification: 7.5KW, 11KW, 15KW, 18.5KW, 22KW, 30KW, 37KW, 45KW

11. Special order accepted

Functions:

Test each cylinder's oil supply capacity at various rotation speeds.
Statically check the start point and interval angle of oil supply of each cylinder.
Check and adjust the performance of mechanical speed regulators.
Test the electromagnetic valve of distribution pump.
Check the performance of pneumatic speed regulator.
Check the performance of pressure compensators
Measure the advance angle of advance device
Test the sealing performance of injection pumps.
Test the interior pressure of distribution pumps.

10. Test the negative pressure performance of pneumatic speed regulators.

11. Test the oil supply pressure of distribution pump.

12. Measure the oil-return quantity of distribution pump.

13. Self-suction joint.

14. Printer (optional).

15. Data-base (optional).

16. Measure rack bar travel (optional).

Accessories:
