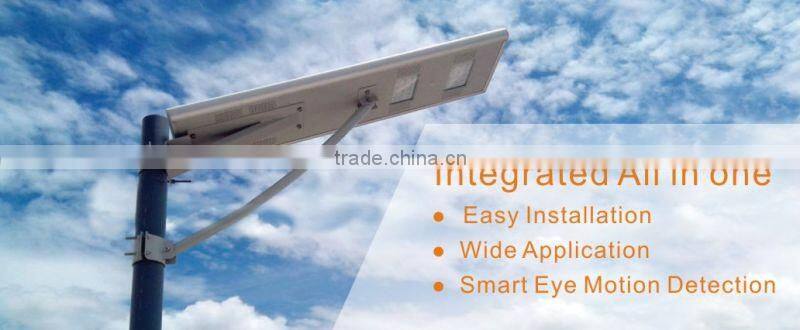

All in One Solar Walk Light, Solar Security Light, Solar LED Street Light

Look at Specification of SunMaster all in one solar power street light

Features:

1. Above solar street light system configurations are designed to allow the lamp to work for 10hrs per night, battery capacity with continuous 3 days backup. The configuration is based on scientific calculation and engineering project experience. For clients' specific project, please tell us the exact installation location and working hours, so that we can provide customized solution and quotation accordingly.

2. The batteries are suggested to be placed in a underground buried PVC battery box. In this way, it can avoid overhigh temperature due to sunshine exposure or too cold weather in Winter. It's wateproofand, heat-dissipative and theftproof, easy for replacement.

3. The pole patterns are standardized practical model recommended by us. It can be customized with more patterns available according to clients specific requirement.

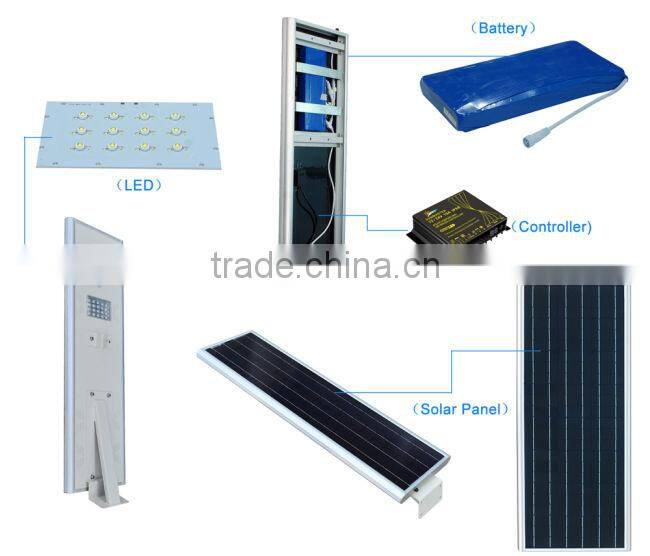

 Details of  SunMaster  all in one solar power street light Components

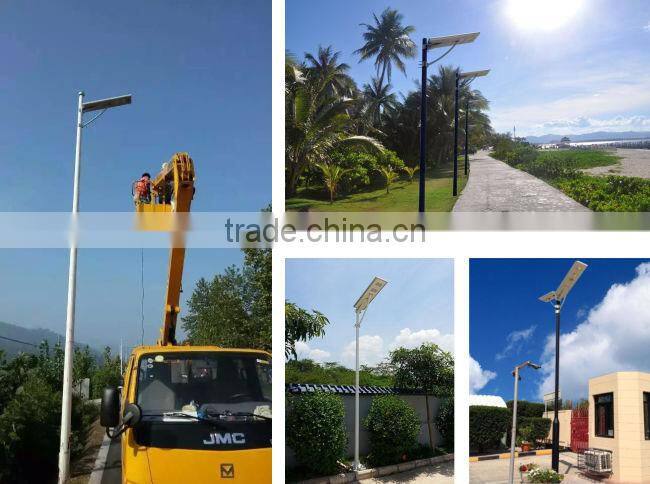

 Installation photos of SunMaster Solar Street Light

 6m 30W LED Solar street lighting

Buyer Feedback

 We can provide OEM Service for you, if you need

 After-Sales Service

1.We assure that the products are made with new materials.

2.We provide quality certificates and responsible to the testing data.

3.We provide product installation diagram.

4.We provide spare parts at cost price after product warranty expires.

5.We provide free on-site technical guidance during the project installation.(>500units)

6.We provide product information and suggestion if you need to change product specifications.

Can't help you to much? Click To Get On-line Service

Brief Description of SunMaster

We have 10 Years Experience

SunMaster is the leading manufacturer of commercial solar lighting and solar power systems. With 10 years of experience, SunMaster finished 1,000’s of successful solar lighting projects around the world. Our products offer the perfect solution where the power grid is either unobtainable or cost prohibitive. We provide experience with quality, stand behind our products, and take pride in our work.

Systems Tailored to Your Needs,Large or Small, We have something for everyone

With a group of staff with high quality and professional knowledge ,our specialized products are uniquely tailored to meet the different needs.

SunMaster currently owns manufacturing plants with a total area of 8,000 square meters, with multiple workshops for the production of solar panels, LED lights, pole and the relative parts. The company have an annual manufacturing capacity of 25,000-30,000 solar street lights and solar power systems. The company are ISO9001 certified.The products are CE, RoHs, SGS SonCap certified.

We look forward to working with you to help find cost feasible and environmentally friendly solutions to meet your solar outdoor lighting and grid free solar power needs.

 SunMaster Exhibition

 SunMaster Certification: CE, RoHS, FCC, IEC, TUV, ISO,SGS...

 SunMaster Workshop and Staff

 SunMaster Charity

  Contact Us

Can't help you to much? Click To Get On-line Service

Questions  for products

1.Q: How many cycles full charge  and dis-charge about your battery?

A: In 50% discharging deepness, it can be cycled for 1,200 times. In floating charging and dis-charging status, it can be cycled for 5000~6000 times.

2.Q: How to choose the system voltage 12V or 24V for street Light?

A: We can design the System 12v or 24v for solar street Light or 220-380V for normal street light.

3.Q: What’s the main difference between mono-cyrstalline and poly-crystalline solar panel?

A: Production process and cost. Poly technology is more mature since it is an earlier technology compared with mono. Poly solar panel is mainly used in solar street light.

4.Q: The controller of your solar street light has time control function?

A: Our solar controller is designed with 4 time-controls function.So you can set up the lighting time in any power requirement and divide it into 4 parts.Example: 12h/night(4h 100%+2h 70%+4h 50%+2h 30%)

5.Q:What information does SunMaster need to offer the best customized solar lamps?

A: (1).Which city will you install the solar street lights in? (2).Road width & road length? (3).What type of road?Highway, National, Suburb or Parking lot? (4).How many hours of lighting per night required? (5).How many continued days lighting without sunshine? (6).If retrofit lighting, what’s the existing light type and power? (7).Do you have the site photo? (8).Any other special requirement?

6. Q:What is an LED driver?

A: An LED driver is a self-contained power supply that has outputs matched to the electrical characteristics of your LED or array of LEDs. There are currently no industry standards, so understanding the electrical characteristics of your LED or array is critical in selecting or designing a driver circuit. Drivers should be current regulated (deliver a consistent current over a range of load voltages). Drivers may also offer dimming by means of pulse width modulation (PWM) circuits. Drivers may have more than one channel for separate control of different LEDs or arrays.

7. Q:What is a sun hour?

A: Sun hour is a unit of measurement of the intensity of sunlight on the earth at a given time that can be used for generation of solar power, recognizing factors such as climate and weather. A full sun hour is measured as the intensity of sunlight at noon, whereas less than a full sun hour will result during the hours before and after noon.

8. Q: How does the light know when to turn on and turn off?

A: SunMaster's solar controller uses a photocell and/or timer to control when the light will turn on, when the sun goes down, and to turn off when the sun comes up. The photocell detects when the sun comes down and when the sun comes up again. SunMaster can make the lamp last anywhere from 8-14 hours, and this varies on the customer's needs.The solar controller utilizes an internal timer that is pre-set for a specific number of hours to determine when to switch the light off. If the solar controller is set to leave the light on until dawn, it determines when the sun rise (and when to switch the light off) by means of voltage readings from the solar panel array.

9.Q: What happens if there are cloudy days?

A: Electrical energy is stored in the battery each day, and some of that energy is used to operate the light at night. Generally, we design your system so that the battery will operate the light for five nights without charging. This means that, even after a series of cloudy days, there will be plenty energy in the battery to power the light each night. Also, the solar panel will continue to charge the battery (although at a reduced rate) even when it is cloudy.

10.Q: What is the typical maintenance schedule for a solar lighting system?

A: There is no regular maintenance required for a solar lighting system. However, it is helpful to keep the solar panels clean, especially in a dusty climate.

11.Q: Do I have to charge the batteries?

A: Batteries are shipped 85% charged. The batteries will be at 100% charged within 2-3days of proper operation.
