Home > Products > LED Ceilling lights > New Anti-glare Die-casting Aluminum COB led downlight(10W 15W 20W 25W 30W)

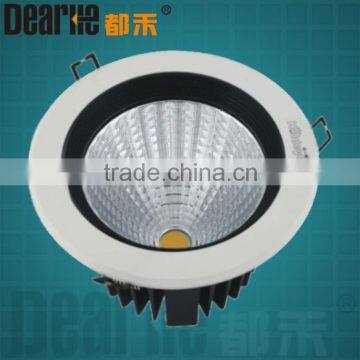

New Anti-glare Die-casting Aluminum COB led downlight(10W 15W 20W 25W 30W)
- SHENZHEN
- T/T Credit Card
You May Like
-
Hot Selling Quality 3W to 30W Led Ceiling Light factory price
-
2015 New Dimmable COB LED Down Light CE ROHS FCC
-
No glare high lumens aluminum led ceiling spot light 30w with 2 years warranty
-
exclusive design high lumens high quality good price COB led ceiling lamp 8w ,Any style any color
-
High brightness 5w COB MR16 round flat ceiling led light
-
halogen die casting aluminium ceiling spot light covers
Product Details
LED Light Source | COB | Install Style | Downlights | |
Input Voltage(V) | AC90-260V | Lamp Power(W) | 20 | |
Lamp Luminous Flux(lm) | 1600 | Lamp Luminous Efficiency(lm/w) | 80 | |
Color Temperature(CCT) | Cool White | Working Temperature(℃) | 0, 50 | |
Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
IP Rating | IP33 | Certification | CCC, CE, FCC | |
Place of Origin | Guangdong, China | Brand Name | DEARHA | |
Model Number | DH-TS |
Product Description
Specifications
cob led downlight 20W1.input voltage:AC90-260V
2.power :20w
3.CE/FCC/ROHS
factory price
New Anti-glare Die-casting Aluminum COB led downlight(10W 15W 20W 25W 30W)
Light, electricity, color parameters :
Parameter | Value | Parameter | Value |
LED Power | 5W COB | working hours | 50000h |
Luminous | 400-450lm | CRI | ≥80 |
Cool white | 6000K±500K | Nature white | 4200K±300K |
Warm white | 3000K±300K | Drive | CC / isolated drive |
Voltage | AC:90-260/50Hz/60Hz | Power factor | ≥0.9 |
Parameter | Value | Parameter | Value |
Cover | Milky PC | Material | Aluminum |
Working Temperature | -20-35°C | Humidity | 10%-80% |
Weight | 290g | IP | IP33 |
Product model | size | LED chip | Beam angel | Lumens | CCT(WW/NW/CW) | Certification |
COB-3W | 72.5*44mm | COB | 15.24.38 | 240lm±30 | 2700-6500K | CE RoHs FCC |
COB-5W | 84*45mm | COB | 15.24.38 | 400lm±30 | 2700-6500K | |
COB-7W | 110*63mm | COB | 15.24.38 | 560lm±30 | 2700-6500K | |
COB-9W | 110*63mm | COB | 15.24.38 | 720lm±30 | 2700-6500K | |
COB-12W | 121*73mm | COB | 15.24.38 | 960lm±30 | 2700-6500K |
Specifications:
Power | 20W |
Input Voltage | AC 90-260V 50/60Hz |
Led Type | COB |
Luminous Flux | 1600LM-1800LM |
Housing Material | Aluminum |
LED Chip | Epistar or New Genesis |
Color Rendering Index(CRI) | Ra≥80 |
Working Temperature | -35°C~+50°C |
Color Temperature | Warm White(WW):3000 ± 300k |
Natural White(NW):4200 ± 300K | |
Cool White(CW):6000 ± 500K | |
Life-span | 50000 hours |
Beam Angle | 35° |
Certification | CE RoHS FCC |
Size | φ156*90mm Hole Size:φ140mm |
Frame color | White, Highlight, Golden drawbench, Black drawbench; |
Warranty | 2Years |
Work Environment | Indoor use (applicable for dry environment) |
Fixing Ways | In-built |
Product Feature:
1. High power led, high brightness, long lifespan;
2. PF>0.92;
3. Special heat sink design, low working temperature;
4. NO radiation, no flickering;
5. Recessed mounted;
Product Applications:
1. Widely used in luxury villas, houses, apartments, high-end stores;
2. Cabinet and under counter lighting, office work station;
3. Back light, step lighting, lighting boxes;
4. Merchandising, exhibition stands and panels;
5. Use in specialty store, high-end leisure, entertainment clubs;
6. Use in shop, restaurant, hotel, counter, family decorations.
Payment Terms and Delivery:
Trade terms: EXW price
Sample lead time: Sample can be delivered in 5 days via FEDEX/DHL.
Payment Terms: 100% in advanced for sample order. T/T30% before production,T/T70% before shipment.
Packing: neutral packing box and Carton. No logo and company information. Customized package is available.
Color temperature
Warm white:2700k-3200k Nature white:4000-4500k Pure white:5500k-6500k Cool white:6500k-7500k
.
Product Pictures
Our Company:
Our Production:
Quality Control
Every order is checked throughout the production process by our QC department. 100% of the led down light
will be tested and keep lighting for 24 hours to test its quality reliability , and we will also test its temperature
after 24 hours’ lighting.Then after it is cool we again test 100% of the lamps to see if it still works well. Each
lamp should pass all these QC procedures before shipping to customer.
Packing:
Certifications Pictures:
Transportation:
