Product Details
Place of Origin | Anhui, China | Brand Name | ZhiJia | |
Model Number | FZH | Type | Other, Sleeve, Sleeve | |
Material | Bronze, Copper |
Product Description

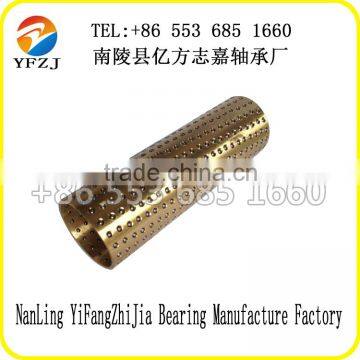

FZH Ball Retainer
Zhijia Manufacture – the best choice of FZH Ball Retainer, copper-based linear bearings, ball retainer, retainer,nylon retainer,high - qualitylinear bearings.
FZH Ball Retainer Specifications
FZH Ball Retainer is a copper alloy as a matrix, and on its outer surface, processedorderly, proper size, shape special cavities, in its cavitiesinserts Rolling Ball. Opening circumferential groove lock using the latest ball technology, can effectively solve the traditional point locking balland indentation lockball can not completely prevent the ball off problems.Hole bottom machined spigot 90 ° free rotation so that copper ballin the hole without falling off. Because of a diameter greater than the wall thickness ofthe ball retainers, so when using the ball upto keep the circle, cylindrical surface, direct contact with the mating hole axis, the matrix (retainer) floating in the middle, and Matching the difference is less than the radius of the hole and shaft diametersteel balls, namely balls and match for the interference fit, with high accuracy, flexible shaft and borerelative motion. A retaining ring replacements. Products applicable to Die, precision machine tools.
FZH Ball Retainer Technical Parameters
Load Capacity | 30N/mm2 | AssemblyInterference | 0.01mm~0.02mm |
Speed Limit | 6m/s | BallDiameter Deviation | <0.002mm<> |
FrictionCoefficient | 0.01~0.08 |
FZH Ball Retainer Application Features
It has a certain gap between the hole and the shaft having a traditionalrelative motion, and the motion coefficient of friction between the large hole and shaft, ball retainer after use, so no direct contact with the shaft and thehole, but through the middle trace interferencethe contact with theball, so high precision. Rolling friction instead of sliding friction, the rolling flexible, low friction, long service life.In both the rotation, another movement of the occasion, with no oil or refuel thesleeve and the shaft to match, although they would meet the requirements, but to a lesser movement precision rolling bearing, can only meet the relative rotation of the occasion, andthe use of ball holdingafter the circle, the above two conditions are satisfied, this product has been widely used in Die frame, high-precision machine tools, machine tool accessories and high accuracy is required axial or neckto move simultaneously occasions. Be moredifferent occasions, respectively copper-elect linear bearings, linear bearings and plasticbase aluminum linear bearings.
FZH Ball Retainer Recommended Matched Parts
1. Theguide sleeve : Material GCrl5, YB9, heat treatment, hardness HRC62 ~ 66, according to technical conditions GB / T12446 and the shaft with 0.01 to 0.02 should haveradial interference, the surface roughness of # FormatImgID_0 #
2. Axis : Material GCrl5, YB9, heat treatment, hardness HRC62 ~ 66, according to technical conditions GB / T12446, tolerance of the shaft using h5, the surface roughness of # FormatImgID_1 #
3. Measure : Size deviation values common measurements (pneumatic measuring instrument, dry-foot outer diameter, inner diameter dial gauge, etc.) measuring shaft bushings and ball, you can determine the amount of interference with the post, Ymax = dmax + 2d '-Dmin, it requiresthe amount of interference of 0.01 ~ 0.02mm.
Packaging Details:Standard export packing, or as customers' requirement.
Delivery Detail:7-30days
1.We have significant quality advantages, the price and service advantages
2.The years of technology and production management experience, product quality and reliable
3.Automation and special machinery production and processing, to ensure theaccuracy of the product, saving timeand lower labor costs, making products with prices
4.The number of domestic counterparts, the company jointly formed a large and ample supply base, reliable delivery capability, delivery is guaranteed
5.Support customers more successful as our team beliefunremitting efforts, it is the most worthy of your own suppliers in China
6. Free latest offer price, authoritative technical advice, more products and services quickly contact us!
YiFang ZhiJia Bearing CO.,LTD. is the enterprise who manufactures self-lubricating bearing. We were established in Apr. 2014, and located at Eling Town, Nanling Country ,Wuhu, Anhui,and 30 Km far away from Yangtze. A workshop occupies 3000 Sq meter and annual output of bearings 3 million sets. We established the improved quality management in line with international standard on basis of science, innovation. Through continuous efforts and with high quality products, our products are sold in EU and America. We are committed to be the first-class enterprise in manufacturing self-lubricating bearings by improving management and competition and recruiting elites.
Our products are widely used in automobile, engineering, construction, metallurgical, hydraulic, turbine, rolling mill machinery, instruments, vessel, mining and heavy machines, injection plastic, as well as heavy machinery, harbor logistic equipment, wind driven generator and sliding bearings in main engines. Etc.
We have a significantquality advantages, the price and service advantages!
The latest offer, authoritative technical advice, more services!Quickly contact us!
Tel:+86 553 6851660
Phone numbers: +86 17756525121 +86 15212228380
AliAccount:whyfzj
Address:ElingVillage , Sanli Town , Nanling County , Wuhu , Anhui , China
1. Are you a factory or a trading company?
We are a professional design, production and sales of copper sets,steel sleeve, oil-free self-lubricating bearings and bushings, self-lubricating slide, mosaic products,non-standard parts and other products.
2. Where is your factory and how can I visit it?
Our factory is located in Wuhu City, Anhui Province of China, you can visit our company's Web site or call us to get more specific details, ourtelephone number is: +86 5536851660
3. How long can I get some samples for checking and what about the price?Whether the costs can be offset from the bulk sample order aftersample fee prepaid
Sample delivery time is usually 1-5 days, because the delivery distance factor requirements for different products and samples, the exact time and require you to contact us to confirm; the costsof the sample depends on the product's material, size, precision and other factors , specific communication needs specific products; if the sample volumeis higher than the cost of the product price, for the convenience ofour customers and give you the greatest benefits when the cost of the follow-up sample quantitiescan be calculated as the product price (many products we have readystock,It is not required to chargethe cost of samples, according to the normal unit prices can, which requires you to contact us to confirm)
4. How is the warranty of the products quality control?
We hold the tightend quality controlling from very begining to the end, processing of each process in the process of inspection, finished product inspection before shipment and aim at 100% error free.
5. How tocooperatewith you?
First, get in touch with us, send us anonline contact and e-mail, phone calls also can be
Tel: +86 553 6851660
+86 17756525121
+86 15212228380
Look forward to serve you, to support you more success and wish to cooperate with pleasure, I wish you good luck
