Home > Products > Electronic Parts > Railway Relay( Type:JJDZ3-33)

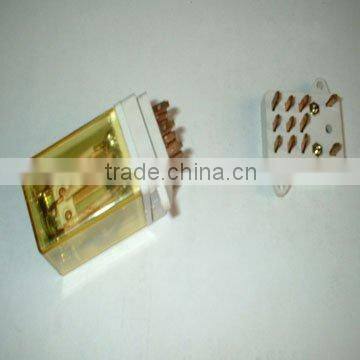

Railway Relay( Type:JJDZ3-33)
- Tianjin Qingdao Shanghai
- T/T Credit Card
You May Like
Product Details
| Brand Name | Zhong Rui | Model Number | JJDZ3-33 | |
| Place of Origin | Shaanxi, China |
Product Description
Specifications
Intermediate RelayType: JJDZ3-33
our products are qualified by ISO9001:2008 and IQNet with high quality standard.
Intermediate Relay (Model:JJ DZ 3-33)
1. Competitive price
2. Well and high quality control
3. Prompt delivery
4. Best service
Technical Indicators (JJDZ3-33)
Contact Form | Contact form 3Z, 3H, 3D, Contact Switch 3A |
Coil Voltage | DC;24V |
Coil Power | DC;<=3W |
Contact Load | 3A AC220V/3A 28VDC |
Contact Material | Agcdo |
Outline Dimension | 33.3X40X50 |
Contact Resistance | 50mΩ(1A6VDC) |
Insulated Resistance | 500mΩ,500VDC |
Max Switching Voltage | 250VAC |
Current | 3A |
Power | 1000VA 90w |
Withstand Voltage | 2000Vrms 1min (Between Coil and Contact) |
1000Vrms 1min (open coil) | |
Pick-up Voltage | <=75% |
Release Voltage | <=15% |
Environmental Temperature | -30~+40 degree centigrade |
Electrical life | 1X105times |
mechanical life | 5X107times |
weight | 85g |
We can provide a variety of Relays for Locomotive, if you are interested in our products, please do not hesitate and contact with us any time, welcome to your enquiry.
We insist on "quality the first, customers the first".
