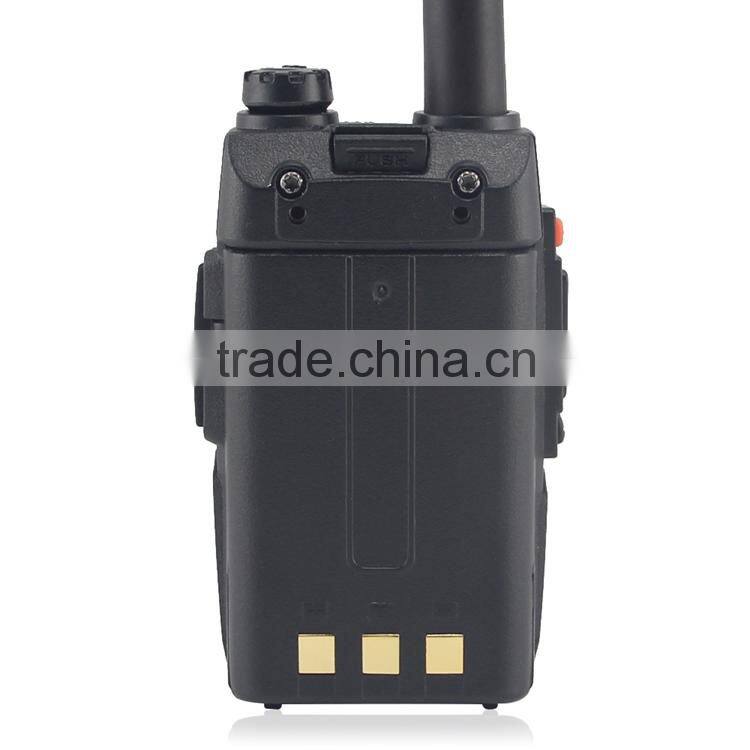

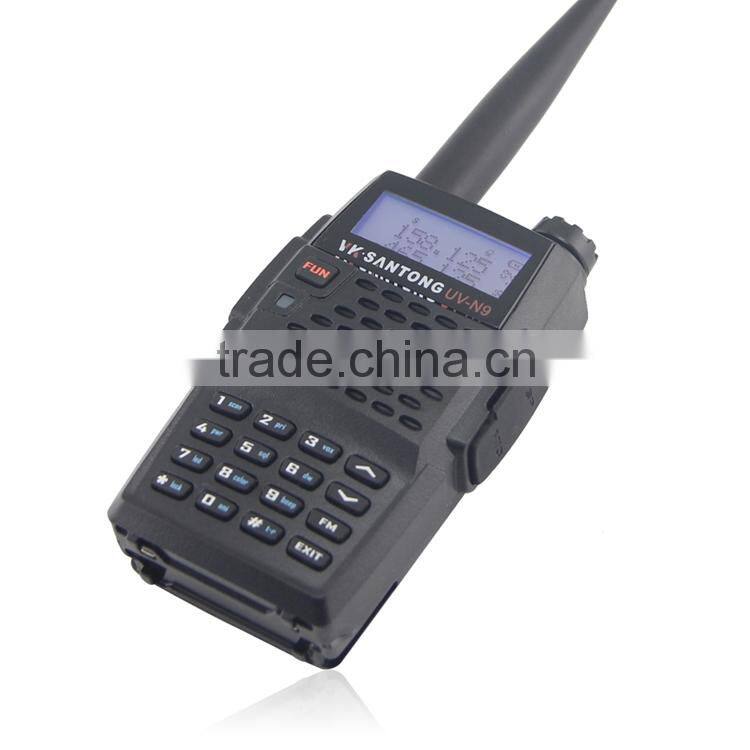

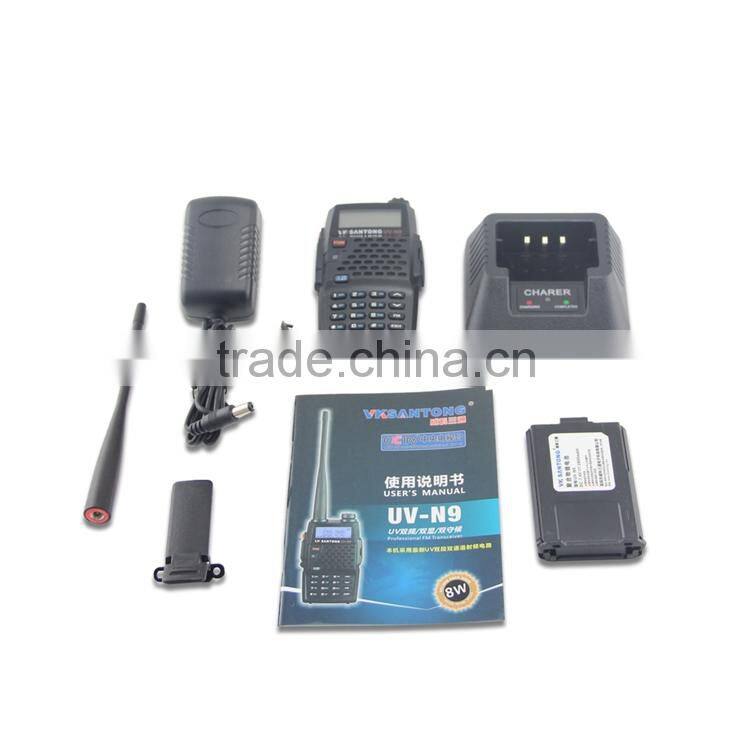

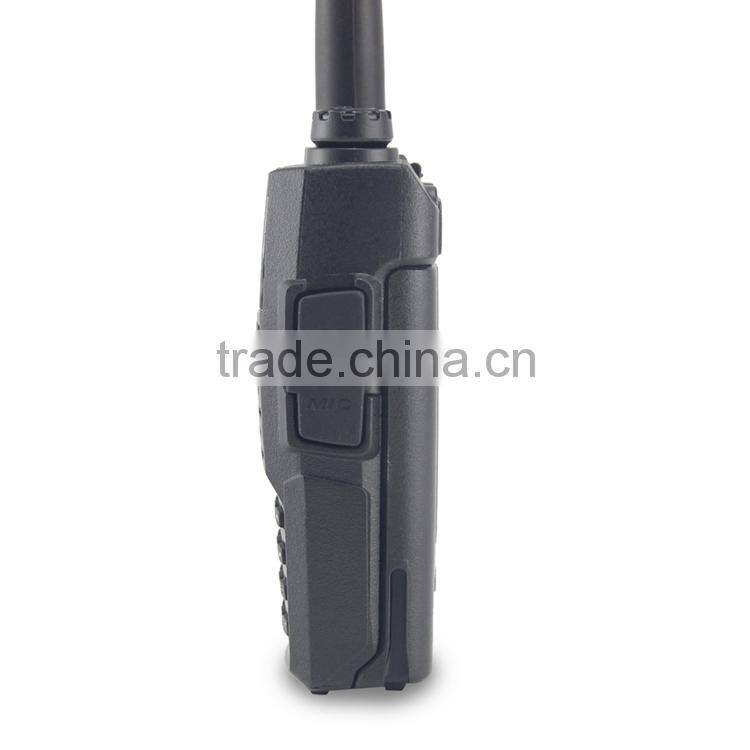

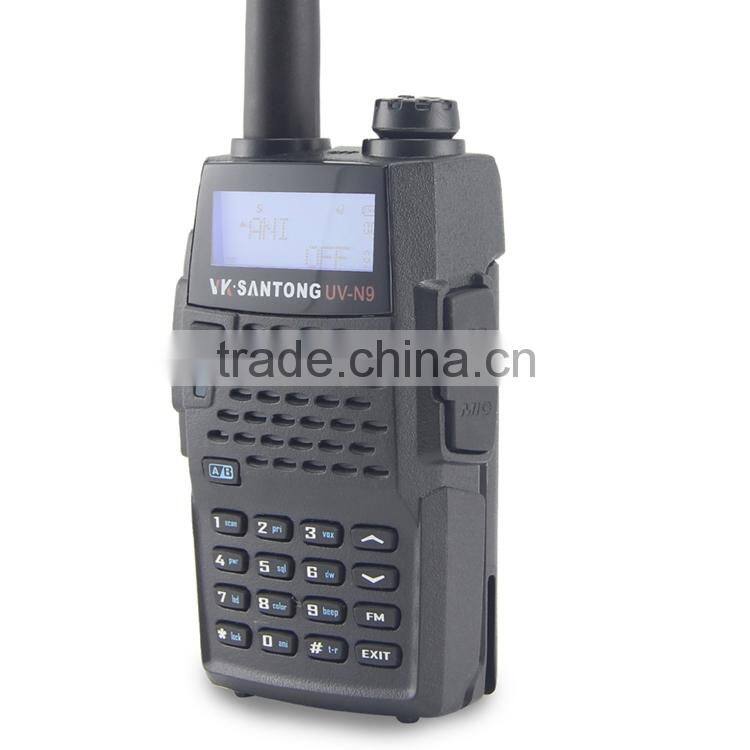

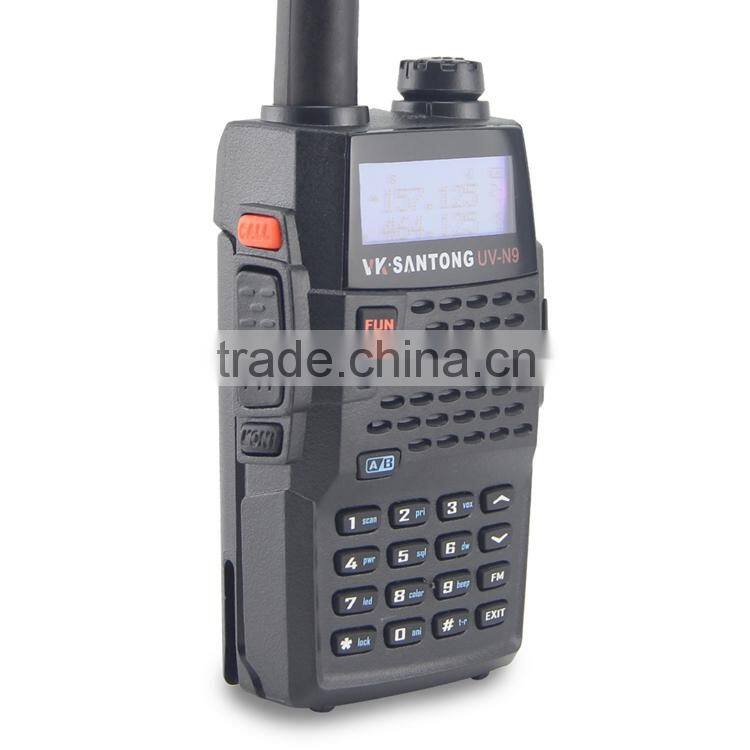

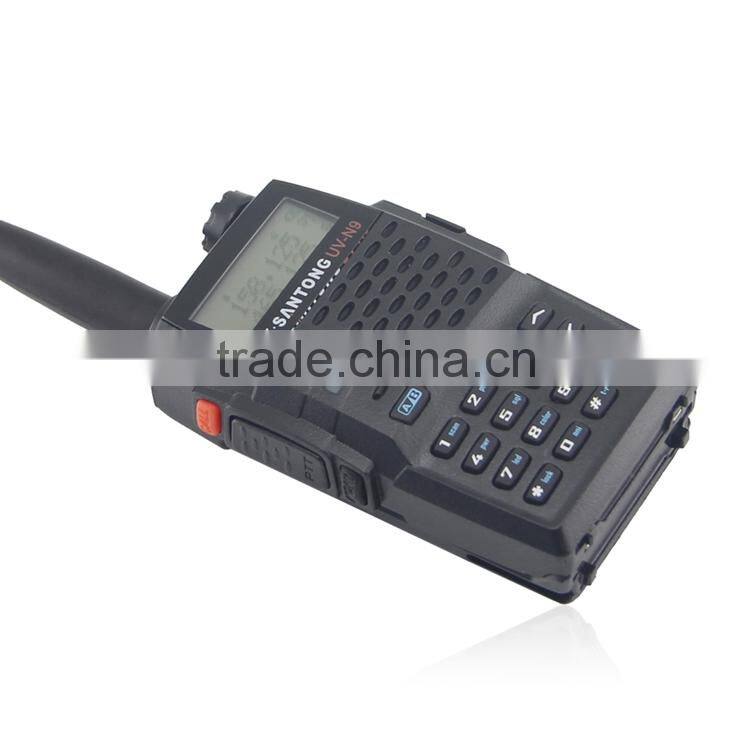

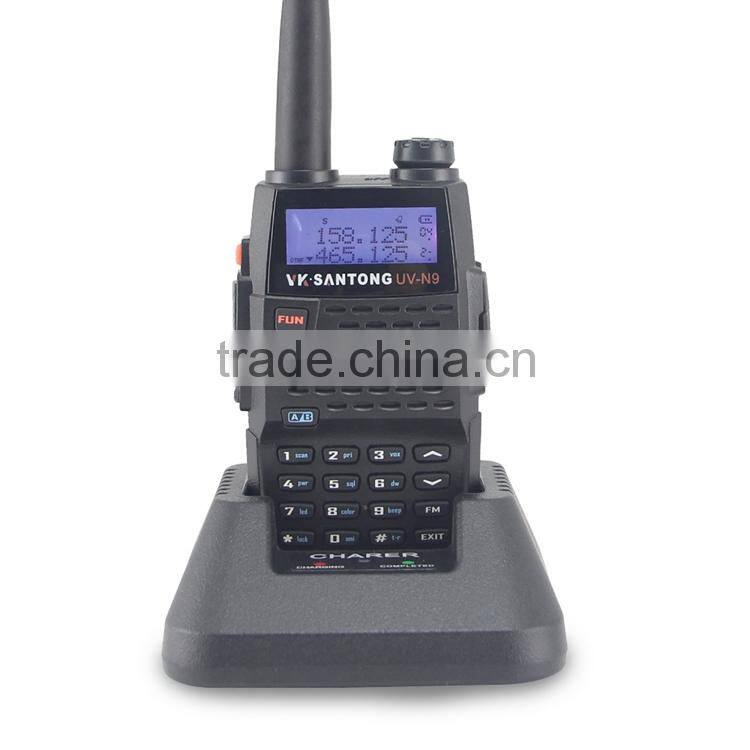

VK-N9 5W Digital Two Way Radio VHF Radio Dual Band Walkie Talkie For Construction Site

FOB Price

US$ 32 - 50 / Piece

10 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Wholesale 5W Digital Two-Way Radio VHF UHF Dual Band Walkie Talkie for Construction site

Digital Two Way Radio,VHF UHF Walkie Talkie,Dual Band Transceiver,Interphone,Transceiver Receiver,FM Transceiver,

Wakitaki,Portable Multi Band Radio,Mini FM Radio,VHF Radios,Mini Citizen Band Radio,Mini FM Radio,Portable Radio,

Wireless Phone,Digital Walkie Talkie,Taxi Radio,Home Radio,Mobile Radio,Retro Radio,HF Radio transceiver,ham radio,

Two way radio with Long Distance,Low Cost Walkie Talkie,Long Range Powerful Radio,Amateur Radio,Multiband ham radio,

Dual Band Walkie Talkie For Sale,Multiband transceiver,Multiband amateur transceiver.

Product Description

1.Output power: 5W

2.Frequency range: VHF:136-174MHz,UHF:400-470 MHz

3.Dual Band/Standby/Display

4.FM Radio

5.BCL function

6.Battery saving

7.VOX Function

8.DTMF encoding & decoding

9.Emergency alarm

10.High and low power switchover

11.Time-out timer (TOT)

Technical Parameters:

General
Frequency Band	VHF/UHF
Frequency Range	136-174MHz/400-470MHz
Channel Capacity	16
Channel Spacing	25KHz
Antenna Impedance	50Ω
Microphone Impedance	600Ω
Operating Voltage	7.4V DC±15%
Frequency Stability	±2.5ppm
Battery	1800mAh(Polymer Li-ion)
Compatible With American Military Standard(Mil-STD-810C/D/E)
Transmitter(EIA-RS 316B STANDARD)
RF Power Output	≤8W
Modulation Type	FM
Modulation Sensitivity	<15µV
Modulation Distortion	≤3%
Max Freq Deviation	<5KHz
Occupied Bandwidth	≤16KHz
Modulation Feature	±3dB
Spurious Radiation	≤7.5μW
Adjacent Channel Power	≤-65dB
Receiver
Sensitivity(12db SINAD)	≤0.15μ(12dB S/N)
Squelch Sensitivity	≤0.1μV
Audio Power output	1W/16Ω
Audio Respond	+2-8
Operation Bandwidth	>5KHz
Co-channel Rejection	≥-8dB
Blocking	≥85dB
Adjacent Channel Selectivity	≥65dB
Standby Current	60mA,15mA
Spurious Rejection	≥60dB
Intermodulation Resistance	≥60dB
