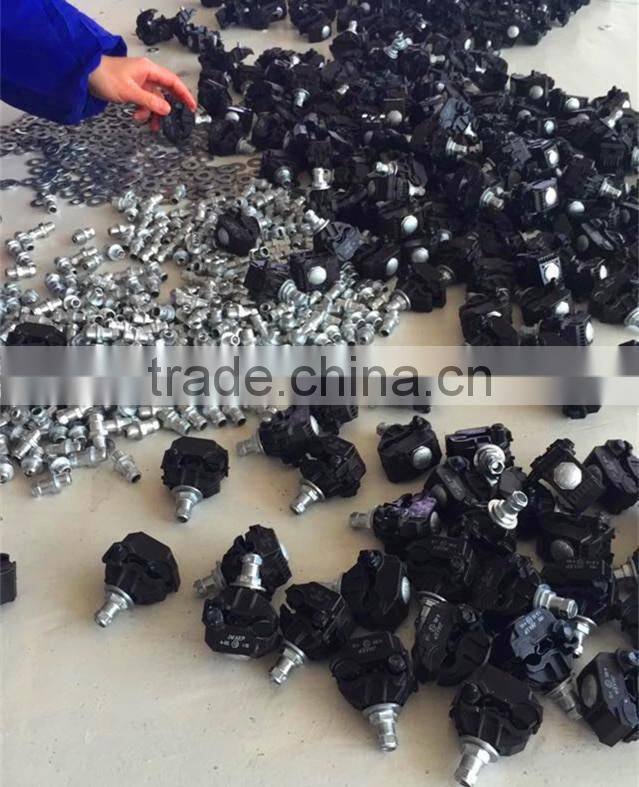

Factory Supply Piercing Insulation Connector High Quality Free Samples

FOB Price

US$ 0.45 - 4.5 / Piece

10 Pieces(Min. Order)

Port Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	Qiaotai
Model Number	T041	Type	Adapter
Application	Power	Gender	Female

Product Description

This type insulation piercing connectors are suitable for all types of LV-ABC
conductors as well as connections to service and lighting cable cores.
When tightening the bolts, the teeth of the contact plates penetrate
the insulation and establish a perfect contact.
The bolts are tightened until the heads shear off.
Stripping of insulation is avoided. Suitable for aluminum and copper conductors and
components not losable, end cap attached to body, Insulation material made of
weather resistant glass fiber reinforced polymer,
contact teeth made of tinned brass or copper or aluminum,
bolt made of dacromet steel.

insulation piercing connector

TYPE	Equivalent type	Applicable conductor range mm
		Main line section mm²	Branch line section mm²
QT756 QT041 QT101 QTEP QTEP QT2-95* QT2-150* QT3-95 QT4-150 QT6 QT240	JJC888 JJC-1 JJC-2 JJC-3 JJC-4 JJC-5 JJC-6 JJC-7 JJC-8	0.75-6 6-10 1.5-2.5 16-95 1.5-10 16-95 50-150 25-95 50-150 120-240 95-240	0.75-6 1.5-6 1.5-10 1.5-10 6-35 4-35(50) 6-35(50) 25-95 50-150 25-120 95-240

* fits up to this conductor size, but current rating max of connector is lower tha
possible cable ratings.
Note: 1.The stainless steel bolts and nuts, washer can change it according
requirement.
2.The tin-plating copper teeth and aluminum alloy teeth can change it
according requirement.
