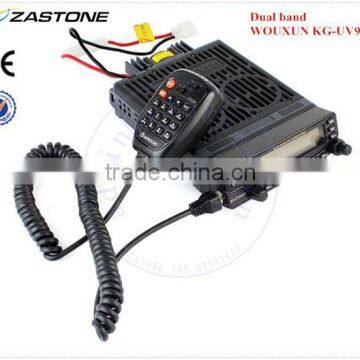

999CH Full duplex cross-band repeater Quad Bands dual band mobile radio Wouxun KG-UV950P

All of our items are Brand new

Model

KG-UV950P

Frequency range

Frequency range suitable for and region of any country

RX:26.000-29.995MHz and 50.000-53.995MHz

108.000-179.995 and 320.000-349.995MHz

400.000-479.995MHz and 700-985MHz

TX26.000-29.995MHz and 50.000-53.995MHz

136.000-174.995MHz and 400.000-479.995MHz

Memory channels

999

Frequency step

5/6.25/10/12.5/20/25/30/50/100kHz

Work mode

F2D/F3E

Operating temperature

-20ºC-+40ºC

Antenna impedance

50ohm

Power requirement

13.8VDC±15%

Weight

1260g (Mobile/Base transceiver)

Dimension

190x140x44mm(Mobile/Base transceiver)

Description of function

Full duplex cross-band repeater

Dual speaker and dual output

Both stations can form combined same or different band repeat

Same or different band simultaneous reception UU VV UV or VU

Full duplex working mode on A/B areas

UV or VU Duplex cross-band repeat

Dual display

Over 999Memory channels

Remote-head mounting capacity

Multiple speaker output settings

Air band receiving Function and AM mode receiving capacity

High output power :VHF 50W UHF 40W

CTCSS/DCS encoding and decoding CTCSS/DCS Scanning

DTMF hand microphone with speaker, TX/RX indicator and Volume controller

Group calls all calls and selective calls

Incoming ID display

Priority channel scanning

8 groups scrambler

APO power management

Bandwidth selectable

Chinese/English voice guide

Automatic temperature testing

2100Hz /1750Hz/1450Hz/1000Hz single tone pulse frequency

Stun and kill function

Three colors backlight setting

Multiple cooling ways

Frequency/channel scanning with CTCSS/DCS detection

Simultaneous scanning on AB areas

Specifications

Transmitter

Wide bandwidth

Narrow bandwidth

Type of modulation

16k¢F3E

11k¢F3E

Adjacent channel power

>=70dB

>=60dB

Spurious

>=60dB

>=60dB

Max frequency deviation

±5kHz

±2.5kHz

Frequency stability

±5pm

Audio distortion

<=5%

Output power

50W(VHF)

40W(UHF)

Adjacent channel selectivity

<=70dB

<=60dB

intermodulation

<=65dB

<=60dB

Spurious response

<=70dB

<=70dB

Signal to noise ratio

>=45dB

>=40dB

Audio distortion

<=5%

Audio power

Transceiver<=3W

Hand microphone<=1W

Sensitivity

0.25µV(13dB SINAD)
