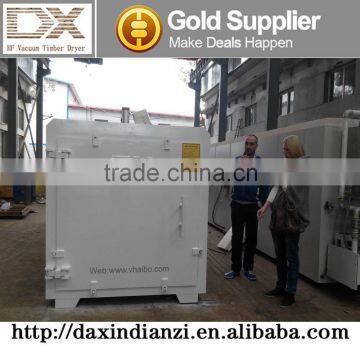

Factory Directly Sale DX-3.0lll-DX High Frequency Vacuum Wood Dryer Equipment

 1.Technolog parameter

Note : The oscillation power  is theoretic , actually it needn't so big power .

For example 3cbm and4cbm the power are  10KW but actual application of power max need  5kw

per hr usually use 4 kw and 3kw per hr for 3cbm and 4cbm  . The machine don't work 24 hours for

a drying process for per day.
As my machine work principle is when the temperature arrived the temperature's opper limit it will

 keep constant temperature to standby state.Always like this circulation untill arrived final moisture.
So if drying process for the soft wood  total need 3day but have 1.5 days need electricity power

another 1.5day is keep constant temperature state .

2. Working flow

 Our machine is woring in customer's factory !

3.Main component of vacuum oven drying process

(1)High strength structure oven body

   This makes the whole machine stronger and more leak-proof of vacuum.

(2) High frequency generator

  This is the core of this machine, all procedures and main technology are inside,

  Including PLC,electric valve etc.

(3)Cooling tower

  This part is mainly used in hot weather, the main usage is to cool the internal

  temperature, guarantee the drying speed and quality.

(4)Timber cart

  We have both full-auto feeding mode and manual feeding model, but the full-auto is

  only used on 8/10/12/15cbm models, because the smaller doesn’t need this, the

  loading quantity is enough to be push into the oven by workers.

(5)Stainless condenser

  This parts are also to reduce the internal temperature when drying, it will let the

  steam change into water droplet, to guarantee the drying speed and quality.

(6)Pressure system

  We have both hydraulic and pneumatic, that means common oil pressure system

  and air pressure system, they are to prevent the wood becoming bend and crack.

(7)Perforated aluminum plate and wooden bar

  These two parts are to separate wood to dissipating heat quickly, guarantee the

  drying speed.

(8)Final moisture

Warranty: 1 year for the whole machine.

After-sale service: Engineers available to service machinery overseas.

 If there were some parts broken by itself, we can supply the parts freely within 1 year.

Our customers come from different countries,we warmly welcome you to visit our factory !

 As usually we adpot standard export packing, plastic and foam, fixed by wood pallet, shipped in container by sea!  we can also packing the machine according to your requirements .

 If you have any other questions , please feel free to contact with me in any time !
