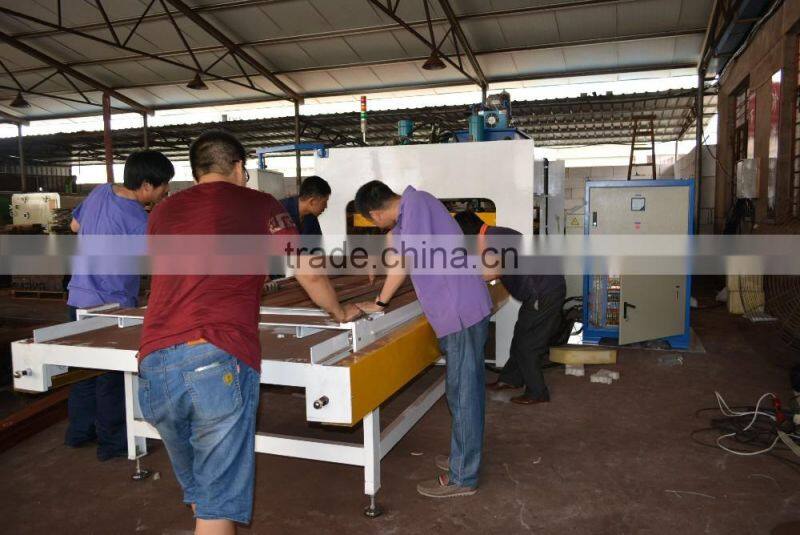

HIGH FREQUENCY HEAVY-DUTY BOARD JOINTING MACHINE

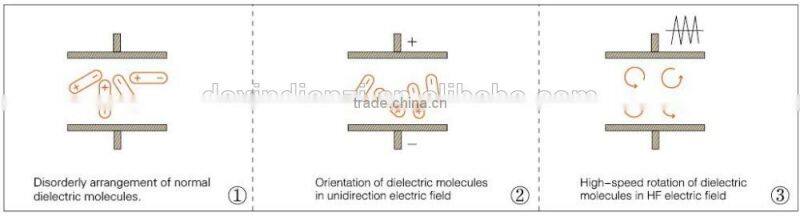

HF generator heating principle :

HF generator is the core of dielectric heating equipment . it applies three phase alternating current to form hf oscillation electric field ( 6.78MHz ,27.12MHz) .Under this hf electric field ,the molecules like water ,glue or pvc will be polarized and form two poles (negatibe pole and positive pole ) .The electric field will change pole rapidly meanwhile all the moleculed will alsomove in very high speed .The friction and impact among molecules can manker material get heated in short time .Then the water will be vaporized ,glue becomes solid and pvc gets softened rapidly .

Advantages :

(1) High output : Average timber output increased by 5%--10% .

(2) High Frequency : Finish one piece of plate in 1--3 mins . It's more efficiency than general board jointing

     machine in winter .
(3) Saving energy : Low deformation , only heat glue line , wooden timber is unheated , To finish 1 clubic              meter board only cost 5--30 Kw.H .
(4 ) Good quality : High frequency board jointing machine can examine the moisture content of wooden                   material during heating .
(5 ) Easy loading and unloading : Low labor intensity ; It can join vaties of wooden timber . such as solid board       , chipboard ,and MDF, bug--killing and sterilization .

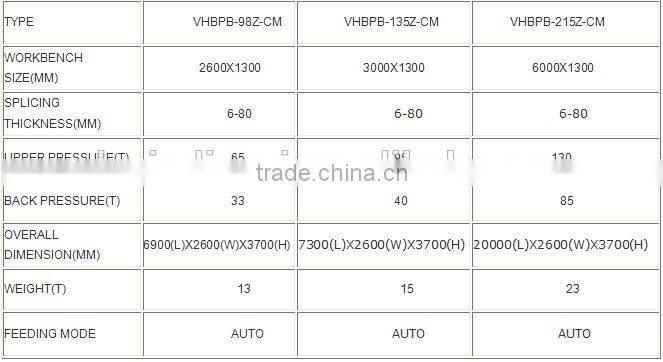

Specification

Packaging & Shipping

Packaging : Standard export packing ,plastic and foam ,fixed by wood pallet ,shipped in container by sea .

Shipping : 15-20days after receive the advance payment .

Certifications :

Our Services

The warranty time is one year for whole machine ,We will be free to maintain machine

for user in whole service life .
