TDR123Z 48v 350w electric bicycle
- Shanghai
- T/T Credit Card
You May Like
-
350w 48v cheap electric bicycle for sale in india
-
Romai TDR107Z 48v 350w dc brushless hub motor electric bike
-
ROMAI TDR122Z 48v 350w e-bike
-
TDR110Z 48v 350w dc brushless hub electric motorcycle
-
Romai electric bicycle,electric bike 350w 48v 12ah e bike
-
Romai! hot sale electric bicycle made in china export to india
Product Details
| Wattage | 251 - 350w | Voltage | 48V | |
| Power Supply | Lithium Battery | Wheel Size | Other, 16“ | |
| Motor | Other, Brushless, 350W Brushless(48V) | Certification | CE | |
| Frame Material | Steel | Foldable | No | |
| Max Speed | Other, 35km/h, 35km/h | Range per Power | 31 - 60 km | |
| Place of Origin | Henan, China | Brand Name | Romai | |
| Model Number | TDR123Z |
Product Description

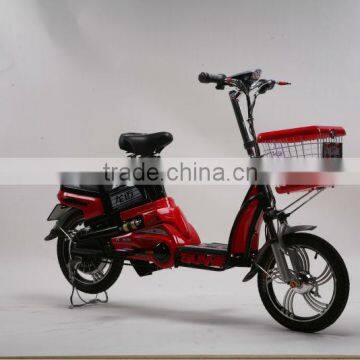

TDR123Z 48v 350w electric bicycle
Romai electric bicycle
Model NO.:TDR123Z
Product specifications:
1.Product Size(L*W*H): 1600*310*1030 mm
2.Wheelbase:1050mm
3.Mini Ground Clearance: 200mm
4.Front Brake:Drum Brake
Rear Brake: Drum Brake
5.Max Loading Capacity: 75kg
6.Driving Distance Charge:Max 50km
7.Packing Size(L*W*H): 1280*380*650 mm
8.Front tire: 16*2.125
Rear tire: 16*2.125
Motor:
1.Size: 16*2.125
2.Output power: 350W
3.Rated current: 6.5A
4.Rated torque: 10.6N.m
5.Insulation class: E
ntroller:48v
Controller:
1.Voltage 48V
2.Rated power 350W
3.Maximum Power 600W
4.Maximum Current 17A
5.Mosfet 6pieces
6.Phase Angle 120°
Lead-acid Battery:
| Battery Model | Voltge/Capacity | Weight | Size(L*W*H) | |
| 6-DZM-12 | 12V 12Ah | 4.3kg | 151±1mm*99±1mm*97±1mm | |
| 6-DZM-20 | 12V 20Ah | 7.1kg | 181±1mm*77±1mm*170±1mm | |
| 6-DZM-28 | 12V 28Ah | 11.0kg | 196±2mm*130±1mm*154±2mm | |
Note:
1.Delivery time: 20 days after receiving the deposit.
2.MOQ : one 20"FCL container;
3.Delivery Term: FOB Shanghai
4.Warranty :The key parts is 1 year after the shipping date on B/L.
5.Payment Term: 30% Down payment, 70%T/T before delivery.
6.Validity: 30 days from offer date.
Established in 2001,Shanghai Houlong Electronics Co.,Ltd is a professional manufacturer of e-bikes.e-tricycles and spare parts,contributing his power in foreign trades and gain very good achievements.As a subsidiary of Shanghai Minyuan(Group)Company,with strong back from brother company Puyang Romai Electric Vehicles Co.,Ltd.,Houlong has did excellent job in e-vehicles exporting.Products branded by Romai cover e-bikes.e-tricycles and spare parts.which are all manufactured by exclusive factory in Henan Province.With well-trained staff and advanced manufacturing equipment,the annual output reached to millions.
Romai E-vehicles have been exported to Europe,America,Middle Asia,Southeast Asia and more than twenty countries in the during years.
What we serve and what we feature:
Efficient order processing
Quick inquiry response
Multi payment terms
Punctual delivery
Multi ports choices
Good credit
1. Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test.
2. Q: What’s the delivery time?
A: It takes 30 days for production based on specifications for your order and quantity.
3. Q:What's your payment terms?
A: We usually accept T/T as the main payment terms, and other payment are negotiable.
4. Q:What's your warranty terms?
A: Different components have different warranty, but for wholesale business, we can offer a certain percent easily damaged parts for free.
5. Q: Do you have the products in stock?
A: Sorry we don't have stock, we obey BTO (make to order). Sample order can be faster.
6. Q: How does your factory do quality control?
A: Quality is priority. Our professional staff will do quality control. Also each product will be fully assembled and carefully tested before packing and shipping.
