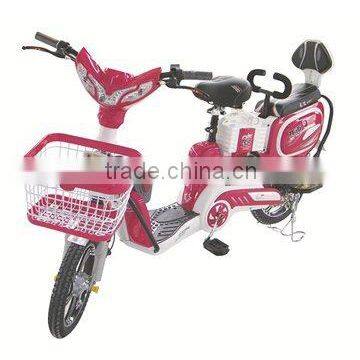

Electric Scooter-Vehicle-CCC/CE

Specification

Parameter

Motor:

350W 48v Brushless Hub Motor

Batteries:

48V 10Ah Li-ion battery

Controller:

power: 350w 48V

Under voltage protection value:42±1V

Over current protection value:<18A

Charger / Charging time:

48 Volt DC Output, 110-240 Volt /50-60Hz AC Input intelligent Electronic / 4-8 hours

Max Speed:

12.5 mph(20km/h )

Frame Material:

steel

Rims:

stainless steel flexible hose

Torque:

9 N.M., climbs up to 25º hill

Range:

35-42km depending on Riders Weight, Road Conditions Etc

Brakes / Break handle:

Brake hydraulic system / tractor half Al break handle

Swith:

Single point switch with Plastic circle

Horn:

48V plastic horn

Flywheel:

Four-hole motor-driven skid

Bearing:

6000#bearing

Rearview mirror:

Not include

Wiring harness:

High quality wiring harness

Lock part:

plastic * Aluminum * zinc alloy

Charging seat:

Three holes charging seat

Front / Rear shocks:

Spring shock absorber

Main stand / Single stand:

16''main stand,16'' single stand

Basket / Skirt nets:

quadrilled basket with netting on top/electric bicycle Skirt nets

Aluminum coil / Wheel:

18 inch×36hole aluminum coil

18 inch×2.125 integrated front wheel

Carbon Brush:

no

Chain / Spoke:

Standard electric chain / 12K spoke 140

Dashboard:

Displays voltage, lighting, system status, charging status

Kickstands :

Steel, white, with side stand

Lights :

48V LED headlamps

Front Fork:

16 inch front fork

Saddle:

Comfort Motorcycle style

N.W:

≤40kg

Dimensions(L*W*H):

1660*710*1120 mm ( packing:1700*750*1200 mm)
