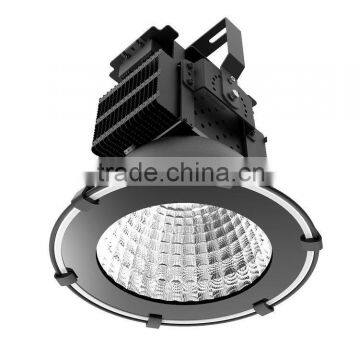

2014 new design 400w led flood light for factory airports
- shenzhen
- Credit Card
You May Like
-
High brightness 400 watt led flood light for outdoor railway station
-
High lumens 500 watt led flood light for industrial lighting
-
High qaulity 30w led flod light,customized led flood light
-
30 watt garden out door light led flood light high lumen
-
50w 40w 30w 20w led fluter light warm white high lumens
-
IP65 outdoor waterproof 110 volt garden led flood light
Product Details
| LED Light Source | cree | Input Voltage(V) | 85-265V AC | |
| Lamp Power(W) | 400 | Lamp Luminous Flux(lm) | 44000 | |
| Lamp Luminous Efficiency(lm/w) | 110 | Color Temperature(CCT) | Cool White | |
| Working Temperature(℃) | -40, 55 | Working Lifetime(Hour) | 50000 | |
| Lamp Body Material | Aluminum | IP Rating | IP65 | |
| Certification | CE, EMC, LVD | Place of Origin | Guangdong, China | |
| Brand Name | PL-flood light | Model Number | PL-HB400W |
Product Description
Feature of led flood light:
216 °adjustable angle
13 flexible positions makes project angle can be adjusted within 216 °.
Copper heatpipe
By riveting the heatpipe to the fins , the heatpipe can conduct heat rapidly from chips bottom to the fins, greatly lower down the
temperature of light source, extending its life span.
Respirator design
Waterproof design, eliminating mist, avoiding condensation,improving quality,extending the life span.
92% reflective rate
Reflector's beam angel 62 °,Reflective rate could reach up to 92%.
IP rate:ip65
waterproof for outdoor and indoor use
Perfect solve led dissipation problem in the follow ways:
- with massive fins colling technology
- entire lamp disspationtechnology
- optimized airflow
Specification of led flood light:
LED Power | 100W | 150W | 200W | 300W | 400W |
System Power | 106W | 158W | 208W | 310W | 410W |
Rated Voltage | AC90-265V 50-60HZ | ||||
Power Factor | >0.9 | ||||
Power Efficiency | >85% | ||||
Driver | HLG-100H | HLG-150H | HLG-240H | HLG-150H x 2PCS | HLG-240H x 2PCS |
LED Quantity | 200pcs SMD3020 | 90pcs high power LEDs/300pcs SMD3020 | 130pcs high power LEDs/380pcs SMD3020 | 192PCS CREE XBD; 160PCS CREE XPE/XPG; | 280PCS CREE XBD |
LED Efficiency | 90LM/W | ||||
Light Efficiency | >80% | ||||
Led Initial Flux | 8000-9000LM | 12000-13500LM | 16000-18000LM | 24000-27000LM | 32000-36000LM |
Color Temp. | 2700-3500k,4000-4500k,6000-6500k,7000K(white/warm white/natural white/commerial white) | ||||
CRI | >80 | ||||
Junction Temp. | <80℃ | ||||
Operation Temp. | -40~+55℃ | ||||
Storage Temp. | -25~+65℃ | ||||
Protection class | IP65 | ||||
Reflector Angle | 62º | ||||
Dimension | D374*459mm (Including reflector) | D374*459mm | D374*467mm | D374*459mm | D374*497mm |
Net Weight | 6.5KG | 6.5KG | 7.5KG | 8.5KG | 10KG |
Lifespan | >50000H | ||||
Warranty | 3 Years | ||||
Certificate | CE,RoHS | ||||
LED Power | 100W | 150W | 200W | 300W | 400W |
System Power | 106W | 158W | 208W | 310W | 410W |
Rated Voltage | AC90-265V 50-60HZ | ||||
Size of led flood light:
Isolation Diagram/illumination distribution dagram:
led Flood light application:
- Workshops, factories, storehouses
- warehouse,toll stations, gas stations
- supermarkets, exhibition halls,gym,stadium gymnasiums
- and some other places where need industrial lighting.
Pros Light Co.,Ltd is a well established high-tech firm specialized in production, R&D and marketing of led lighting products.
Our main products are led street light, led floodlight, led explosion-proof light, led high bay light, led panel, led spot light, led tube and so on.
For more information about led flood light,500w led flood light,300w led flood light,1000w led flood light,please feel free to contact us
