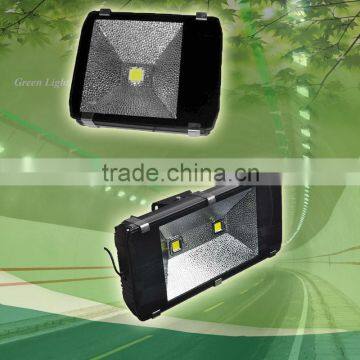

High quality 120w led tunnel light,led tunnel lighting
- shenzhen or HK
- Credit Card
You May Like
-
Ultra slim led flood light,30w led flood light,30w led floodlight
-
100W led flood light,bridgelux led flood light,ip65 led floodlight
-
High quatliy 30 watt led flood light,20 watt led flood light,10 watt led flood light
-
200w LED Outdoor Flood Lamp,LED Floodlight fixture
-
200W Led Flood Light UL Listed
-
Brightest Led Flood Light,Outdoor 50W Led Flood Lighting
Product Details
| LED Light Source | cob led | Input Voltage(V) | 90-265 | |
| Lamp Power(W) | 120 | Lamp Luminous Flux(lm) | 10800 | |
| Lamp Luminous Efficiency(lm/w) | 90 | Color Temperature(CCT) | Other, white/warm white/natural white/pure white | |
| Working Temperature(℃) | -25, 55 | Working Lifetime(Hour) | 50000 | |
| Lamp Body Material | Aluminum | IP Rating | IP65 | |
| Certification | CE, EMC, LVD | Warranty(Year) | 3 | |
| Place of Origin | Guangdong, China | Brand Name | PL-tunnel light | |
| Model Number | PL-TNL120W |
Product Description
High quality 120w led tunnel light,led tunnel lighting
Main Features of led tunnel lighting:
1. Adopting integrated Chip as light source with high lighting efficiency, high CRI(Ra>70),good quality heat dissipation, low light degradation.
2. Aluminium alloy die cast sheel, good strength,high quality heat dissipation.anti corrosion and baking varnish surface,can be for outdoor using.
3. Make a dedicated luminous intensity distribution design via the aluminium reflector,there are two options for lighting distribution,one is for focusing,another is for divergencing.
4. Wide Input Voltage from 90V~264VAC,constant voltage constant current output,can start up at once,no flicker, PFC function available.
Led Tunnel Light Shape Structure & Dimension
Shell Material:Aluminum Alloy
Shell Color:Black
Net Weight:13Kg
Unit:mm
General Characters
Model: | PL-TNL140W | PL-TNL160W |
Dimension: | 600*290*110MM | |
voltage: | 85-265V AC 50~60Hz | |
Power: | 140W | 160W |
Flux: | 11200lm | 12800LM |
LED: | 2pcs 70W COB LED | 2pcs 80W COB LED |
Color temperature: | 2700K-3500K ( Warm White ) | |
4000K-4500K ( Natural White ) | ||
6000K-7000K ( White ) | ||
Power factor | >0.97 | |
Beam angle: | 120° | |
Protection rank: | IP65 | |
Cover: | Aluminum + Tempered glass | |
Material: | Aluminum | |
Work efficiency: | >85% | |
Life span: | 50.000hrs | |
Connect wire | Brown→L Blue→N Yellow or Green→G | |
Other Available Watt:100w/120w/240w/320w
Illumination Distance/illuminance/Irradiated Area:
Attentions:
1. Only professional electrician can install the lamp, please check the lamp very carefully before installation.
2. Please install the lamp follow up the installation procedure, make sure the screw has been wrested very tightly, the wires have been connected properly, .Please operate according to Product Instructions enclosed.
Sloution for Common Fault
1.If the light can not light on, pls. check whether power on or switch on
2.If the light is on or off continuously, pls. check whether the power supply is loose or not touch well, whether the light's connection is well
Note: if all above points still can not make the light work regularly, pls. contact with professional person.
Typical Applications
Buildings, warehouses, street, construction sites, basements, tunnels, stadiums, parking lots, gas stations, billboards, squares, docks, lawn, gardening, design, exhibition hall factory, the factory shops, supermarkets and other light and decorative lighting situations.
Other watt for led tunnel light/lighting:100w/120w/140w/160w/210w/320w/200w:
Accessories for led flood lighting:
rgb floodlight/ultra slim one/12v led flood light
lED tunnel light/120w led tunnel light/led tunnel lghting Packing Dimension:
(L)662*(W) 360*(H) 264mm 1PC/CTN 15Kg
Company Information
Pros Light Co.,Ltd is a well established high-tech firm specialized in production, R&D and marketing of led lighting products.
Our main products are led street light, led floodlight, led explosion-proof light, led high bay light, led panel, led spot light, led tube and so on.
For more information of led tunnel light,led tunnel lighting,led 120w led tunnel light/210w led flood light/320w led floodlight,please feel free to contact us.
IP65/CE/ROHS certificate for led flood lighting
