Home > Products > LED Explosion Proof Light/LED Canopy Light > IP65 high quality 120w explosion proof led lighting

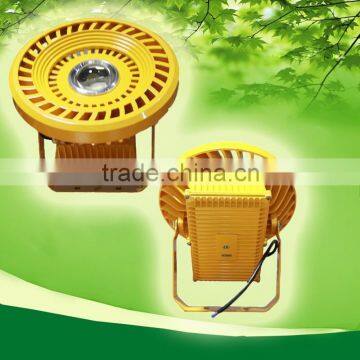

IP65 high quality 120w explosion proof led lighting
- sz
- Credit Card
You May Like
-
200w 150w 100w led explosion-proof high bay light
-
Energy saving explosion proof high bay light,explosion proof led flood light
-
120w led high bay light 5 years warranty with bridgelux chip and meanwell driver
-
100w 120w explosion proof led floodlight with meanwell driver
-
48x3W gas station led canopy lights
-
144x3W IP65 led garage high bay light
Product Details
| LED Light Source | epistar or bridgelux | Warranty(Years) | 3 | |
| Input Voltage(V) | 80-265v ac | Lamp Power(W) | 120 | |
| Lamp Luminous Flux(lm) | 13200 | Lamp Luminous Efficiency(lm/w) | 110 | |
| Color Temperature(CCT) | Other, white/warm white/natural white/pure white | Working Temperature(℃) | -25, 55 | |
| Working Lifetime(Hour) | 50000 | Lamp Body Material | Aluminum | |
| IP Rating | IP65 | Certification | CE, EMC, LVD, UL | |
| Place of Origin | Guangdong, China | Brand Name | PL-explosion lighting | |
| Model Number | PL-FB-120WS |
Product Description
IP65 high quality 120w explosion proof led lighting
Main Features for led explosion proof lighting:
1. It adopts BridgeLux or Epistar LED as light source, long life span, maintenance free.
2. The lamp were made of anti corrosion aluminum alloy body for high durability and to efficiently dissipate heat for prolonged LED life up to 50,000 hours and safer operation in hazardous locations.
3. Anti-static, high explosion-proof degree of flameproof type, dust-proof, waterproof, lens made of bulletproof Acrylic which is thermal resistance, corrosion resistance, and high light transmission.
4. Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.
5.Available in several optional mounting configurations including ceiling mounting, pendant mounting, wall mounting etc. Equipped with adjustable gear that enables the operator to position lamp in any directions
6.The lamp is tested to Ex d II C T6, IP67. It has two explosion proof chambers which increase the safety than the other lamps.
7.Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality, clear lighting effect without a double image.
8. Maintains consistent color over time with good color rendering.
9. Meanwell 5year warranty HLG driver is available.
10. Can be used as explosion floodlight or led canopy light for gas station
General Characters& Dimension for retrofit led canopy light
Item No. | PL-FB-R50WS | PL-FB-R60WS | PL-FB-R80WS | PL-FB-R100WS | PL-FB-R120WS |
Input Voltage | AC90~264V (47~63Hz) | ||||
Power Factor | >0.95 | ||||
Harmonic Distortion | <3% | ||||
Working Voltage | DC 30~36V | ||||
LED Power Consumption | 50W | 60W | 80W | 100W | 120W |
LED Luminous Efficiency | ≥92Lm/W | ||||
Size(A*B) | 236*125mm | 236*125mm | 295*150mm | 295*150mm | 295*150mm |
Lumen | 4500lm | 5400lm | 7200lm | 9000lm | 10800lm |
Effective Illuminated Area | 3M height | 3.2*3.2m2 | |||
6M height | 6*6m2 | ||||
8M height | 8.5*8.5m2 | ||||
10M height | 11*11m2 | ||||
Color | White, warm white | ||||
Color Rendering Index | Ra>80 | ||||
Beam Angle | 60°~140° | ||||
Junction Temperature(TJ) | <65°C | ||||
Ambient temperature | -40°C~60°C | ||||
Environment humidity | 0~100% | ||||
Ex code | Ex d II C T6 | ||||
IP Grade | IP67 | ||||
Working Life | >50000hrs | ||||
Beam Angle | 45°/60°/90°/120°/140° | ||||
Corrosion-proof Grade | WF2 | ||||
Ambient Environment | Temperature: -30°C—55°C; Humidity: 10-90%RH (25°C) | ||||
Storage Temperature | -40°C-60°C | ||||
Installation Height | 4~10m (flood light) / 10~30m (project light) | ||||
Certificate | CE, RoHS, UL | ||||
Lux Diagram
Black/grey color for led explosion proof lighting
Application for explosion proof led lights
Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station, substation, the military base.
More information about led explosion proof light, led explos proof light fixture,explos proof led light,explosion proof led lighting,led anti explosion-proof lightin,please feel free to contact us.
led explosion proof lighting,led anti explosion proof light, explosion proof led lights ,led explosion-proof lighting,led explosion proof lighting fixtures.
| Item | Watt | Weight | Pack | Carton Size |
| PL-FB-R50W-60WS | 50w, 60w | 2.7kg | 1pc per carton | 30x24x16cm |
| PL-FB-R80W-120WS | 80w, 100w, 120w | 6.95kg | 1pc per carton | 34x32x20m |
