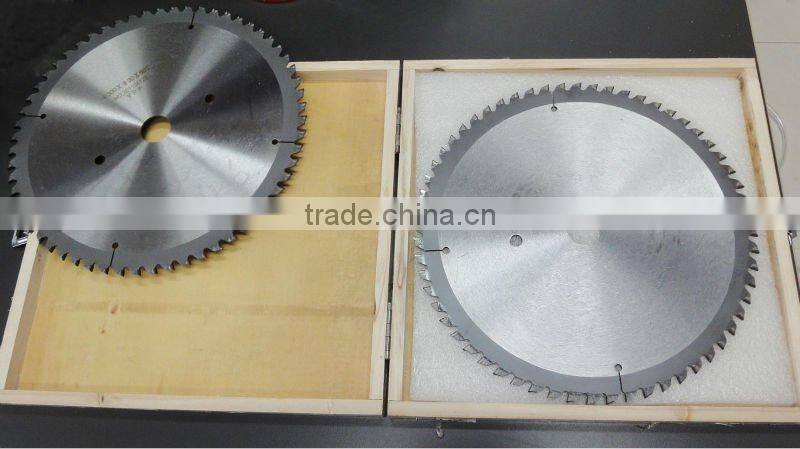

Pcd Saw Blade for Density Board and Wood Board

Place of Origin	Hunan, China		Brand Name	JS
Model Number	JSMD		Blade Material	Diamond
Finishing	Ti-coated		Size	200-860mm

Specifications

1.OEM saw blade
2.good cutting edge.
3.Perfect conquering the problem of hollow cutting
4.long lifetime more than half year

Advantage of pcd saw blade:

Compared to traditional woodworking cutting tools, our polycrystalline diamond (PCD) Woodworking saw blade substantially increased the plate finish and edge straightness. It's excellent wear resistance makes saw blade life longer, meanwhile , reduce the repair times, and improve the productivity.



Features of pcd saw blade :

1. Excellent physical propertie: The tip is of high strength and sharp teeth, not easy to collapse.

2.  Having good quality cutting edge , can enhance the appearance of the wood products.

3. Very wear-resisting,  long working life, can reduce the repairing or re-grinding times, improve production efficiency .



Application of pcd saw blade : for cutting and dividing tubes, drawn products and solid blocks and solid blocks

Machines: single or double miter sews, radial saws.Recommended use with the saw blade over the work piece



Material: Aluminum, brass, copper alloys, plastic, composite materials, melamine and laminated panels



Tips:Saw blades to fit on trim-and mitre saws, table saws and combined joinery machines.It is recommended to use a liquid lubricant.Wax stick for lubrication not recommended







Available size:

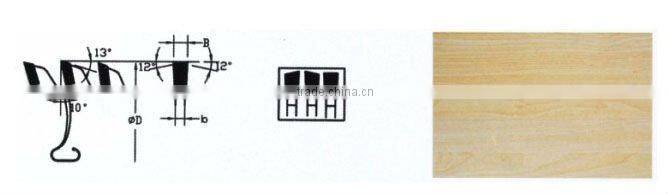

Diameter(D)	Arbor (d)	Segment width(B)	Core (b)	Segment number(Z)
φ860	φ50	7.0		54
φ730	φ80	7.0		60
φ350	φ80	3.5		96
φ300	φ60	3.5		60/96
φ270	φ80	2.2		60
φ250	φ25.4	2.2		60/48
φ200	φ25.4	2.2		60/48

Customized size also can be provided.







TCT saw blade for density board and plywood



1.It is designed for cutting wood construction materials

2.cutting wood functional well

3.price are very competitive for general cutting material







Available size  of TCT saw blade :

Dia(mm)	B(kerf)	Z(teeth no.)	D(bore)mm
125	2.8	24T	25.4
160	3.4	36T	25.4
180	3.4	36T	25.4
250	3	60T	30
250	3	72T	30
250	3	100T	30
250	3	120T	30
300	3.2	48T	30
300	3.2	60T	30
300	3.2	72T	30
300	3.2	96T	30
350	3.5	54T	30
350	3.5	72T	30
350	3.5	80T	30
350	3.5	108T	30
400	3.6	60T	30
400	3.6	72T	30
400	3.6	96T	30
400	3.6	120T	30
450	4	72T	30
450	4	96T	30
500	4.2	60T	30
500	4.2	120T	30



Segment:
