Zmodo 8CH DVR IR Outdoor Camera Surveillance Equipment
- 300000 Set / Sets per Month
- T/T Credit Card
You May Like
Product Details
Place of Origin | Guangdong, China | Brand Name | ZMODO | |
Model Number | KDS8-BARAZ8ZP |
Product Description
Specifications
* Up to 30' IR night vision* Waterproof Video Camera
* Linux Based OS
* IR Remote Control
* One Year Warranty

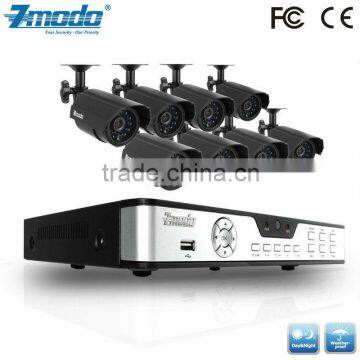

This kit with a 8ch dvr and 8 video cameras is a good choice for home or small business use.
View Online or From Smartphone
This system allows you to view your footage, no matter the time or location. Access your DVR’s footage over the internet, or directly from yourAndroid™ , Symbian™ , Windows Mobile® , ipad®ios &iPhone® .
Advanced Motion Activated Recording
The motion detection options allow you to record only when motion is detected to save hard drive space without missing important events. You can even ensure that false alarms are avoided by setting the motion detection “mask” to block areas with constant movement.
Instant Email Alerts if Activity Detected
This system is designed to send an email alert, complete with photo of the activity, if any motion is detected, or if any camera experiences video loss.
Easy USB Backup
A Built-in USB port gives you the option of backing up and transferring your video footage with a USB flash drive.
Weatherproof Housing
Each camera is constructed utilizing professional grade materials for the housing and a sunshade to help prevent glare, deterioration, and rusting. The cameras can be mounted in virtually any indoor or outdoor setting
See Day or Night with Infrared Vision
Each camera comes equipped with night vision, allowing you to see any monitored area up to 30ft away in total darkness. The 11 infrared LEDs activate automatically when it becomes dark and deactivate during the day to save energy.
Model | DVR-H9108V-StandAlone cctv DVR |
Video Compression | H.264 |
Operation System | Linux Based |
Video System | NTSC / PAL |
Video Input / Output | BNC 8-Channel Input / 2-Channel Output |
Other Video Output | VGA |
Audio Input / Output | RCA 1-Channel Input / 1-Channel Output |
Display Frame Rate | NTSC: 240 fps @ D1 / PAL: 200 fps @ D1 |
Display Resolution | NTSC: D1 (704 x 480)/ PAL: D1 (704 x 576) |
Recording Frame Rate | NTSC: 240 fps @ CIF / PAL: 200 fps @ CIF |
Record Resolution | Selectable: NTSC: D1(704 x 480); HD1(704 x 240); CIF (352 x 240) / PAL: D1(704 x 576); HD1(704 x 288); CIF (352 x 288) |
Record Mode | Continuous / Time Schedule / Motion Detection |
Recording Pack Time | 15/30/45/60mins Selectable |
Simplex / Duplex /Triplex / Pentaplex | Pentaplex |
Network Function | Support Live View with IE & Mobile Phone |
Network | RJ45, 10M/100M |
Net Protocol | TCP/IP, PPPoE, DHCP and DDNS |
Remote Access | LAN or Internet Browsing |
PTZ Control | RS-485 |
HDD Interface | SATA, Support up to 2TB |
USB | USB Backup/USB 2.0 |
Remote Control | IR Remote Control |
Dimension | 300mm (W) x 209mm (D) x 47mm (H) |
Model | CM-C11306BK- Color IR Bullet Outdoor Home Security Camera |
Image Sensor | 1/4" Color CMOS |
TV System | NTSC/PAL |
Effective Pixels | PAL: 512H×582V NTSC: 512H×492V |
Horizontal Resolution | 420 TV-Lines |
Lens | 6mm |
Number of IR LEDs | 11 LEDs |
Infrared Illumination (Night Vision) | up to 30ft |
Minimum Illumination | 0.0 Lux |
S/N Ratio | > 45.6dB |
Video Output | 1.0Vp-p, 75ohms |
Weatherproof | Yes |
Operating Temperature | -10°C~60°C |
Power | 12V DC |
Dimensions (W x D x H) | 7.2" x 3.34" x 3.34" |
Gross Weight | 0.48 lbs |
Material | Metal Shell |
