Product Details
| Type | Semi-Trailer | Material | Other, Steel, Carbon Steel, Q235/Q345/610L/Q700, Stainless steel, Alloy steel | |
| Certification | CE | Size | 11700X2496X | |
| OEM No. | CLW9402bgy | Max Payload | 15t | |
| Place of Origin | Hubei, China | Brand Name | Chengli special automobile | |
| Model Number | CLW9402BGT |
Product Description

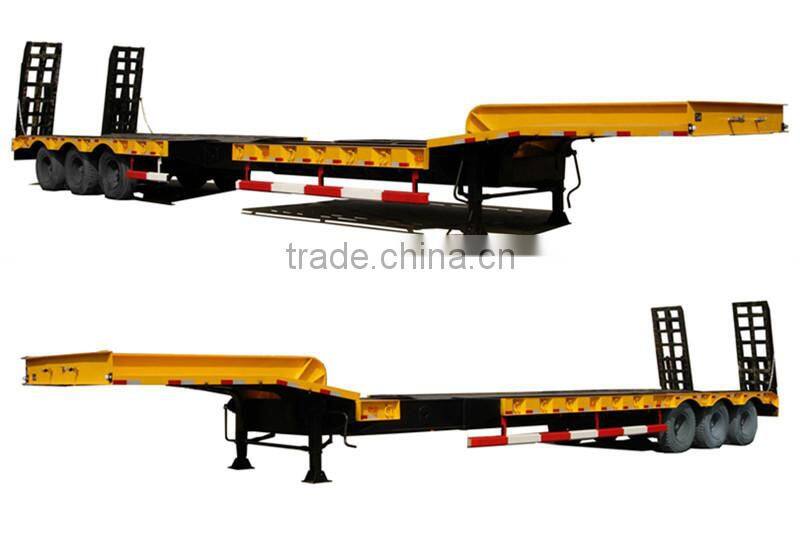

3 Axle Low-Bed Semi-Trailer for Sale

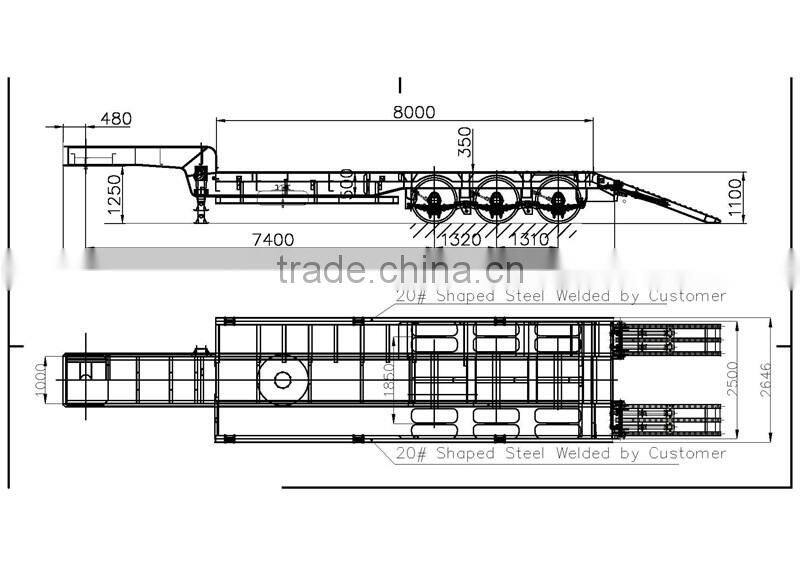

Technique Parameters
DIMENSIONS | ||
Tare Weight | 11500kg | |
Overall Length | 11700mm | |
Overall Width | 2480mm | |
Payload | 50000kg | |
Work deck length: | 8000mm | |
Work deck Height: | 1200mm | |
SPECIFICATIONS | ||
I Beam& Chassis | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. Top Flange 18mm,width 140mm; Middle Flange 8mm,Height 500mm, Bottom Flange 20mm,width 140mm. | |
Axle | 3 axles | |
12 ton capacity | ||
Suspension | Heavy duty mechanical slung suspension | |
Floor | 3mm checker plate | |
Leaf Spring | 8 piece Leaf spring | |
King Pin | JOST brand 2” Bolt-in King Pin | |
Landing Gear | JOST brand Two-speed, manual operating, heavy duty landing gear | |
Wheel Rim | 8.25-22.5 wheel rim 13 pieces | |
Tire | 11R22.5 tire with one spare tire , 13 pieces | |
Ramp | Mechanical ramp with spring | |
Spare Tire | One set of spare tire including a carrier | |
Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks | |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint | |
Accessories | One standard tool box | |
