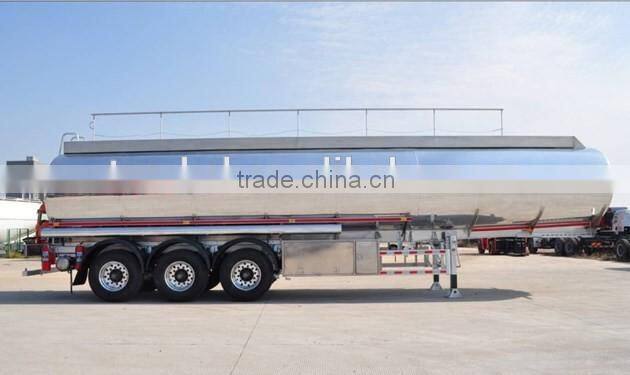

Hot Sale Fuel Tanker Semi Trailer for Sale 30000 Liters Fuel Tank Semi Trailer

                                    Main Dimensions

Overall Length

11800mm

Overall Width

2500mm

Overall Height

3600mm

Tare Weight

Approximate 6500KGS

Loading Capacity

42m3

Tank Body

Shape

Mono block Cylinder

Total Volume(m³)

42CBM

Tanker Body Material

5mm Aluminum Alloy ASTM B-209 5454/H32(shiny aluminum sheet)

End plate

5mm Aluminium Alloy ASTM B-209 5454/H32(shiny aluminum sheet)

Lifting Ladder

IncludingTop walkway and backside Aluminum material

Manhole cover

Aluminum alloy API manhole cover with oil and gas recovery system, 500mm ,2 sets with 2 breather valves.

Bottom Valve

1 sets of Pneumatic Bottom Valve,Pneumatic control

Discharging valve

1 set 100mm discharging valves, API standard

No.of Compartment

1

Discharging Pipe

4”rubber hose, 2 pc, 6m long

Trailer

Main Beams

Special design I beam, Aluminum Saddle support 7 No’s each side.

Axle

3 axles

BPW 13 Ton

Landing Gear

JOST brand C200,Two-speed, manual operating, heavy duty landing gear

King Pin

JOST brand 2” bolt-in king pin

Suspension

Full set of BPW brand Air bag suspension

Pneumatic Braking System

WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; 45L air tanks.

Wheel rim

11.75-22.5 Aluminum Alloy rim, Taiwan FCT brand,7 pieces including one spare

Tire

385/65R22.5 tubeless tire with one spare tire, 7 pieces, Triangle Brand

ABS System

Fitted with 4s/2m Type (WABCO ,German brand)

Other Design and parts

1.Vapor recovery system.

2.Dust Board to Cover the Tires

3.Rear and side lights.

4.Rear Ladder to access the top of the tanker.

5.Aluminum Crown to whole length of Tank.

6.Walkway with foldable handrail. (air operated)

7.Tool Box 120cm (Without Tools).

8.Double Spare Tire Carrier (Winch Type).

9.Water tank, European type.

10. 4 No’s of fire extinguisher holder.

11. 2 No’s of Manhole

12. Overfill prevention sensor/Overfill prevention socket.

13. Vapor adapter/Vapor vent valve/API loading and unloading valve
