Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | Zhejiang, China | |
| Brand Name | Kaishan | Model Number | KW20 | |
| Usage | Water Well | Voltage | Diesel Engine Driven | |
| Power(W) | 92kw | Dimension(L*W*H) | 5100X2300X2850mm | |
| Weight | 8500kg | Certification | ISO9001:2008, GC, QAC | |
| Warranty | One Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Kaishan Good Price High Torque Rotating Water Well Drilling Rig Drilling Machine
Features of water well drilling rig drilling machine
1. Water well drilling rig drilling machine is with safe and stable travelling system, centralized operating system, powerful rotating system.
2. Water well drilling rig drilling machine is easy to operate and with high working efficiency.
3. Water well drilling rig drilling machine is small and light, so easy to install and smoothly moving in different landforms.
4. Water well drilling rig drilling machine is a multi-functional machine widely used in drilling wells, agricultural irrigation well, geothermal borehole and other kinds of wells.
5. Water well drilling rig drilling machine works well in mountainous area and lithostratigraphy.
6. Water well drilling rig drilling machine adopts new hydraulic technology and high torque rotating for pushing.
Advantage of water well drilling rig drilling machine
1. Water well drilling rig drilling machine is with low gravity and perfect ground clearance makes the drilling work going smoothly on the rugged road.
2. Water well drilling rig drilling machine has automatic balance system to reduce the damage and ensure the safe driving.
3. Two levels intake air filter and air compressor prolong the service life of diesel engine.
4. Unique pump group design and convenient maintenance reduce the maintenance cost.
5. Dedicated crawler chassis is used to improve cross-country performance.
6. The machine can be installed on the truck owning to the independent module design which increases its mobility.

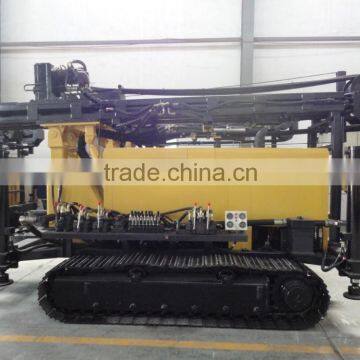

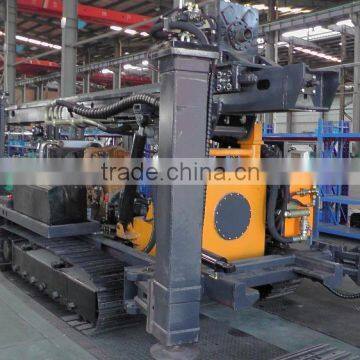

KW20 water well drilling rig drilling machine
Drilling Hole Diameter | 115-254mm |
Drilling Depth | 200m |
Travelling Speed | 0-2.5km/h |
Rotation Speed | 60-105r/min |
Rotation Torque | 4000N.m |
Max. Feed Force | 45000N |
Max. Hoise Force | 95000N |
Push Way | Cylinder. Chain |
Feed Stroke | 4500mm |
Climb Capacity | 25° |
Ground Clearance | 280mm |
Jacket Stroke | 1000mm |
Weight | 8500kg |
Dimension | 5100X2300X2850mm |
Engine Model | YC6B125-K10 |
Power | 92kw |
Working Pressure | 10.5-24.6Bar |
Air Consumption | 20-45 m³/min |
Working Condition | |
Hammer | HD65/HD55 |
Rod | Φ89X3000mm |
Bit | Φ135-Φ254 |
Recommended Air Compressor | LGCY27/20-LGCY39/25 |
Matched Air Compressor
Zhejiang Kaishi Machinery Co., Ltd. located in Quzhou City, Zhejiang Province. Our company has many years manufacturing experience in field of air compressors and drilling rig machines. We bring in advanced technology from abroad to meet different requirements of customers. We are the biggest supplier providing the best prices and quality!
The main products manufactured by our company are more than 20 kinds including piston air compressor, screw air compressor, drilling rig machine, drill bits ,drill rod, DTH, air pick, rock drill, down the hole drills, small mining piston air compressor, chiller air compressor, concrete spraying machine, etc. Meanwhile, we have the right to import and export.
We have a board market in Southeast Asia, South America, Africa and many other countries. Good service and high quality help us gain recognition from users at home and abroad.
We have ISO9001: 2008 quality Certification. We look forward to establish a long-term cooperation relationship for our common development. If you are interested in our products, please visit our website or contact us.
