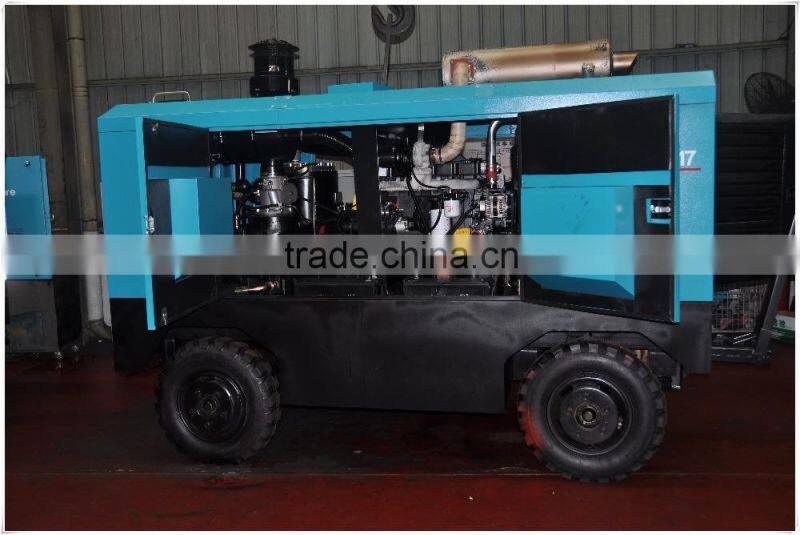

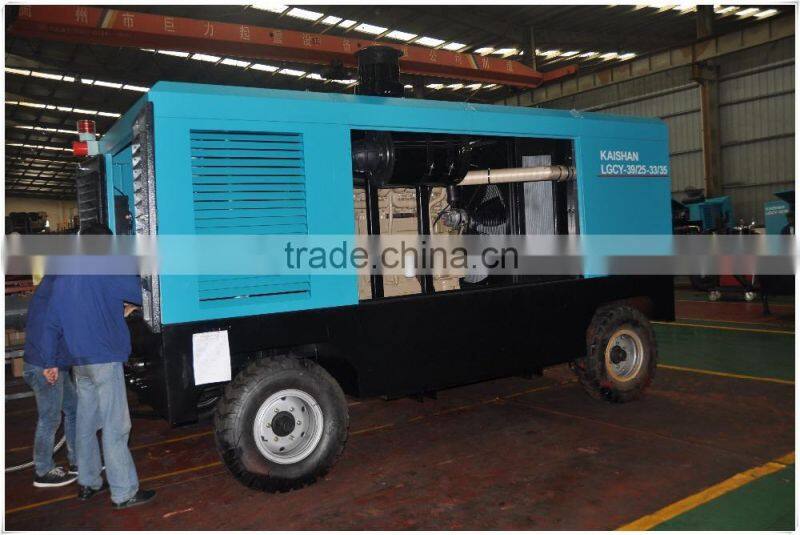

LGCY Series Portable Diesel Screw Air Compressor

Parameters of Portable Screw Air Compressors (Diesel power series)

Model

Discharge pressure

(m³/min)

Displacement
(MPa)

Supporting diesel engine model, rated power/rated rotational speed (kW)

Dimensions
(mm)

*LGCY-6/7

6

0.7

YCD4B22-95

3,750×1,920×1,700

*LGCY-7.5/7

7.5

0.7

YC4D80-K20

3,900×1,920×1,700

*LGCY-9/7

9

0.7

YC4D95Z-K20

3,900×1,920×1,700

*LGCY-10/7

10

0.7

YC4D95Z-K20

3,900×1,920×1,700

*LGCY-10/10

10

1

4BTA3.9-C125

3,900×1,920×1,900

*LGCY-8.5/14

8.5

1.4

4BTA3.9-C125

3,900×1,920×1,900

*LGCY-12/7

12

0.7

4BTA3.9-C125

3,900×1,980×1,900

*LGCY-12/7A

12

0.7

YC4A125Z-T21

4,000×1,980×1,900

*LGCY-9/14

9

1.4

YC6B150Z-K20

4,080×1,980×2,350

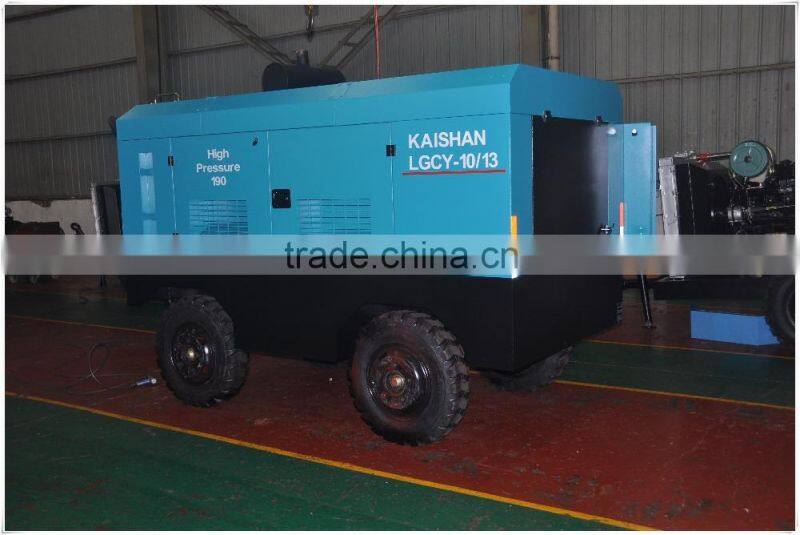

*LGCY-10/13

10

1.3

YC6B150Z-K20

4,080×1,980×2,350

*LGCY-12/10

12

1

YC6B150Z-K20

4,080×1,980×2,350

*LGCY-12/10Q

12

1

QC6108ZG

4,080×1,980×2,350

*LGCY-12/12

12

1.2

EQ6BT5.9-C160

4,080×1,980×2,350

*LGCY-12/13

12

1.3

6BTA5.9-C180

4,080×1,980×2,350

LGCY-13/13

13

1.3

6BTA5.9-C180

3,450×1,520×2,220

LGCY-13/13A

13

1.3

YC6A180Z-T21

3,450×1,520×2,220

LGCY-15/13

15

1.3

WD415.23

3,380×1,650×2,500

LGCY-15/13A

15

1.3

YC6A240-20

3,380×1,650×2,500

LGCY-17/7

17

0.7

6BTA5.9-C180

3,380×1,640×2,350

LGCY-13/17

13

1.7

6CTA8.3-C215

3,780×1,980×2,350

LGCY-16/13

16

1.3

6CTA8.3-C215

3,980×1,800×2,450

LGCY-17/14.5

17

1.45

6CTA8.3-C260

3,980×1,800×2,450

LGCY-18/17

18

1.7

6CTA8.3-C260

3,980×1,800×2,450

LGCY-22/8

22

0.8

6CTA8.3-C260

4,580×1,950×2,600

LGCY-22/14

22

1.4

YC6M340L-K20

4,580×1,950×2,600

LGCY-22/14K

22

1.4

6LTAA8.9-C325

4,580×1,950×2,600

LGCY-27/10

27

1

YC6M340L-K20

4,600×1,950×2,850

LGCY-32/10

32

1

YC6M395L-K20

4,600×1,950×2,850

KSCY-14/12 (Ultra quiet)

14

1.2

6BTA5.9-C180

3,980×1,800×2,100

LGCY-19.5/19

19.5

1.9

6CTA8.3-C260

3,980×1,800×2,650

LGCY-19.5/19A

19.5

1.9

YC6M260L-K20

3,980×1,800×2,650

LGCY-22/20 (Cummins)

22

2

6LTAA8.9-C325

4,600×1,950×2,850

LGCY-22/20 (Yuchai)

22

2

YC6M340L-K20

4,600×1,950×2,850

LGCY-26/20 (Cummins)

26

2

6LTAA8.9-C360

4,600×1,950×2,850

LGCY-27/20 (Yuchai)

27

2

YC6M395L-K20

4,600×1,950×2,850

LGCY-27/22 (Chongqing Cummins)

27

2.2

NTA855-P400

4,600×1,950×2,850

LGCY-30/17 (Yuchai)

30

1.7

YC6M395L-K20

4,600×1,950×2,850

LGCY-33/25 (Cummins)

33

2.5

QSZ13-C550

4,700×2,100×2,850

LGCY-33/25 (Yuchai)

33

2.5

YC6K550L

4,700×2,100×2,850

Note: * represents two-stage models, and the drawbar is included in the model’s length.
