EK 15w High Power Car Led Drl Light, Mazda 6 Drl

Specifications

mazda 6 drl

  18 month warranty

Based on EK Daytime running light's top quality, we can supply 18 month as warranty, you just need cut the wire down, and we will send new product as replacement, while most of factory can not supply wararnty with their poor quality.

  Main function

1. Durable high temperature, strong brightness, long life-span LED ;

2. Good waterproof, IP65;

3. Strong EMC function, deduct the disturbance of car computer system;

4. Lighting automatically, turn on while starting the engine, turn off while close it;

5. LED DRL will be in dark light while turn on the headlamp;

6. There is warning function while opening and closing lock, opening and closing door;

7. Synchronization function with turning light and warning light, improve warning effect, more safe on driving;

8. Delay closing light, which is convenient for going back;

9. Suitable for together positive and together negative car installation .

10 .Be up to ECER87 standard .

  Content of the daytime running light kit

•  two LED lights ( left light – L, right light – R )

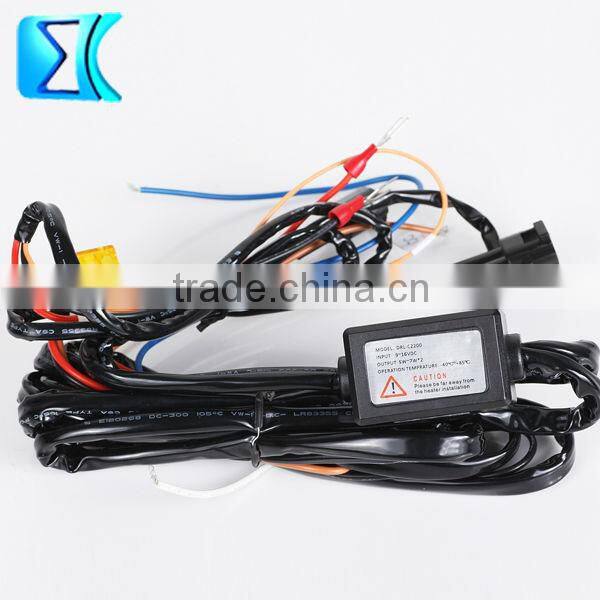

•  set control wire harness

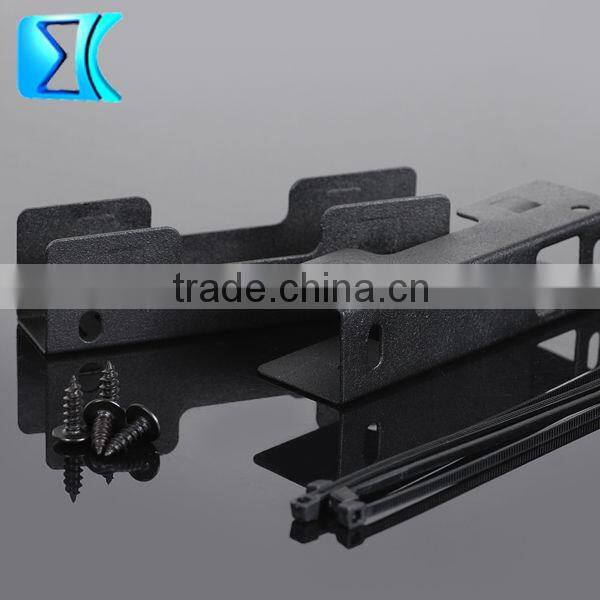

•  pcs fixing brackets
•  pcs installation screws
•  set M6 x 16mm and nut
•  pcs 4 x 20 nylon belts
•  sets fast connecting nips

  Technical Parameters

• Working voltage:DC  9-16V
• Output power:2X7.5W
• Output Lumen:900LM
• Working temperature:-40°C—+85°C
• Color temperature:6000K±1000K
• Size:185mm x 48mm x 26 mm

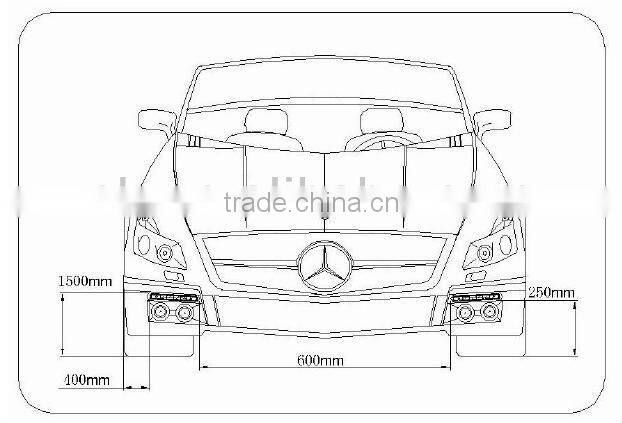

  The Dimension

EK-DRL01HP LED daytime running light

WITH E4/ R87 CERTIFICATION fit for the rounds head cars

2. We build voltage protect resistor inside every DRL, in order to protect the leds not to be damanged by car current when engine starts everytime.

3. Any color is avaliable. You only need to let us know, we can make OEM color for you.

4. 24V DRL is avaliable too, so you can sell to truck market.

5. open circut protection is builded inside the DRL, so even customers connect negative and positive in wrong way, the DRL will stay safety, instead of burned immediately.

6. Japanese made resistors and capacitors are used for our DRL, which will have much better themal for LED itself. LEDS will stay cool situation and longer life spam with NONE color fading.

7. radio interference warning canceller is build inside, so there is no canbus problem or radio interference after installing.

8. OEM design is welcome. You will only need to supply design graphic or sample, we will make for you only with your brand name if needed.

9. Compare DRLs from another company , Our DRLs are designed not only waterproof but also corrosion , Silicone water-proof ring& All the stainless srews all make DRLs more longer time & best performance

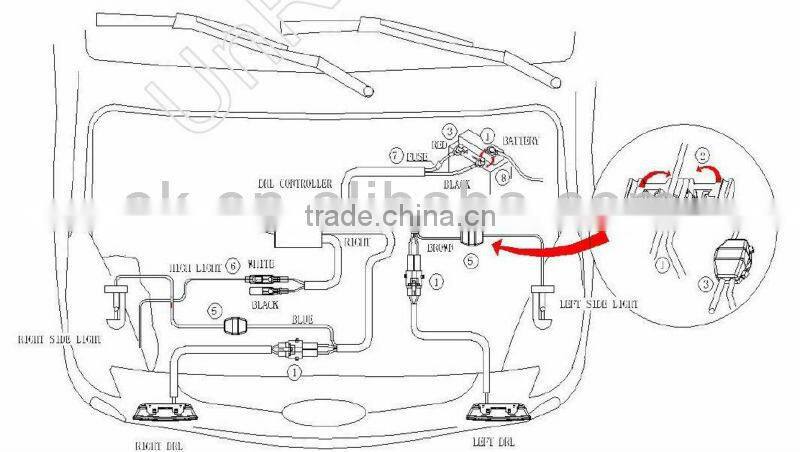

  How to install DRL
