Byrun Brand Centrifugal Mine Pump

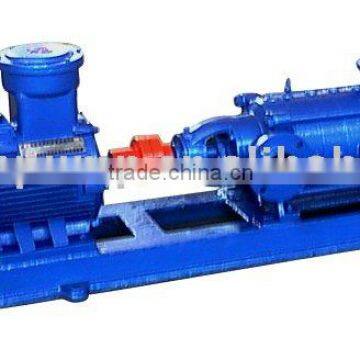

D series horizontal multi-stage centrifugal pump

D series, DF series, DY series horizontal single suction multi-stage centrifugal pump adopt high efficiency and energy-saving hydraulic model, it is high efficiency, wide abilities, safe and stable and low noise, long life time and easy installation and reparation.

It can be applied to transport water without particles, floating material, or the liquid with similar physical and chemical characteristics as water. The pump also can be applied in transporting hot water, oil, corrosive medium and medium containing particles, etc.

Horizontal multi-stage centrifugal pump have below series according to applied scope:

1. D series:
D series pump is used to transport water without particles, the temperature lower than 80°C or liquids with similar physical and chemical characteristics as water. It is available for the application in water supply and drainage in factory, city and mine industry.

2. DF series:
DF series pump transport corrosive liquids without particles and the temperature between -20°C to 105°C. The inlet pressure is lower than 0.6Mpa. Customers could select material, seal type, structure and motor capacity according to the medium, density, medium gravity, applied temperature and inlet pressure.

3. DY series:
DY series pump transport oil and petroleum products without particles, the temperature between -20°C to 105°C, viscosity lower than 120Cp.

4. MD series (or DM series):
MD series (or DM series) pump transport the mine water or similar dirty water with particles not more than 1.5%, particle size not more than 0.5mm, the temperature between -20°C to 80°C.
