Product Details
| Place of Origin | Guangdong, China | Brand Name | YL | |
| Model Number | SMD 3225 |
cTaped, PET PVC,with  desiccant,packaged in case and in wooden case for exportation.
We are the biggest manufacturer of SMD quartz crystal oscillator and resonator in China mainland. Failong Crystal has passed international ISO9001 quality management system certification, TS16949 certification in automobile industry, international ISO14001 enviromentmanagement certification, QC080000 IECQ HSPM and SGS CE ROHS, established CPK surveillance system in the production management procedure.
Product Description
ceramic crystal resonators 2016 automotive cristal piezo resonators
Radio communication, audio-visual equipment, office automation equipment, consumer product,etc

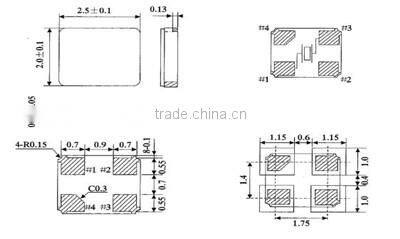

Dimension and Land pattern (unit: mm)
Frequency range & equivalent series resistance
Frequency range  | See table 1  |
Vibration mode  | AT cut: fuandamental. third  |
Frequency tolerance at 25℃  | ±10, ±15, ±20, ±30, ±50ppm  |
Operating temperature range and frequency stability  | See table 2  |
Equivalent series resistance  | See table 1  |
Shunt capacitance  | 5.0pF max or special  |
Measure instrument  | S&A 250B PI system  |
Load capacitance  | Series8, 16, 20, 30pF or special  |
Drive level  | 10, 100, 300uW or special  |
Insulation resistance  | 500 M Ω min/DC 100V  |
Aging  | ±1, 3, 5 ppm/year  |
Storage temperature range  | -40~+85℃  |
Table 1 Operating temperature range and frequency stability
Frequency(MHz)  | Vibration mode  | SX-3225(Ω)  |
12.0~14.9  | Fundamental/F  | 80  |
15.0~50.0  | Fundamental/F  | 50  |
Table 2   Operating temperature range and frequency stability
PPM TEMP  | ±5  | ±10  | ±20  | ±30  | ±50  |
0~+50℃  | √  | √  | √  | √  | √  |
-10~+60℃  |   √  | √  | √  | √  | √  |
-20~+70℃  |
  | √  | √  | √  | √  |
-30~+80℃  |
  |  √  | √  | √  | √  |
-40~+90℃  |
  |   √  | √  | √  | √  |
SMD   process flow

DIP  process flow

Blank process flow
